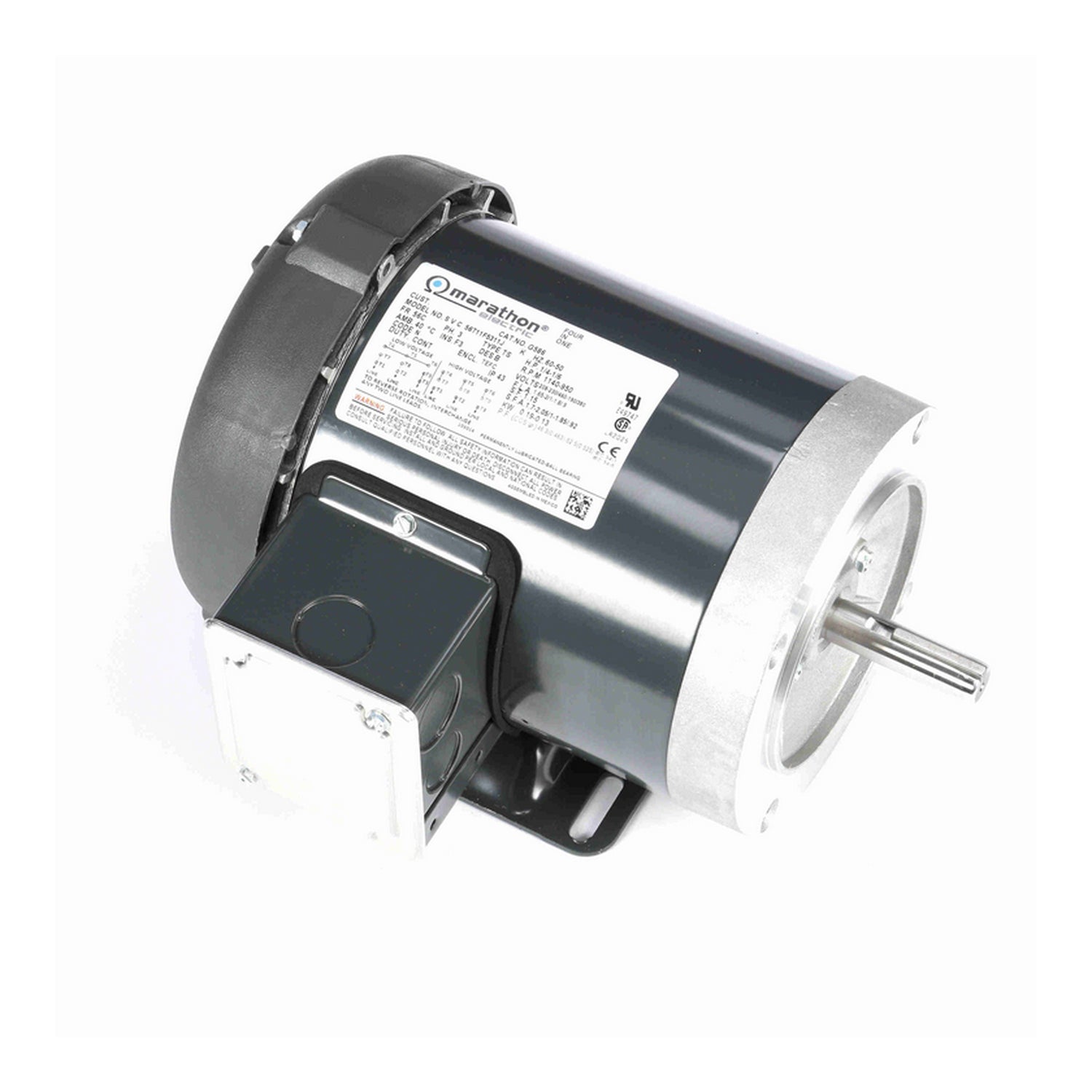

G586, 0.25 Hp/0.17Hp, 1200 / 1000 RPM, 208‑230/460 V @ 60 Hz / 190/380 V @ 50 Hz, TEFC, Frame 56C, 056T11F5311

This general-purpose three-phase AC motor is designed for standard industrial applications, offering dual-frequency and dual-voltage operation in a compact 56C frame with totally enclosed fan-cooled construction.

KEY FEATURES

• Model: 056T11F5311

• Product Type: General Purpose Motor

• Horsepower: 0.25 Hp (0.19 kW) @ 60 Hz / 0.17 Hp (0.13 kW) @ 50 Hz

• Voltage: 208‑230/460 V @ 60 Hz / 190/380 V @ 50 Hz – 3 Phase

• Speed: 1200 RPM @ 60 Hz / 1000 RPM @ 50 Hz

• Frame: 56C

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Service Factor: 1.15 @ 60 Hz / 1.15 @ 50 Hz

• Efficiency: 52.5 % @ 60 Hz / 51 % @ 50 Hz

• Power Factor: 46.3 %

• Current: 1.65‑2/1 A @ 60 Hz / 1.8/.9 A @ 50 Hz

• Duty: Continuous

• Insulation Class: F

• Thermal Protection: No Protection

• Design Code: B – KVA Code N

• Mounting: C‑Face – Removable Base (F1 only)

• Shaft: NEMA 56 – 0.625" Diameter

• Bearings: Ball Bearings (6203 DE & 6203 ODE)

• Frame Material: Rolled Steel

• Rotation: Reversible

• Number of Speeds: 1

• IP Code: IP43

• Certifications: UL Recognized, CSA, CE

• Ambient Rating: 40 °C

• Mounting Orientation: Horizontal or Up or Down

• Starting Method: Across The Line

• Electrical Type: Squirrel Cage Induction Run

• Poles: 6

• Thermal Resistance (Main): 18 Ohms

• Weight (Packaged): 20.00 LB

• Package Length: 16.38 in

• Package Width: 10.50 in

• Package Height: 8.12 in

• Country of Origin: Mexico

• HTC: 8501.51.4040

The motor’s dual-voltage and dual-frequency compatibility make it adaptable to diverse power environments, while the TEFC enclosure and ball-bearing construction ensure reliable performance in demanding industrial settings.
