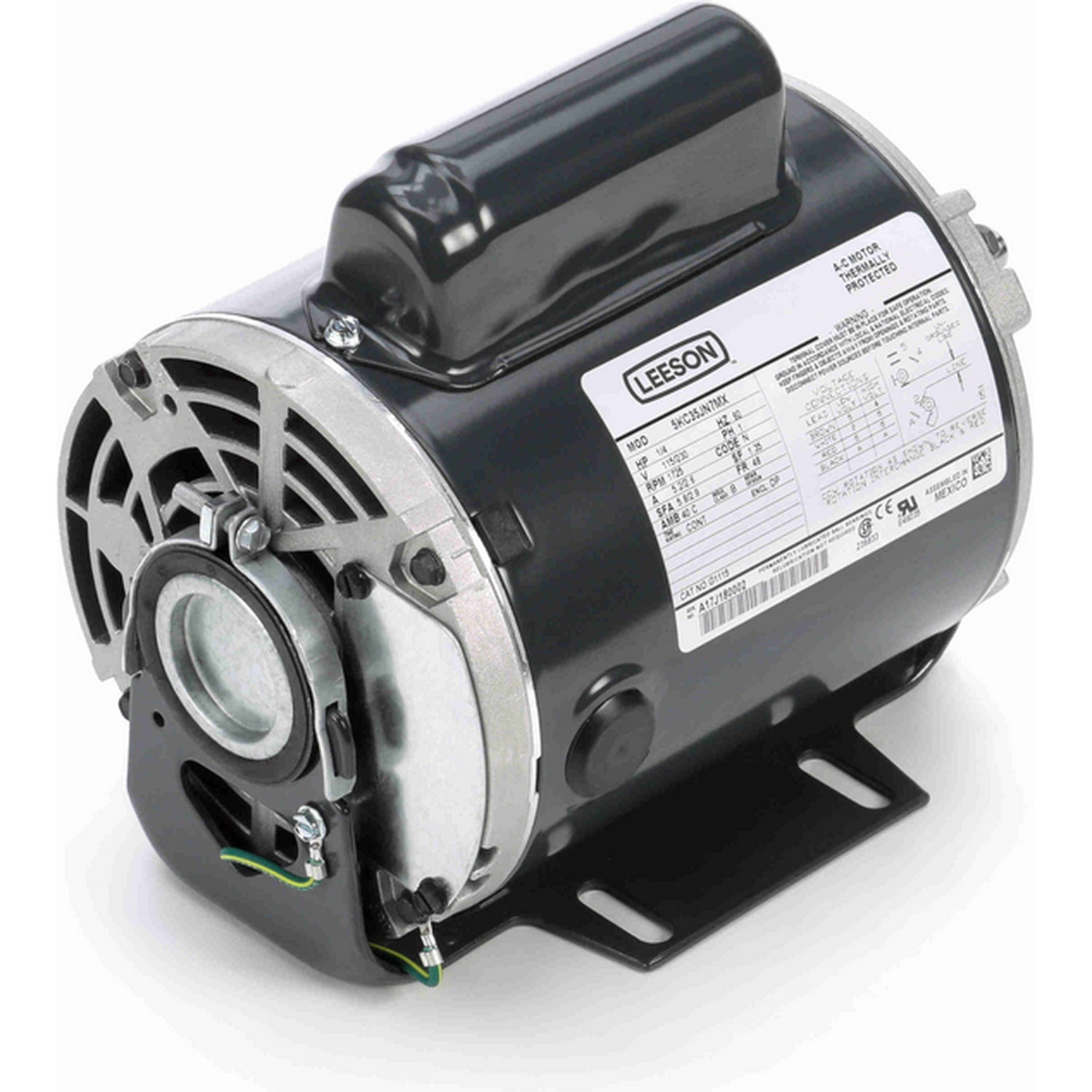

G1115, 0.25Hp, 1725 RPM, 115/230 V, 1 Ph, 60 Hz, Open Drip Proof, Frame 48, 5KC35JN7X

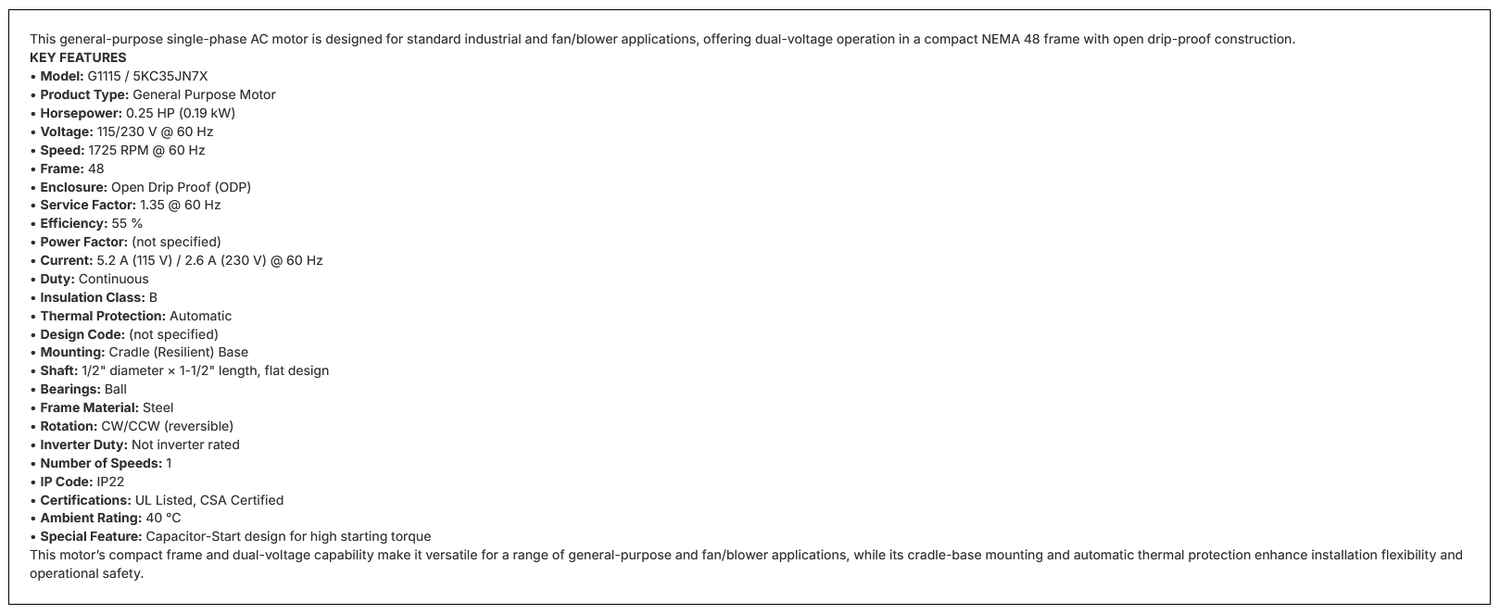

This general‑purpose single‑phase AC motor is designed for standard industrial and fan/blower applications, offering dual‑voltage operation in a compact NEMA 48 frame with open drip‑proof construction.

Replace : G1114, 5KC35JN7, 5KC35JN7M, B312, 048C17D2041, B313, 48C17D2042P, 048C17D2042

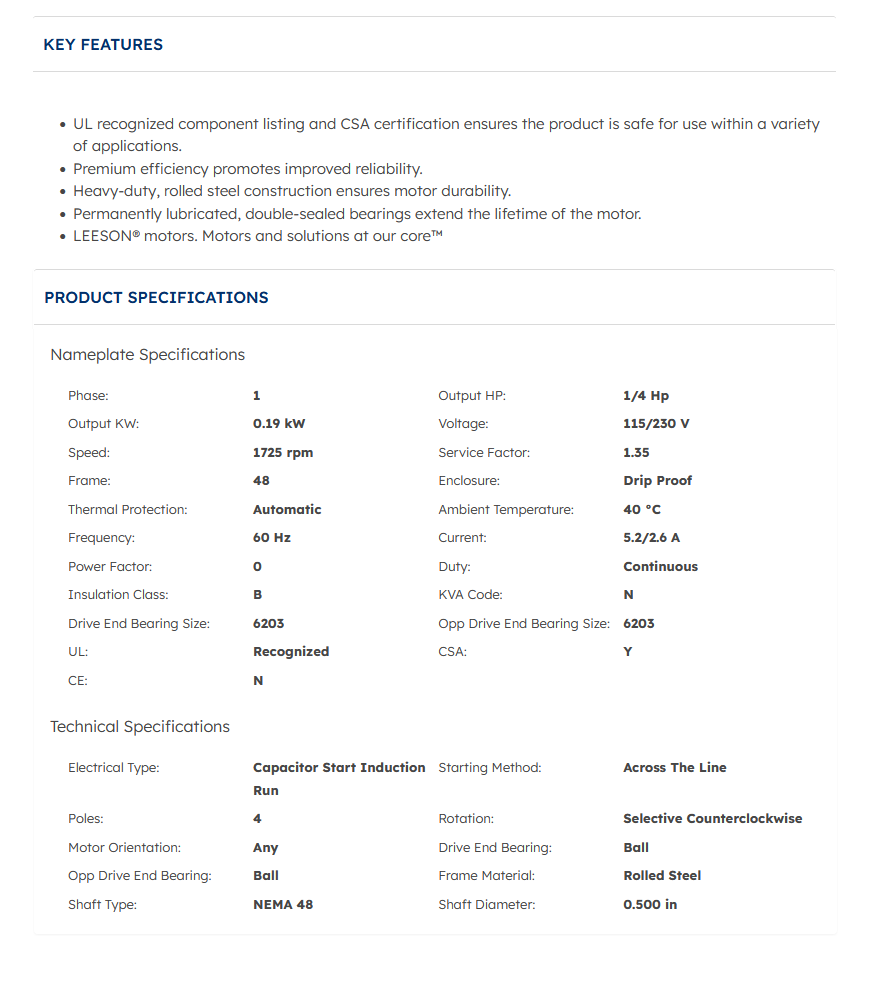

KEY FEATURES

• Model: G1115 / 5KC35JN7X

• Product Type: General Purpose Motor

• Horsepower: 0.25 HP (0.19 kW)

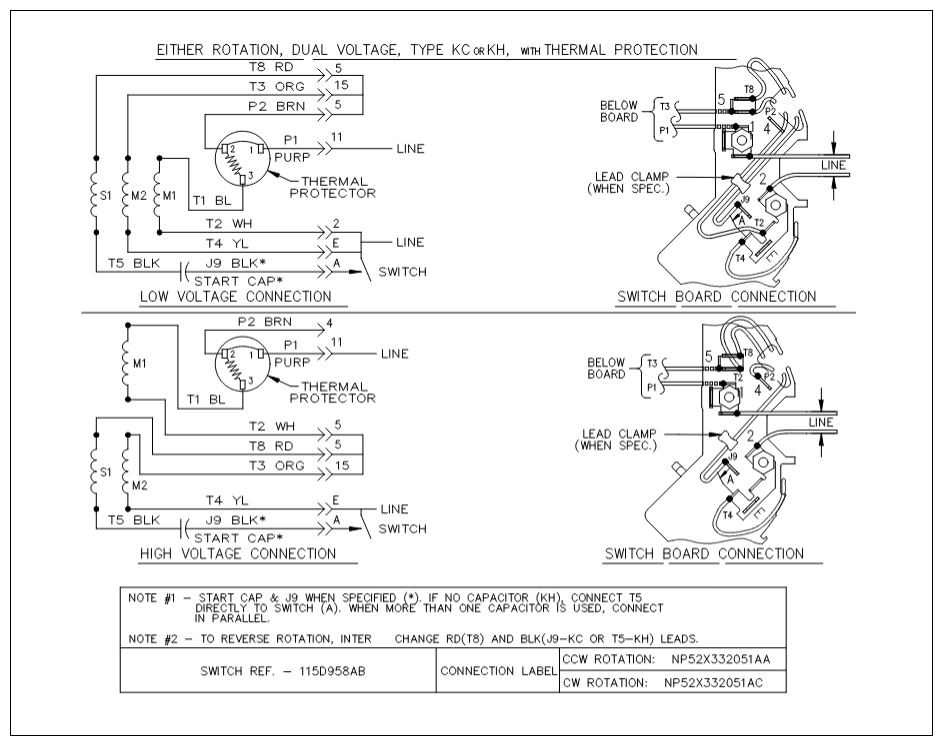

• Voltage: 115/230 V @ 60 Hz

• Speed: 1725 RPM @ 60 Hz

• Frame: 48

• Enclosure: Open Drip Proof (ODP)

• Service Factor: 1.35 @ 60 Hz

• Efficiency: 55 %

• Power Factor: (not specified)

• Current: 5.2 A (115 V) / 2.6 A (230 V) @ 60 Hz

• Duty: Continuous

• Insulation Class: B

• Thermal Protection: Automatic

• Mounting: Cradle (Resilient) Base

• Shaft: 1/2" diameter × 1‑1/2" length, flat design

• Bearings: Ball

• Frame Material: Steel

• Rotation: CW/CCW (reversible)

• Inverter Duty: Not inverter rated

• Number of Speeds: 1

• IP Code: IP22

• Certifications: UL Listed, CSA Certified

• Ambient Rating: 40 °C

• Special Feature: Capacitor‑Start design for high starting torque

This motor’s compact frame and dual‑voltage capability make it versatile for a range of general‑purpose and fan/blower applications, while its cradle‑base mounting and automatic thermal protection enhance installation flexibility and operational safety.
