FX32BK004, 1.5Hp, 1725/1425RPM, 208‑230/460V @ 60Hz / 190/380V @ 50Hz, 3Ph, TEFC, Frame 56HC, 056T17F15954

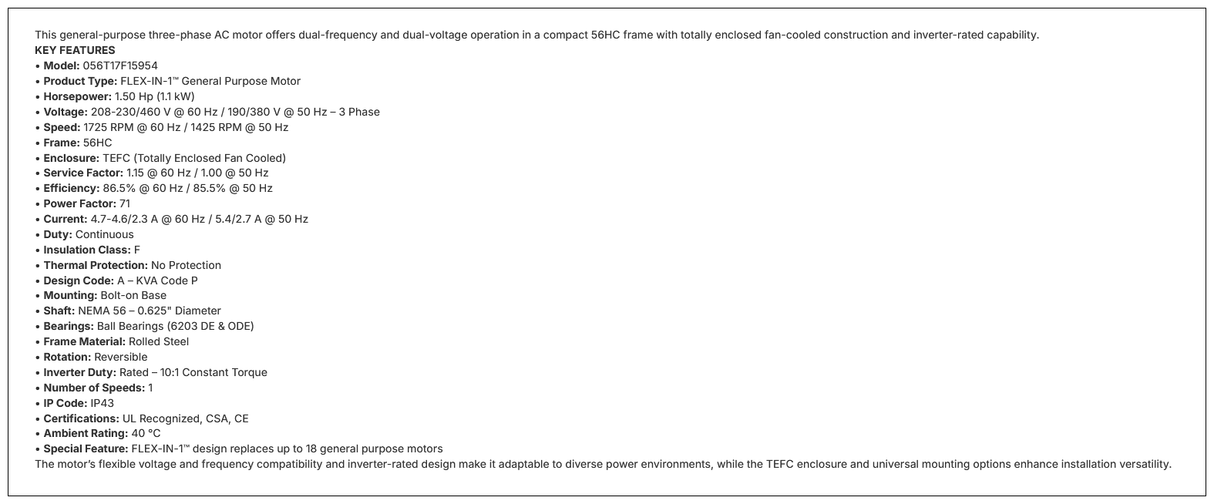

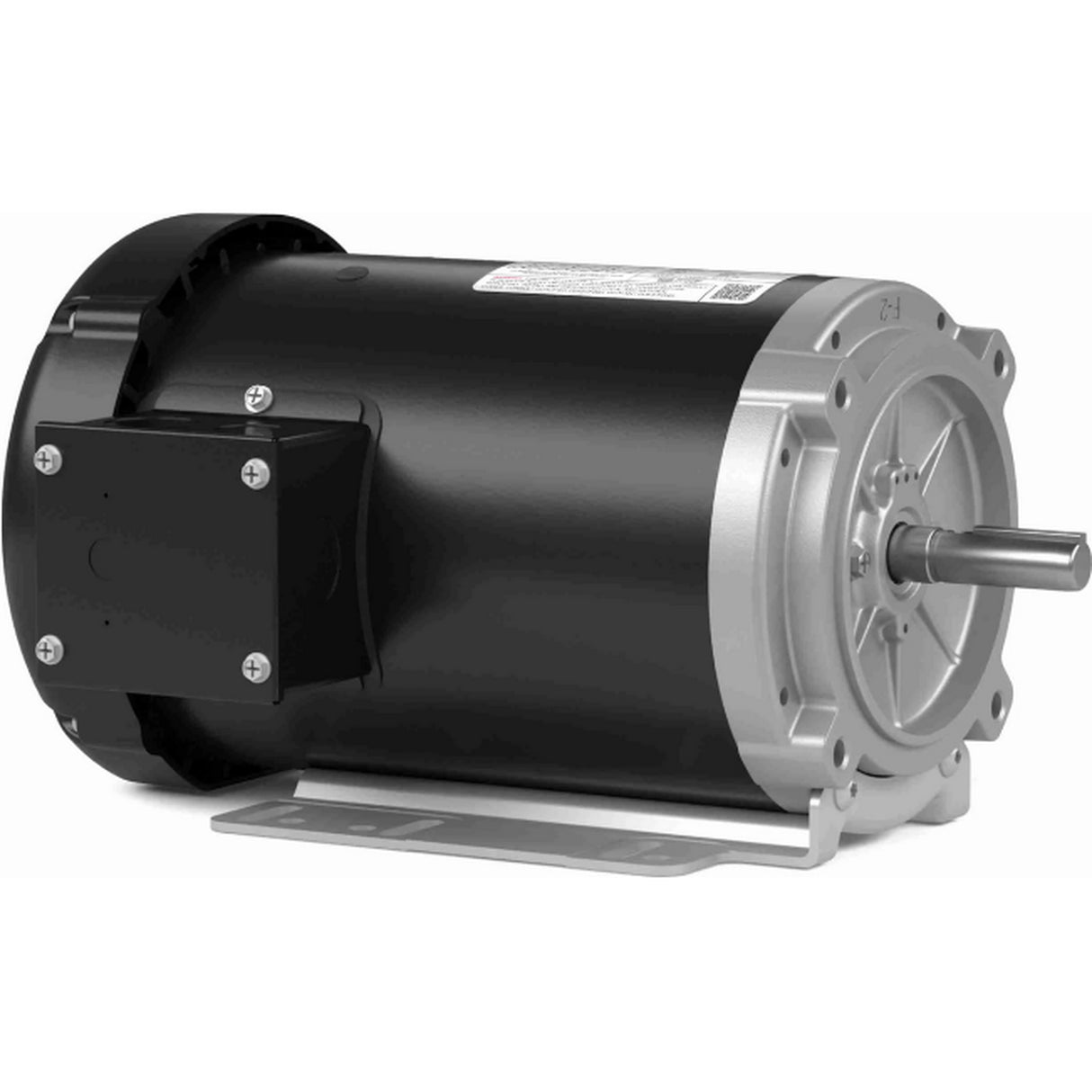

This general-purpose three-phase AC motor offers dual-frequency and dual-voltage operation in a compact 56HC frame with totally enclosed fan-cooled construction and inverter-rated capability.

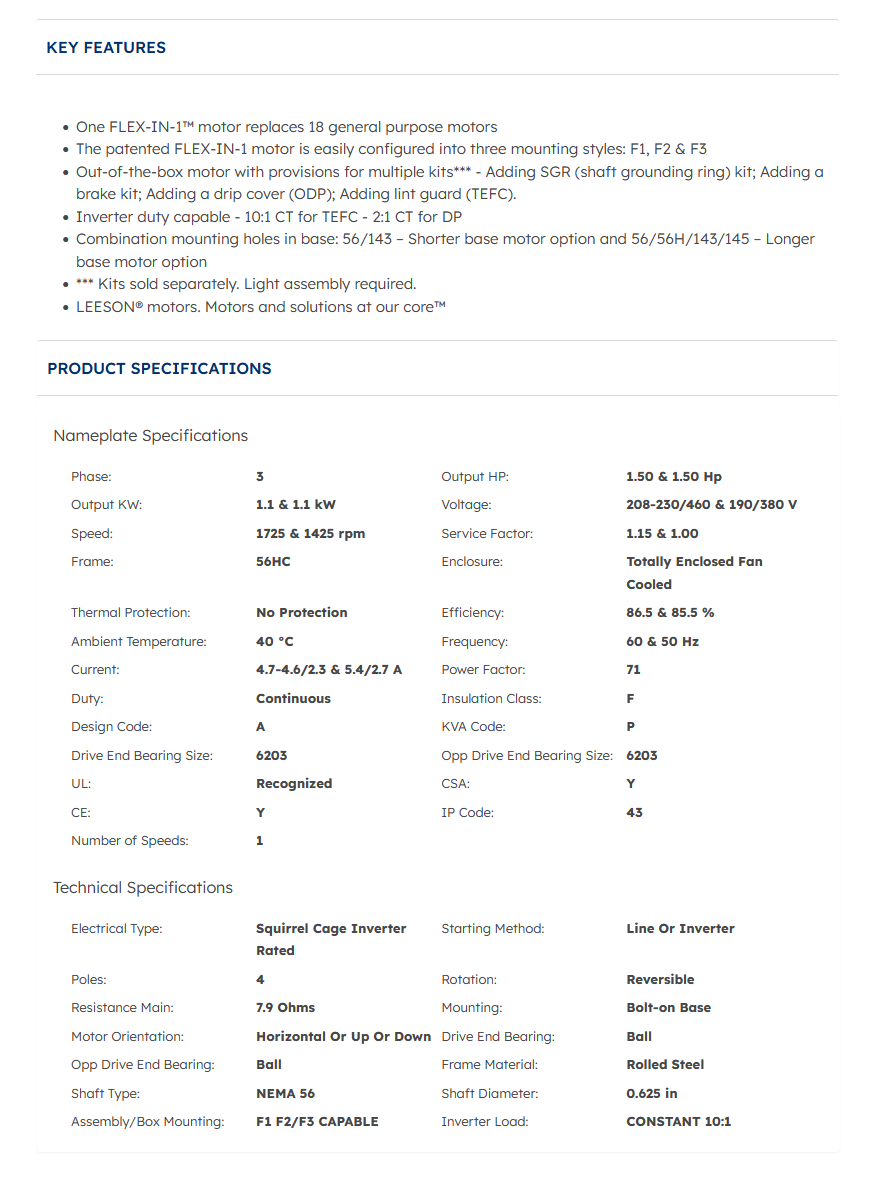

KEY FEATURES

• Model: 056T17F15954

• Product Type: FLEX‑IN‑1™ General Purpose Motor

• Horsepower: 1.50 Hp (1.1 kW)

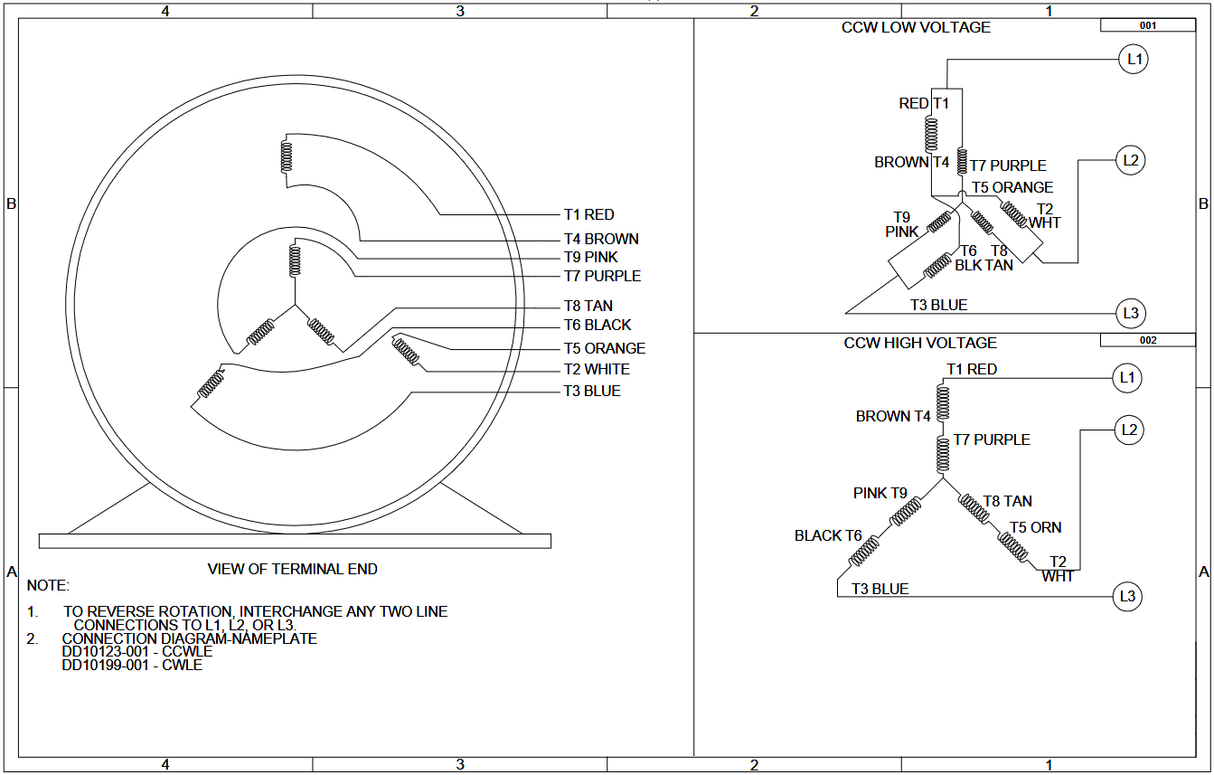

• Voltage: 208‑230/460 V @ 60 Hz / 190/380 V @ 50 Hz – 3 Phase

• Speed: 1725 RPM @ 60 Hz / 1425 RPM @ 50 Hz

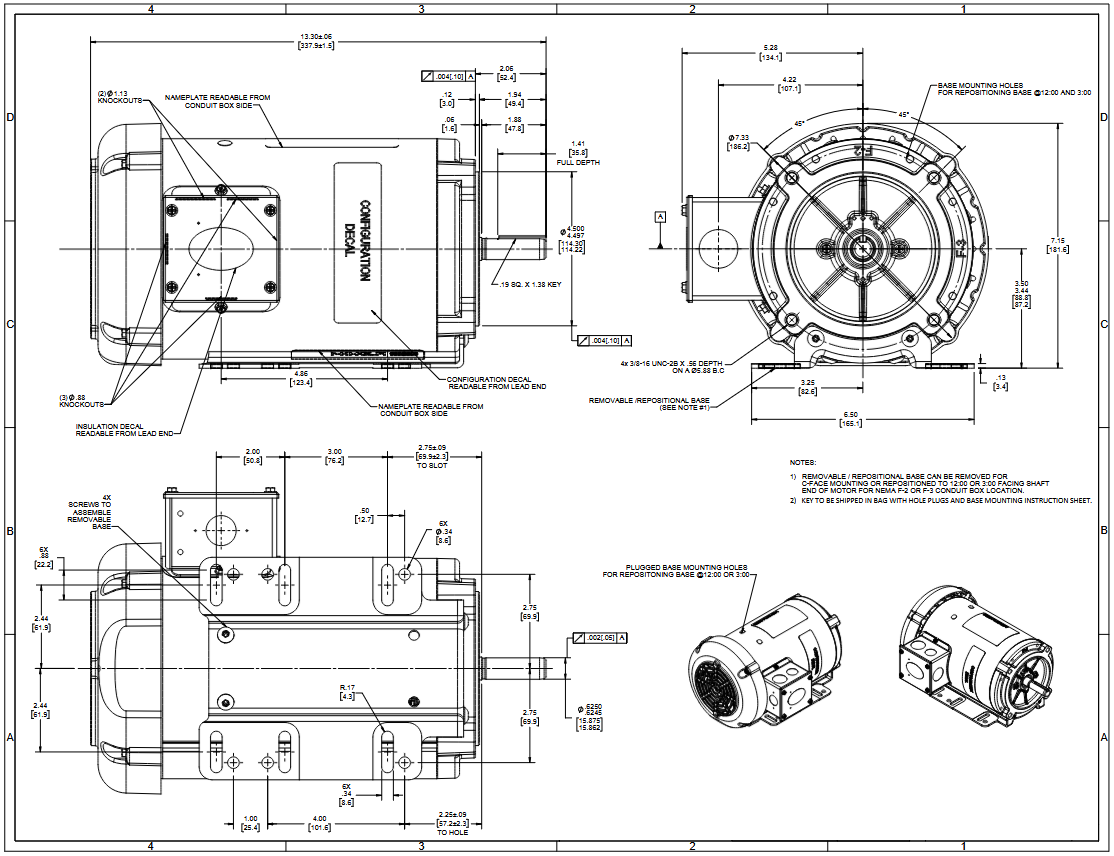

• Frame: 56HC

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Service Factor: 1.15 @ 60 Hz / 1.00 @ 50 Hz

• Efficiency: 86.5% @ 60 Hz / 85.5% @ 50 Hz

• Power Factor: 71

• Current: 4.7‑4.6/2.3 A @ 60 Hz / 5.4/2.7 A @ 50 Hz

• Duty: Continuous

• Insulation Class: F

• Thermal Protection: No Protection

• Design Code: A – KVA Code P

• Mounting: Bolt‑on Base

• Shaft: NEMA 56 – 0.625" Diameter

• Bearings: Ball Bearings (6203 DE & ODE)

• Frame Material: Rolled Steel

• Rotation: Reversible

• Inverter Duty: Rated – 10:1 Constant Torque

• Number of Speeds: 1

• IP Code: IP43

• Certifications: UL Recognized, CSA, CE

• Ambient Rating: 40 °C

• Special Feature: FLEX‑IN‑1™ design replaces up to 18 general purpose motors

The motor’s flexible voltage and frequency compatibility and inverter-rated design make it adaptable to diverse power environments, while the TEFC enclosure and universal mounting options enhance installation versatility.
