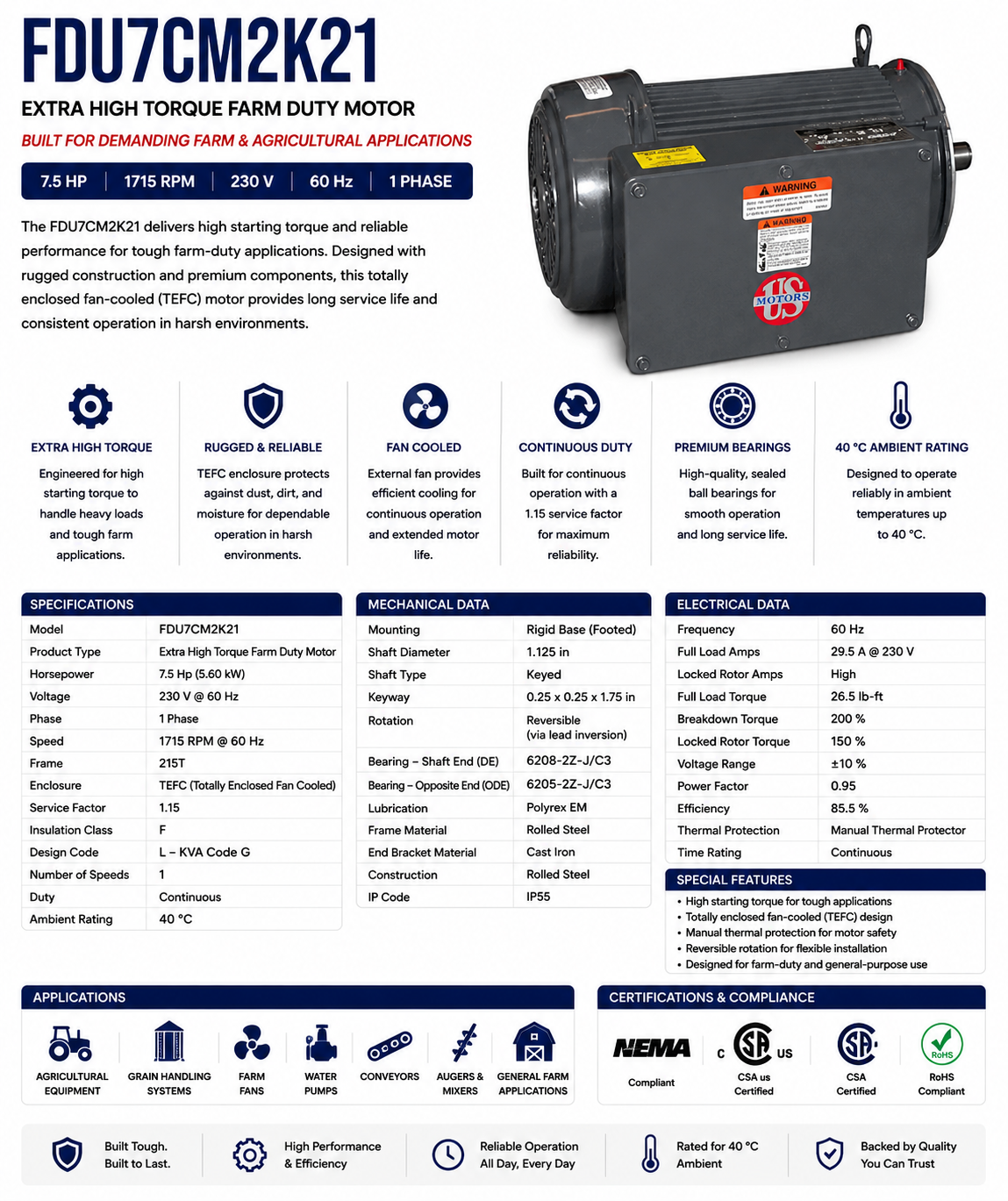

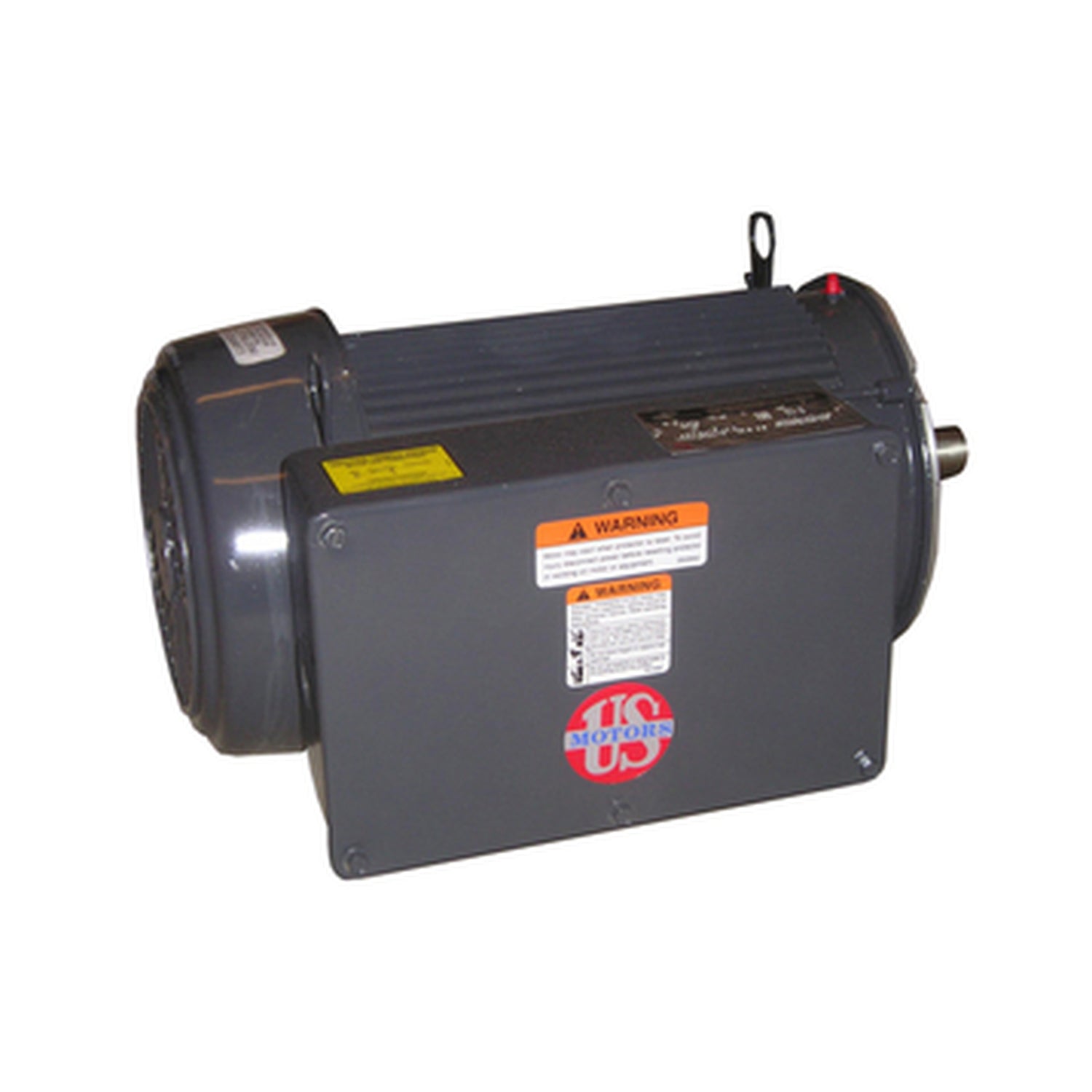

FDU7CM2K21, 7.5Hp, 1715RPM, 230V, 1Ph, 60Hz, TEFC, Frame 215T, FH97

This high‑torque single‑phase AC motor is engineered for demanding farm and agricultural applications, providing robust performance in a totally enclosed fan‑cooled (TEFC) design with a rigid footed mounting.

KEY FEATURES

• Model: FDU7CM2K21

• Product Type: Extra High Torque Farm Duty Motor

• Horsepower: 7.5 Hp

• Voltage: 230 V @ 60 Hz

• Speed: 1715 RPM @ 60 Hz

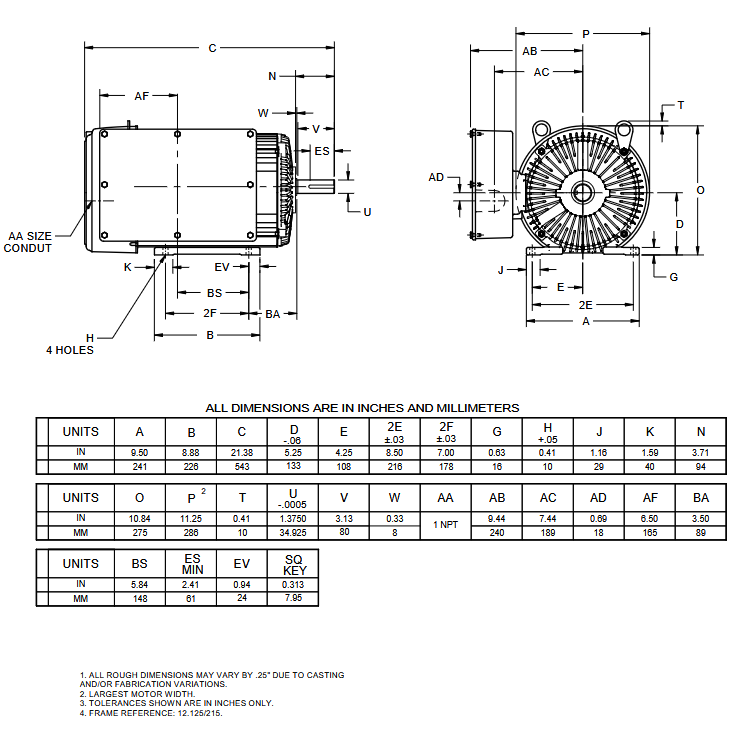

• Frame: 215T

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Service Factor: 1.15

• Insulation Class: F

• Design Code: L – KVA Code G

• Number of Speeds: 1

• Bearings: 6208‑2Z‑J/C3 (shaft end) & 6205‑2Z‑J/C3 (opposite end)

• Ambient Rating: 40 °C

• Duty: Continuous
