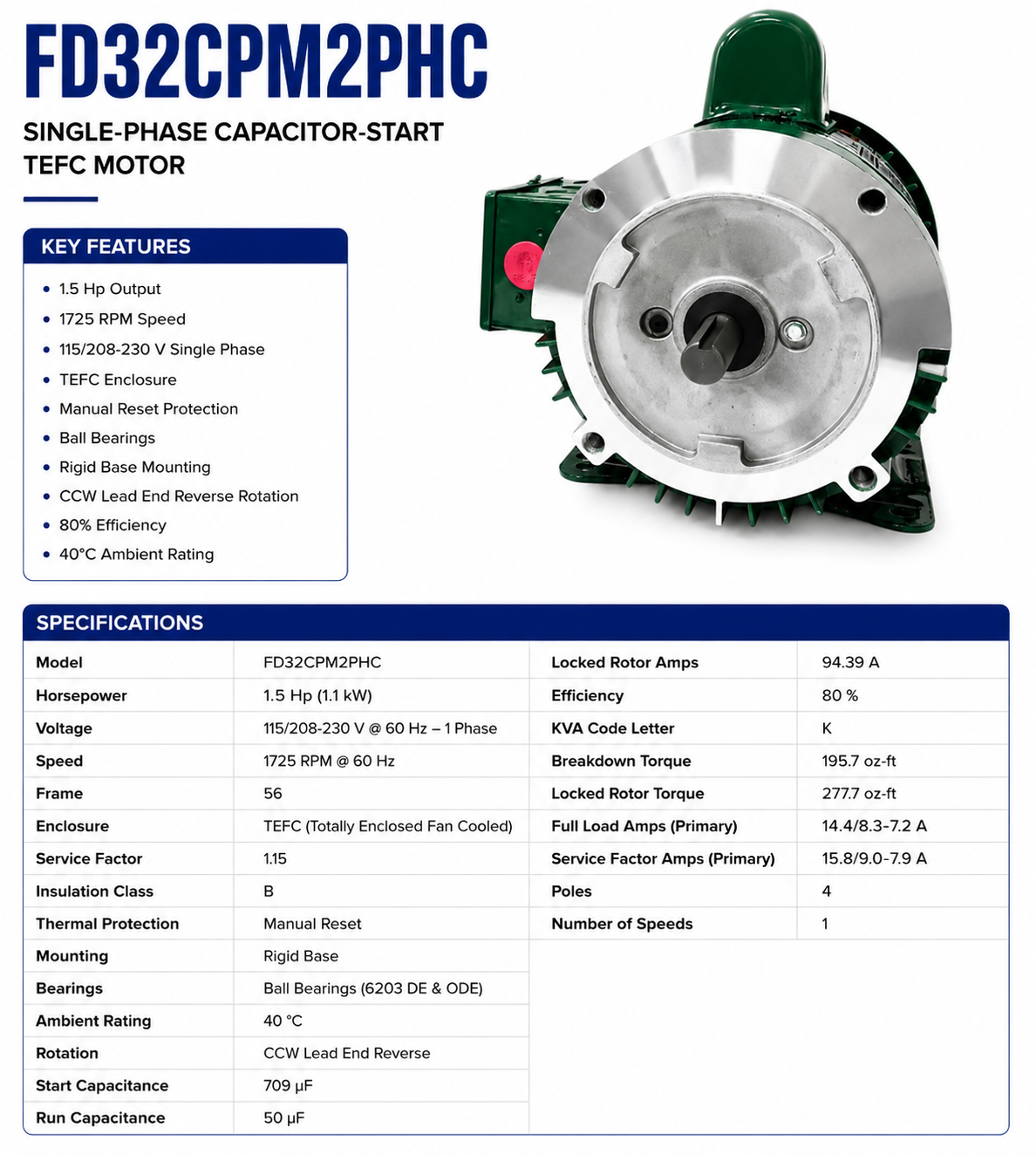

FD32CPM2PHC, 1.5Hp, 1725RPM, 115/208‑230V, 1Ph, 60Hz, TEFC, Frame 56, T063CTL2307012B

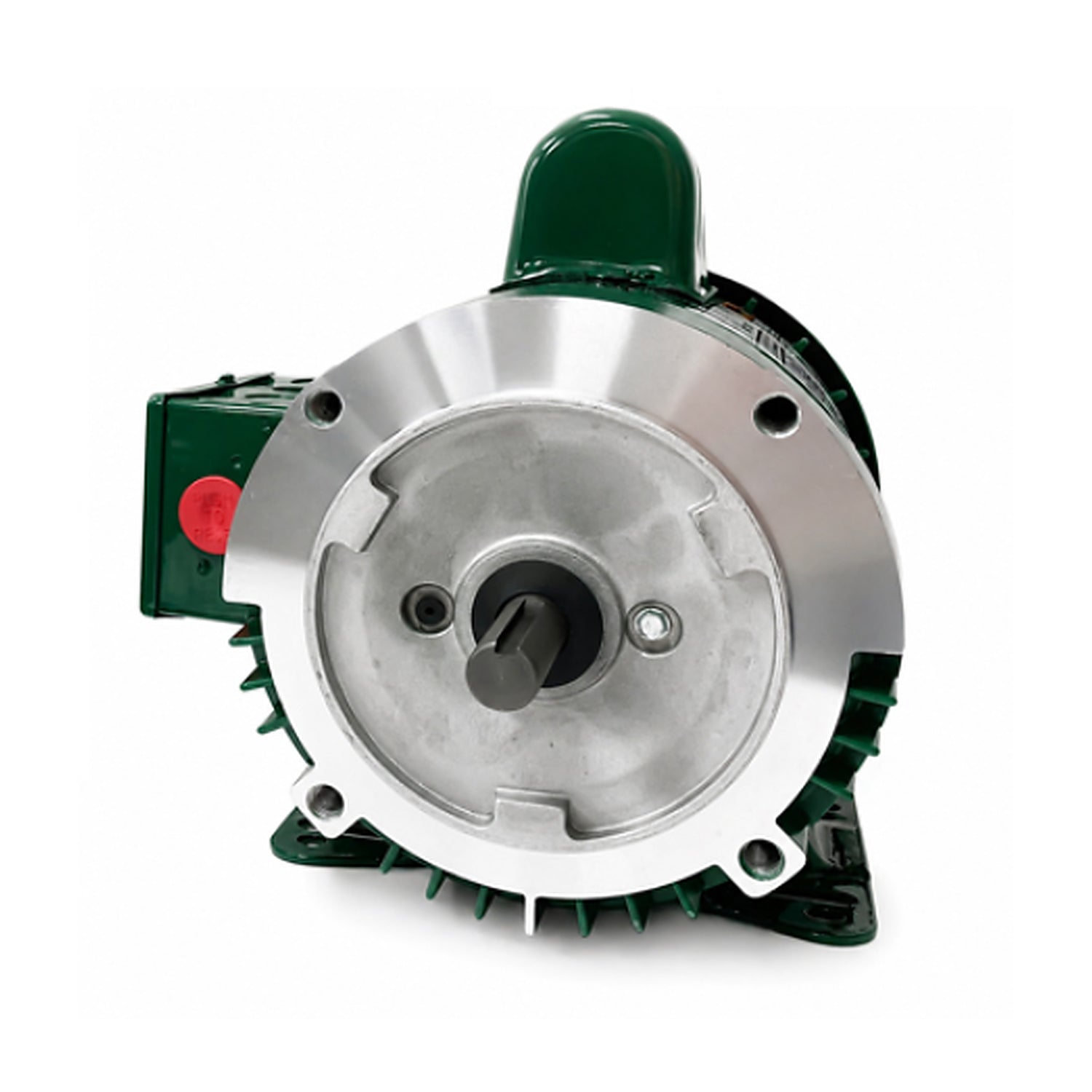

This single‑phase, capacitor‑start, totally enclosed fan‑cooled (TEFC) motor delivers 1.5 horsepower at 1725 RPM and is optimized for general‑purpose or agricultural applications requiring robust starting torque and protection from environmental exposure.

KEY FEATURES

• Model: FD32CPM2PHC

• Horsepower: 1.5 Hp (1.1 kW)

• Voltage: 115/208‑230 V @ 60 Hz – 1 Phase

• Speed: 1725 RPM @ 60 Hz

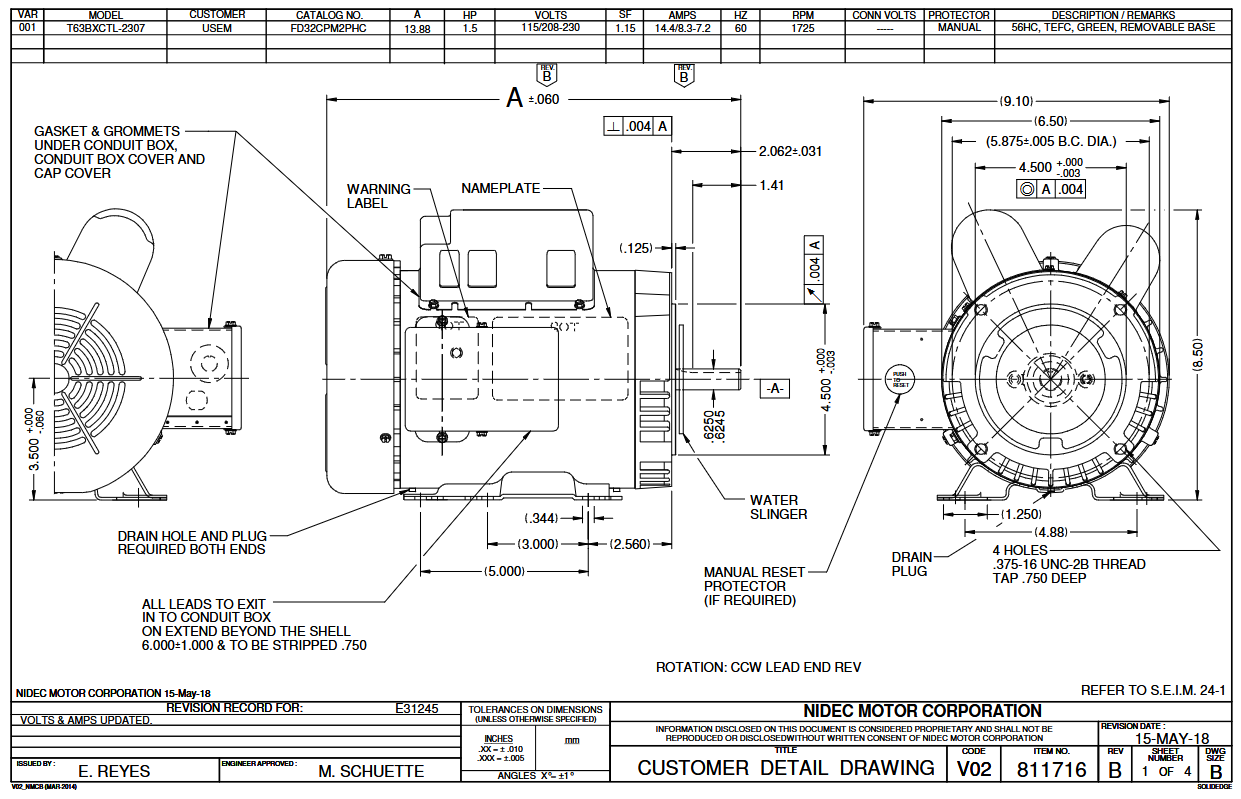

• Frame: 56

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Service Factor: 1.15

• Insulation Class: B

• Thermal Protection: Manual Reset

• Mounting: Rigid Base

• Bearings: Ball Bearings (6203 DE & ODE)

• Ambient Rating: 40 °C

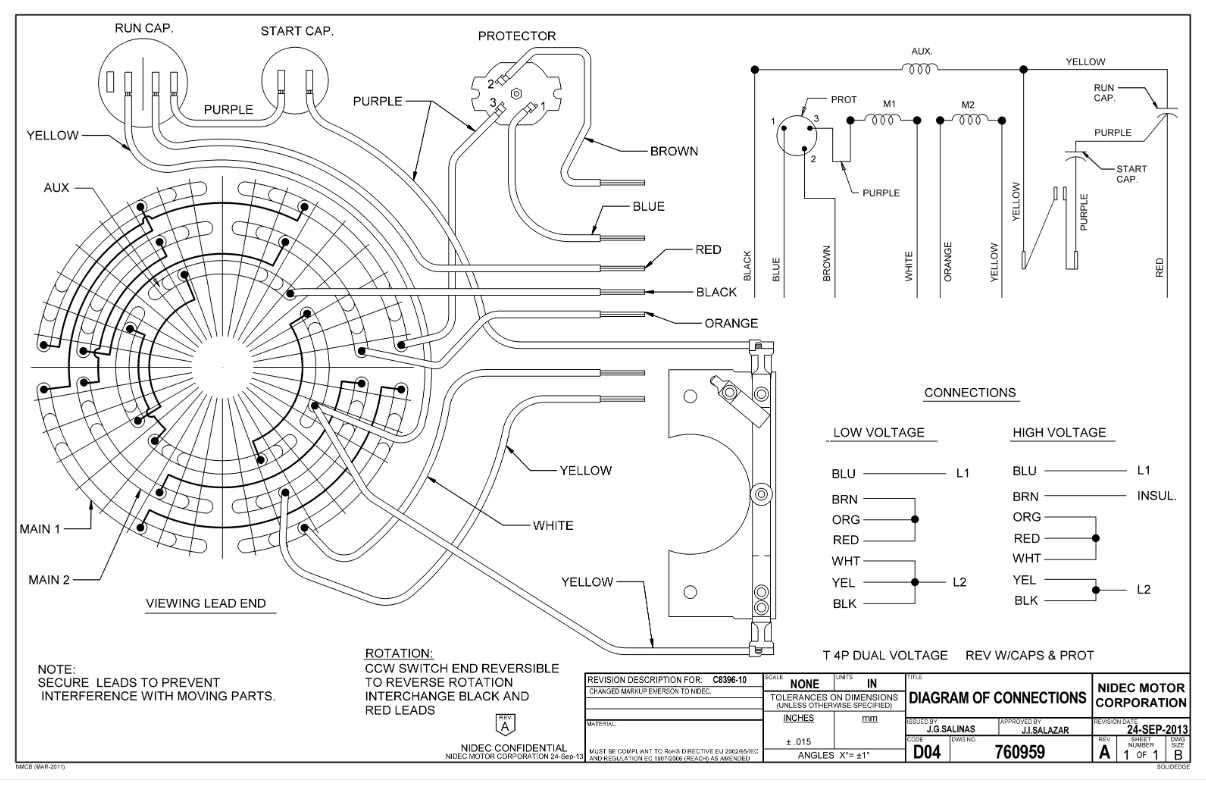

• Rotation: CCW Lead End Reverse

• Start Capacitance: 709 µF

• Run Capacitance: 50 µF

• Locked Rotor Amps: 94.39 A

• Efficiency: 80 %

• KVA Code Letter: K

• Breakdown Torque: 195.7 oz‑ft

• Locked Rotor Torque: 277.7 oz‑ft

• Full Load Amps (Primary): 14.4/8.3‑7.2 A

• Service Factor Amps (Primary): 15.8/9.0‑7.9 A

• Poles: 4

• Number of Speeds: 1
