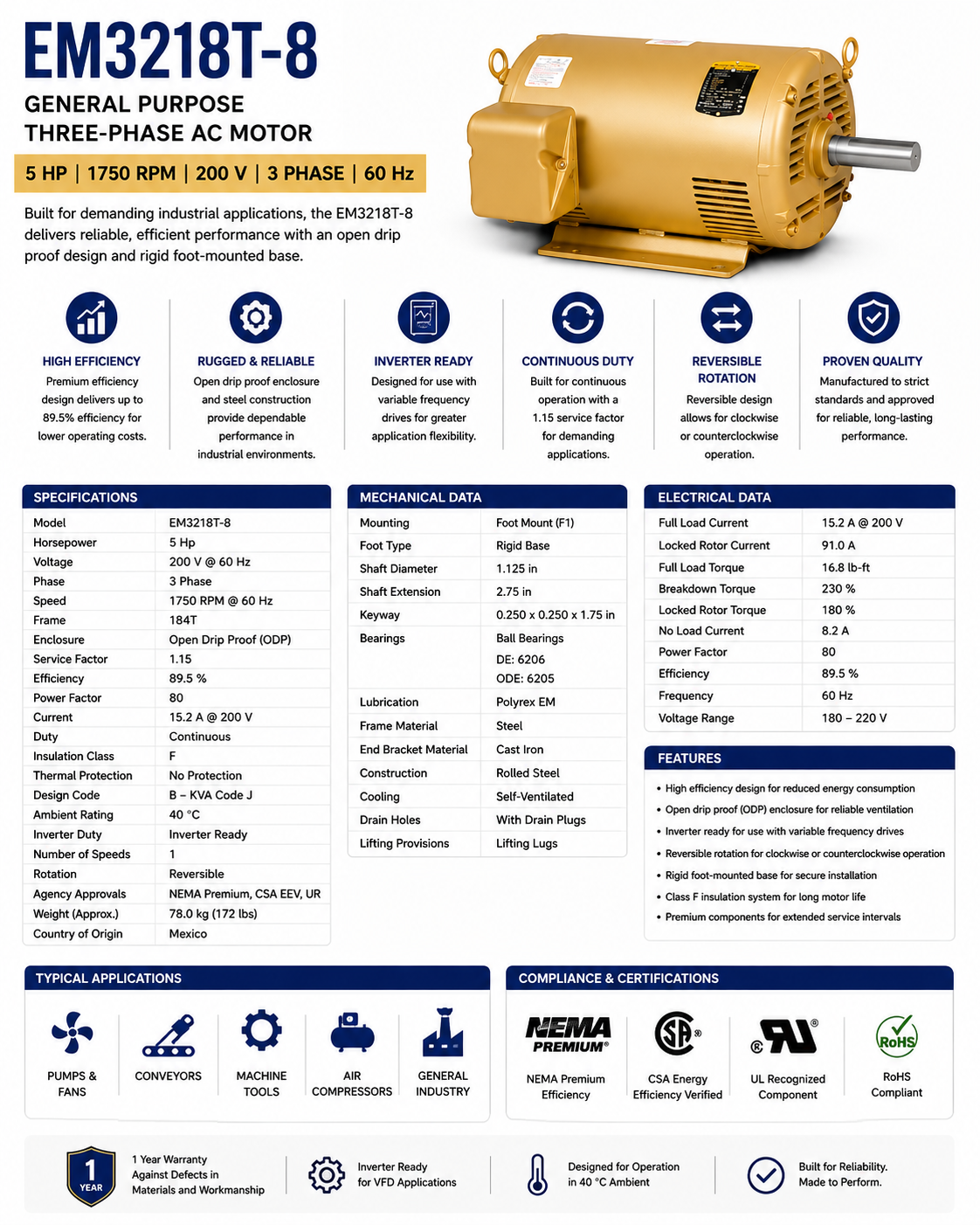

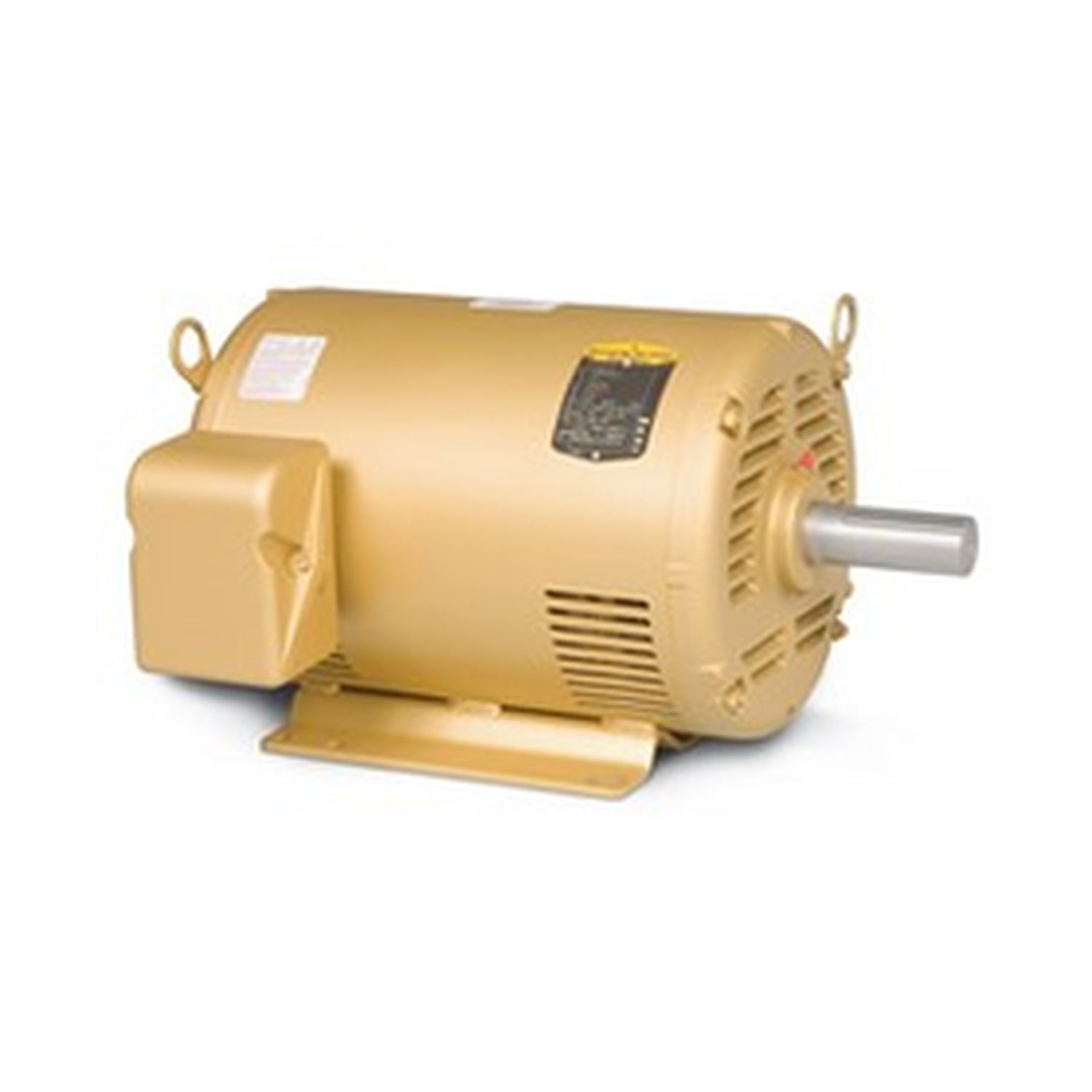

EM3218T-8, 5Hp, 1750 RPM, 200 V, 3Ph, 60 Hz, ODP (Open Drip Proof), Frame 184T, 36G548Q035G1

This general-purpose three-phase AC motor delivers 5 Hp at 1750 RPM and operates at 200 V, designed for continuous-duty industrial applications in a rigid foot-mounted configuration with an open slotted band enclosure.

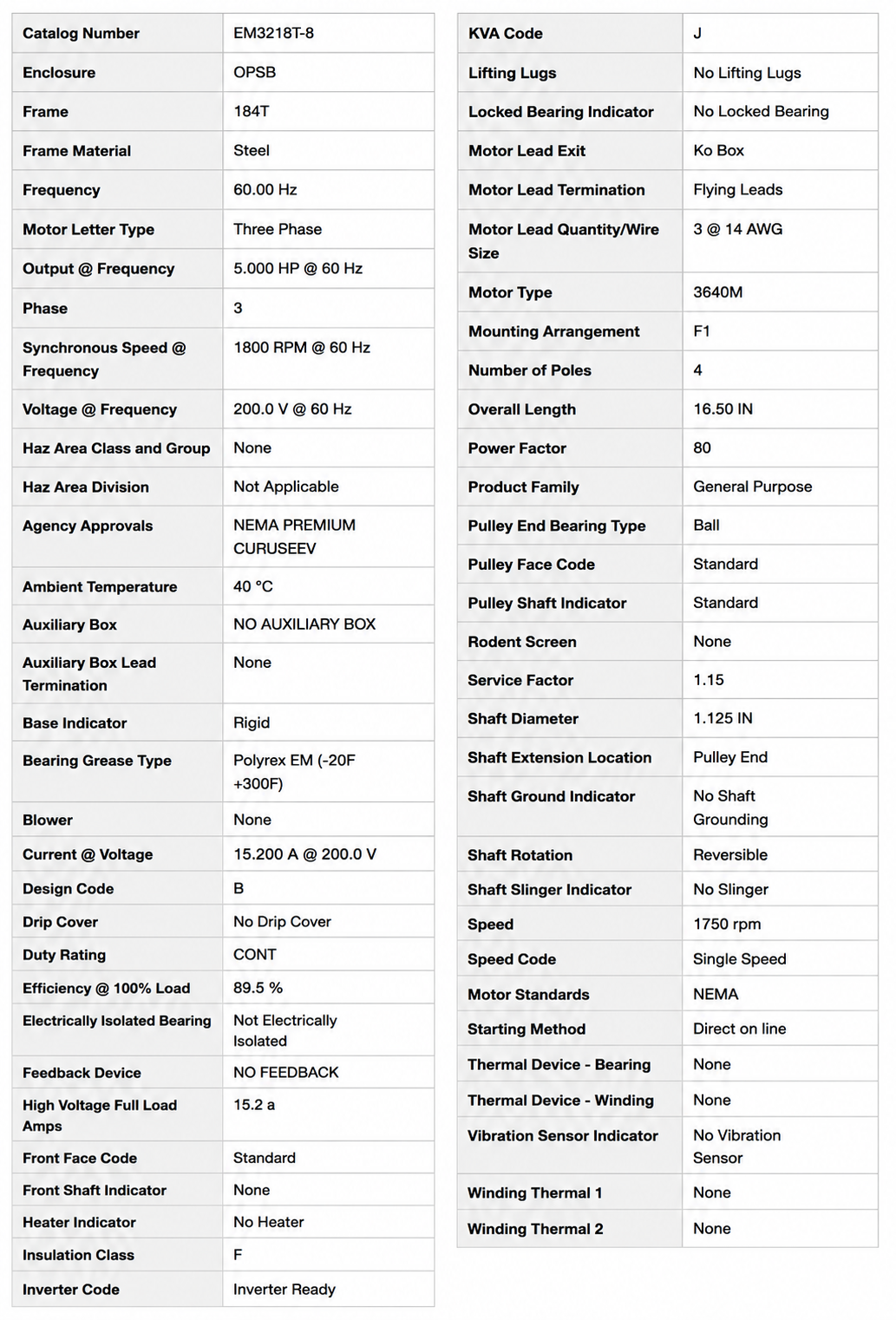

KEY FEATURES

• Model: EM3218T-8

• Horsepower: 5 Hp

• Voltage: 200 V @ 60 Hz – 3 Phase

• Speed: 1750 RPM @ 60 Hz

• Frame: 184T

• Enclosure: Open Drip Proof (ODP)

• Service Factor: 1.15

• Efficiency: 89.5 %

• Power Factor: 80

• Current: 15.2 A @ 200 V

• Duty: Continuous

• Insulation Class: F

• Thermal Protection: No Protection

• Design Code: B – KVA Code J

• Mounting: Foot Mount (F1)

• Shaft: 1.125 in diameter

• Bearings: Ball Bearings (DE: 6206, ODE: 6205)

• Frame Material: Steel

• Rotation: Reversible

• Inverter Duty: Inverter Ready

• Number of Speeds: 1

• Ambient Rating: 40 °C

• Agency Approvals: NEMA Premium, CSA EEV, UR

This motor’s robust design with inverter readiness and high efficiency makes it well-suited for demanding industrial environments requiring reliable continuous operation.
