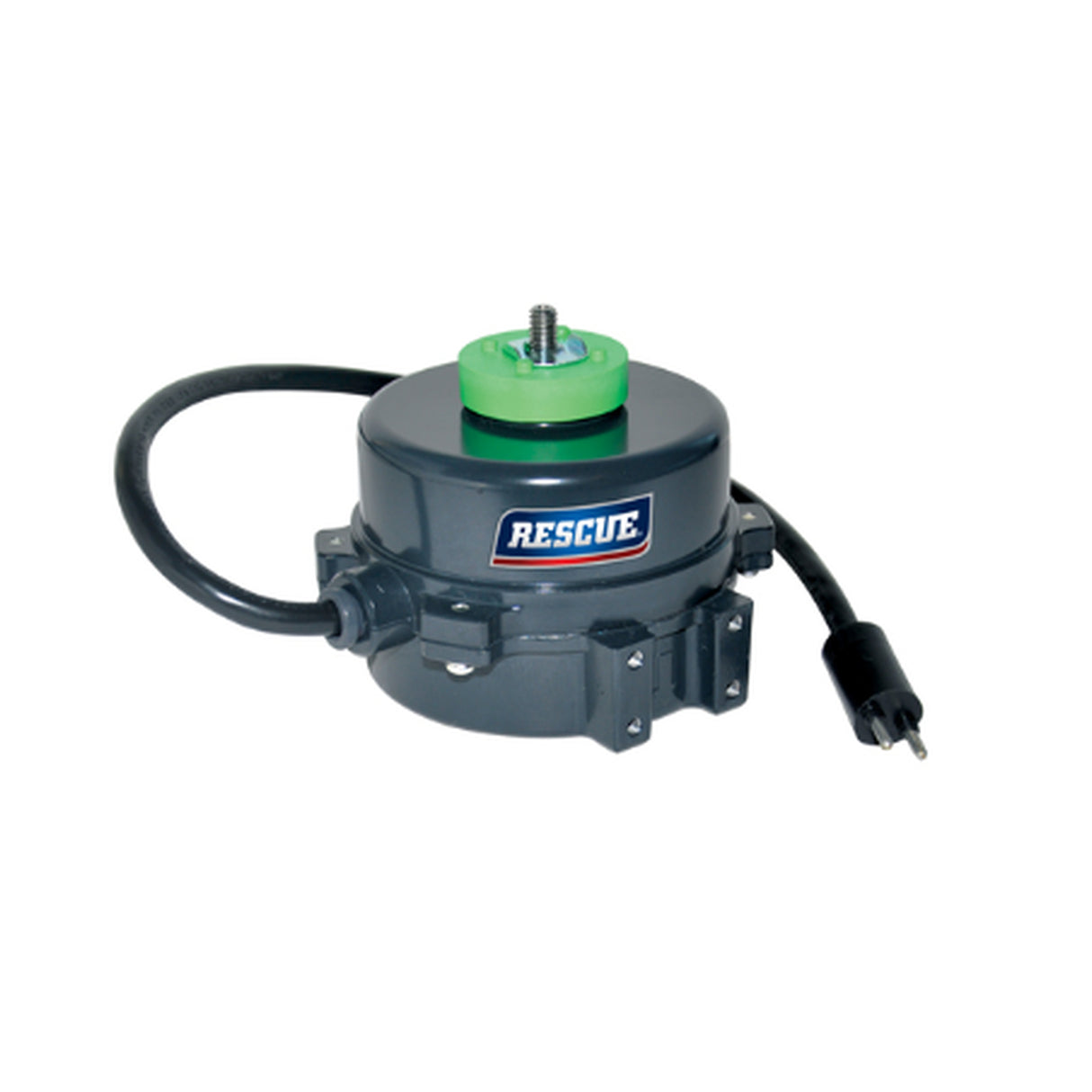

EC5412E, 0.034Hp, 1550–1725 RPM, 115/230 V, 1 Ph, 60 Hz, TEAO, Frame 35, M035TBG0125011B

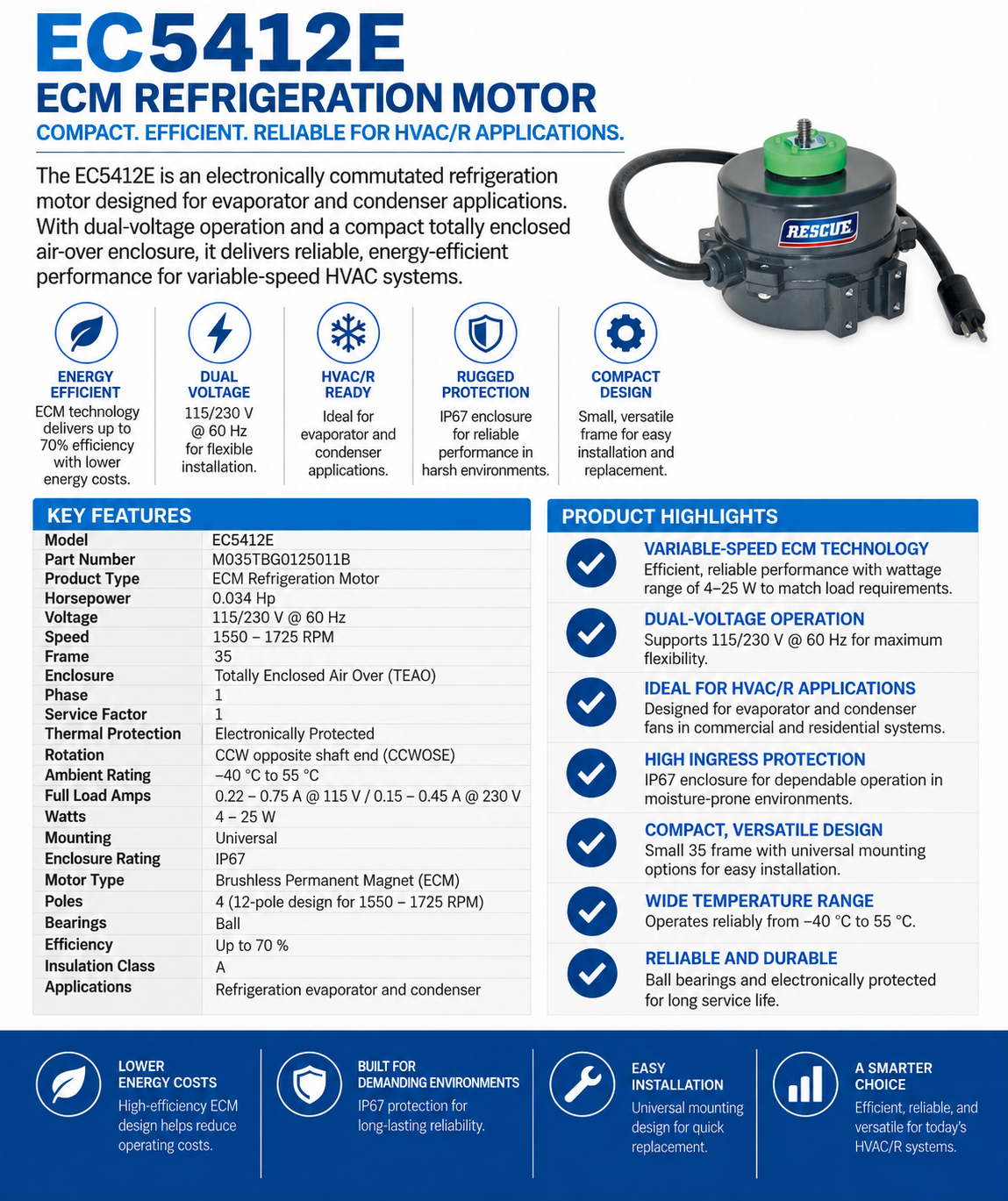

This electronically commutated refrigeration motor is designed for evaporator and condenser applications, offering dual-voltage operation and a compact totally enclosed air-over enclosure suitable for variable-speed HVAC use.

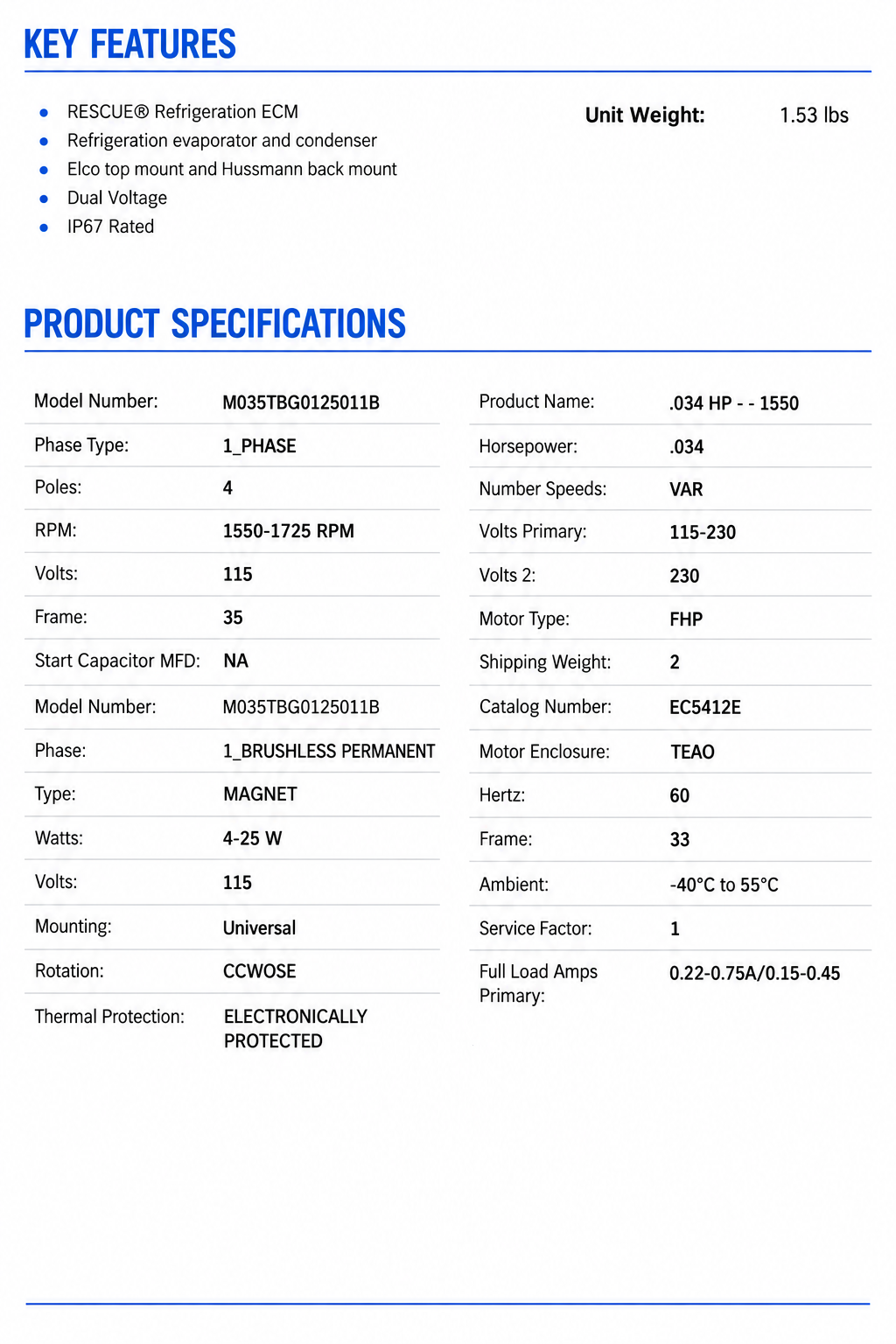

KEY FEATURES

• Model: EC5412E

• Part Number: M035TBG0125011B

• Horsepower: 0.034 Hp

• Voltage: 115/230 V @ 60 Hz

• Speed: 1550–1725 RPM

• Frame: 35

• Enclosure: Totally Enclosed Air Over (TEAO)

• Phase: 1

• Service Factor: 1

• Thermal Protection: Electronically Protected

• Rotation: CCW opposite shaft end (CCWOSE)

• Ambient Rating: –40 °C to 55 °C

• Full Load Amps: 0.22–0.75 A / 0.15–0.45 A

• Watts: 4–25 W

• Mounting: Universal

• Enclosure Rating: IP67

• Motor Type: Brushless Permanent Magnet (ECM)

• Poles: 4 (12‑pole design for 1550–1725 RPM)

• Bearings: Ball

• Efficiency: Up to 70 %

• Insulation Class: A

• Applications: Refrigeration evaporator and condenser

This ECM motor’s dual-voltage capability, compact TEAO design, and high efficiency make it a versatile choice for HVAC refrigeration systems.
