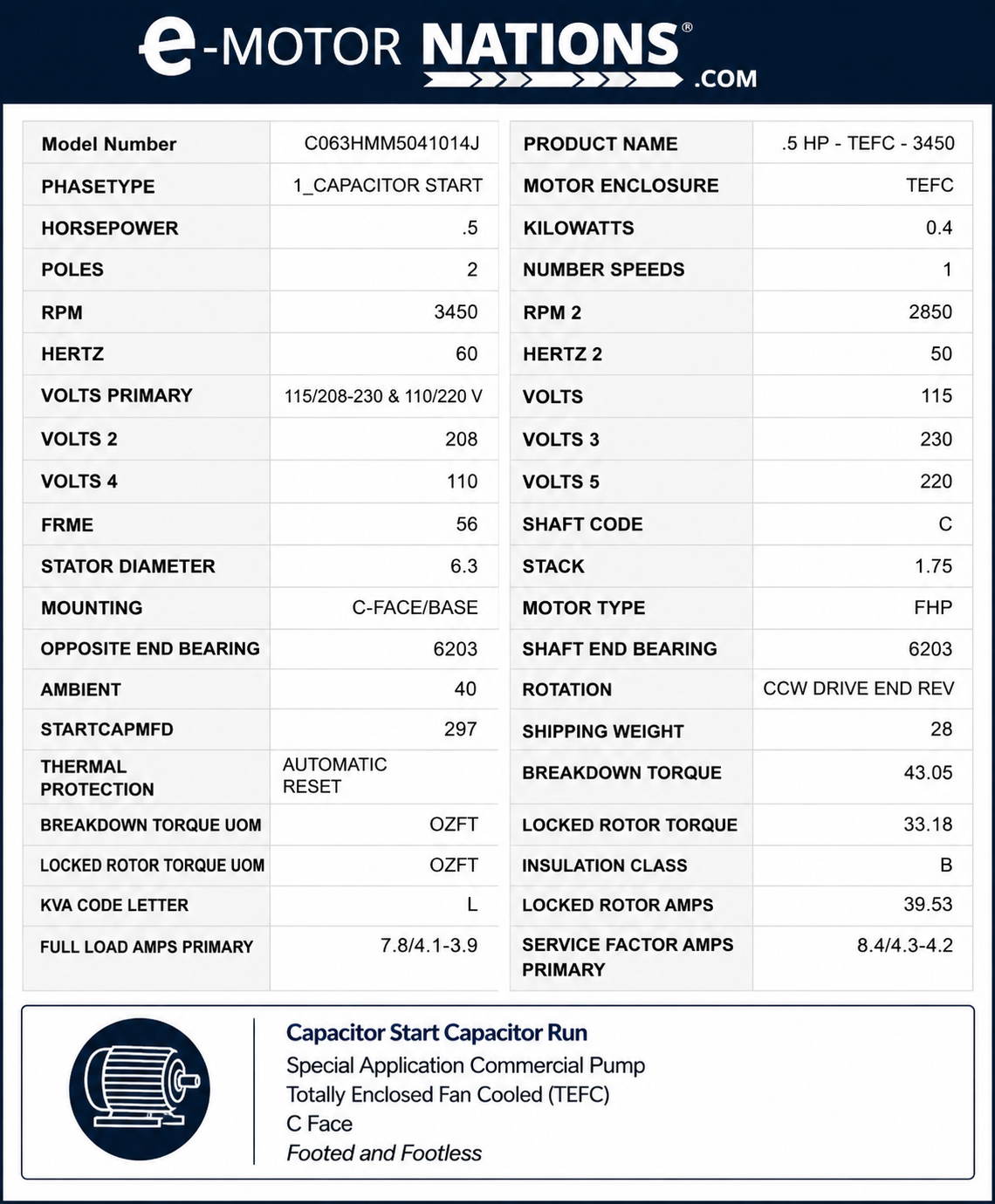

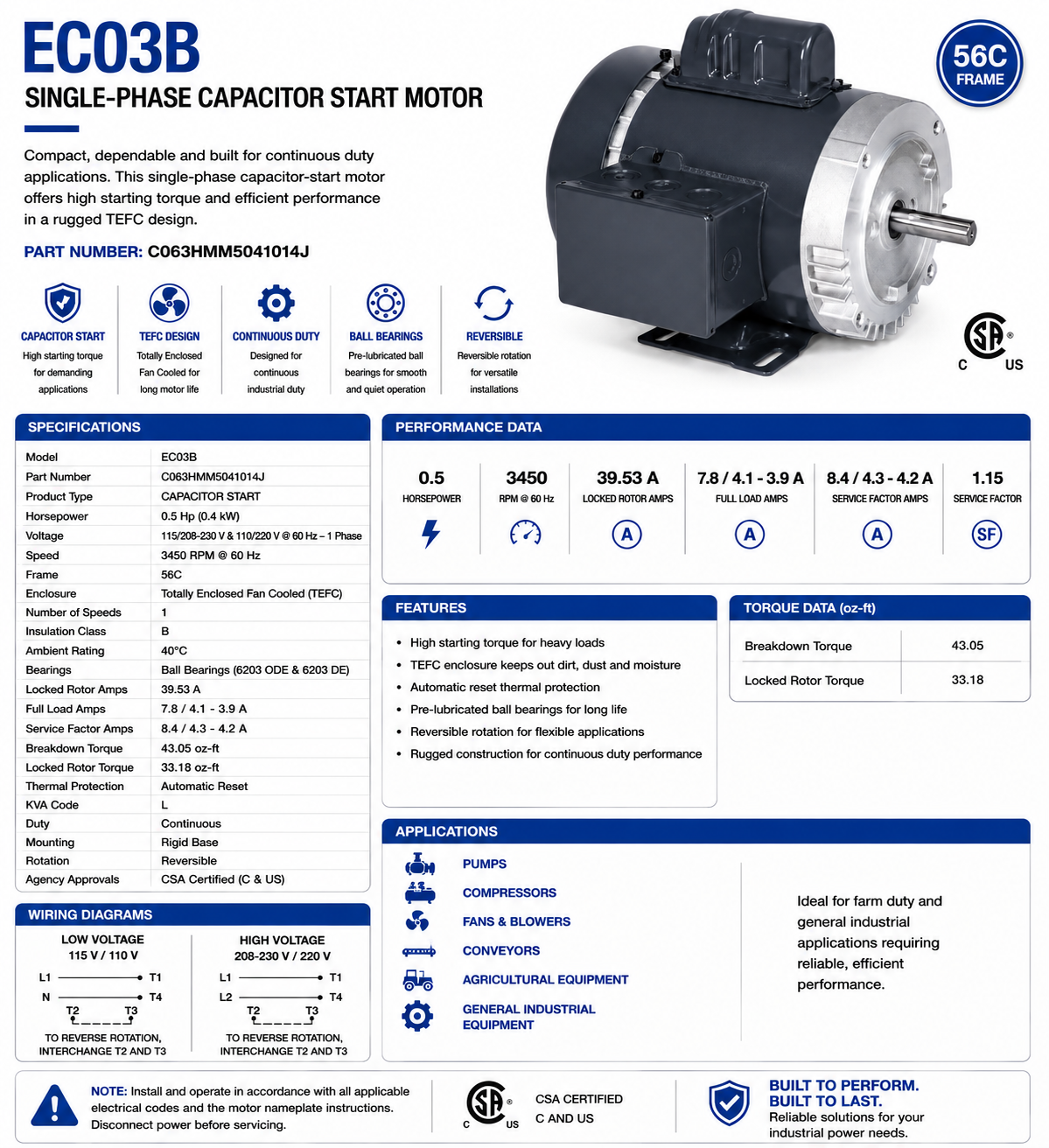

EC03B, 0.5Hp, 3450RPM, 115/208‑230 & 110/220V, 1Ph, 60Hz, TEFC, Frame 56C, C063HMM5041014J

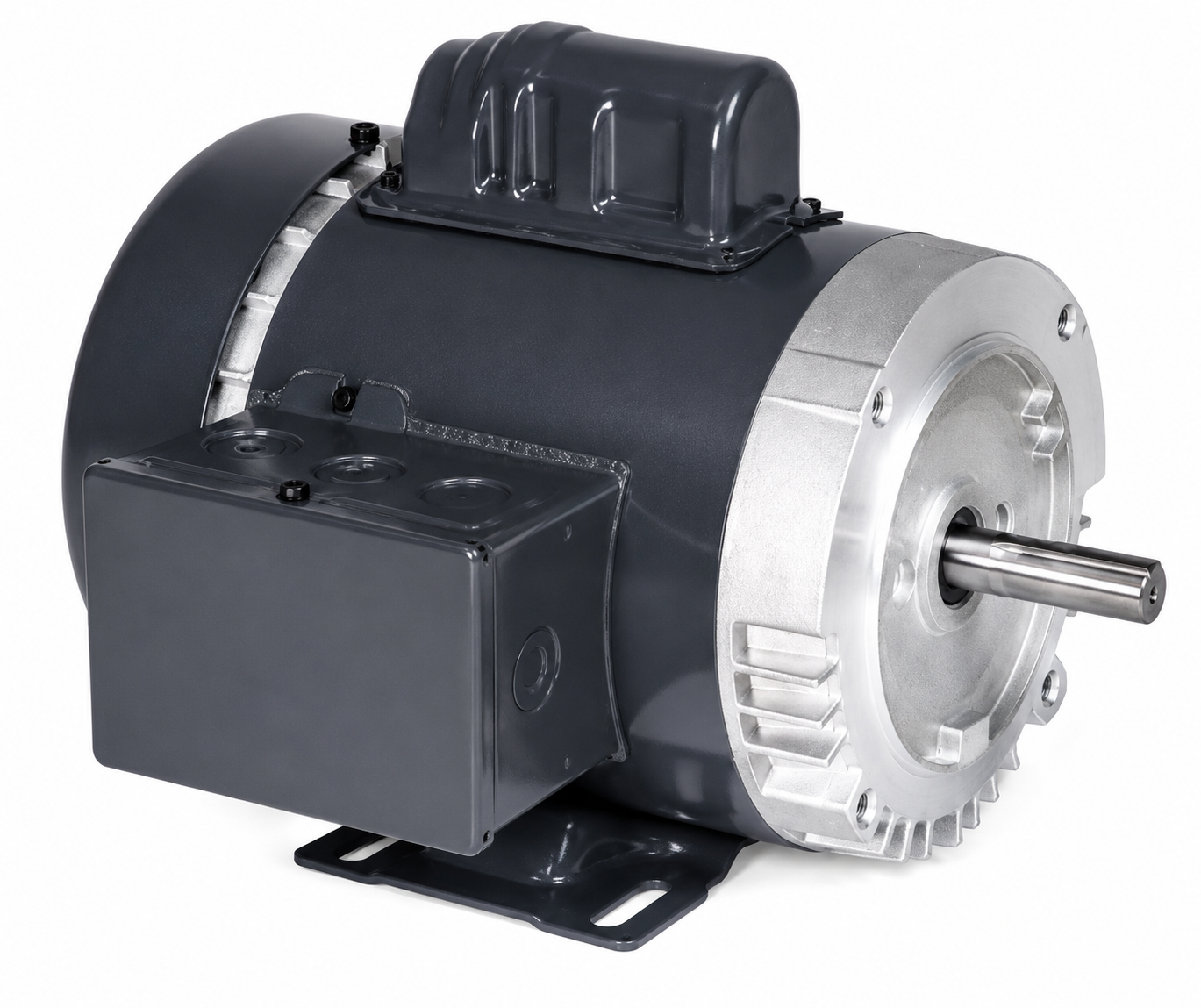

This single‑phase capacitor‑start motor delivers 0.5 horsepower at 3450 RPM in a compact 56C frame with totally enclosed fan‑cooled (TEFC) construction, suitable for continuous industrial duty.

KEY FEATURES

• Model: EC03B

• Part Number: C063HMM5041014J

• Product Type: CAPACITOR START

• Horsepower: 0.5 Hp (0.4 kW)

• Voltage: 115/208‑230 V & 110/220 V @ 60 Hz – 1 Phase

• Speed: 3450 RPM @ 60 Hz

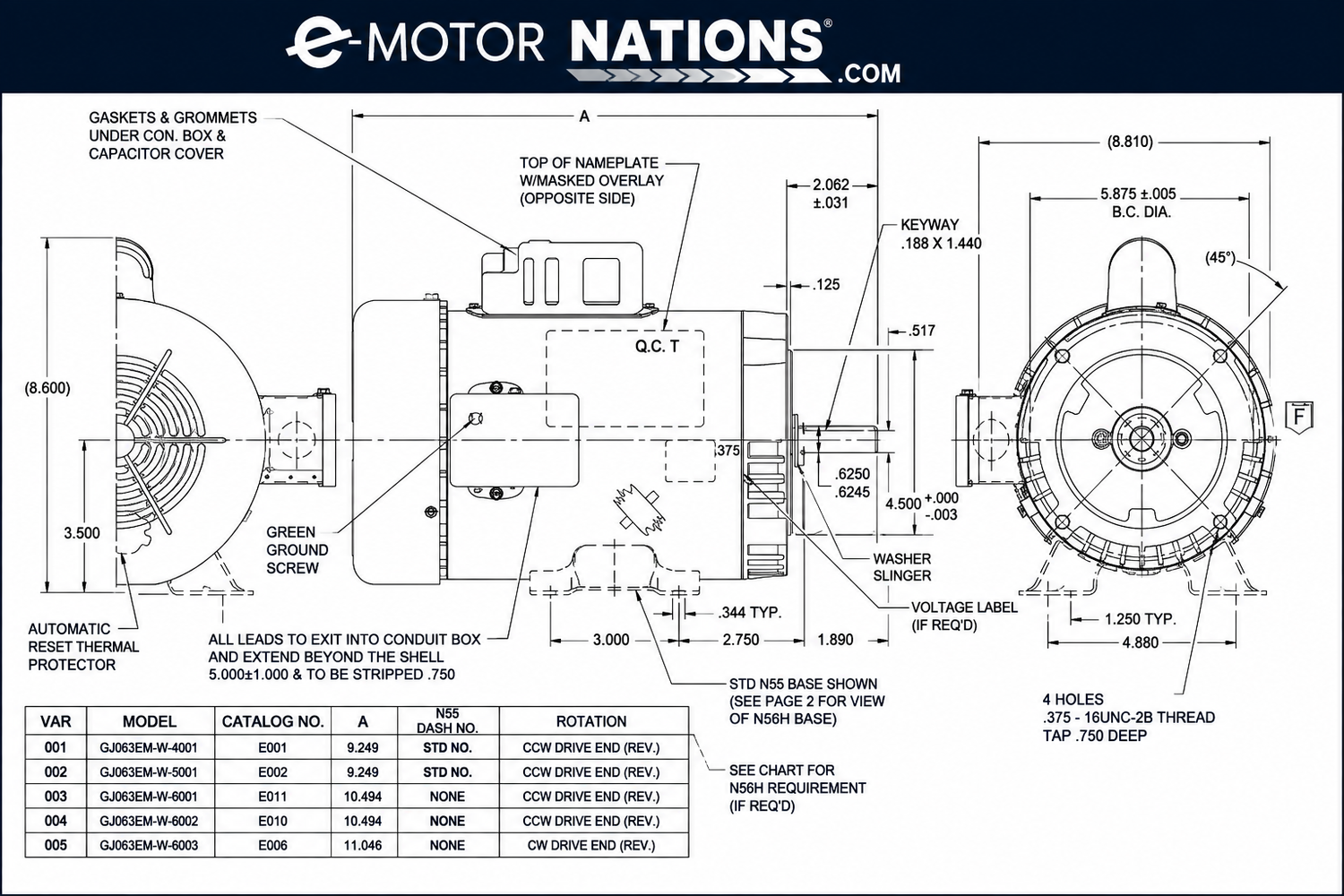

• Frame: 56C

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Number of Speeds: 1

• Insulation Class: B

• Ambient Rating: 40°C

• Bearings: Ball Bearings (6203 ODE & 6203 DE)

• Locked Rotor Amps: 39.53 A

• Full Load Amps: 7.8/4.1‑3.9 A

• Service Factor Amps: 8.4/4.3‑4.2 A

• Breakdown Torque: 43.05 oz‑ft

• Locked Rotor Torque: 33.18 oz‑ft

• Thermal Protection: Automatic Reset

• KVA Code: L
