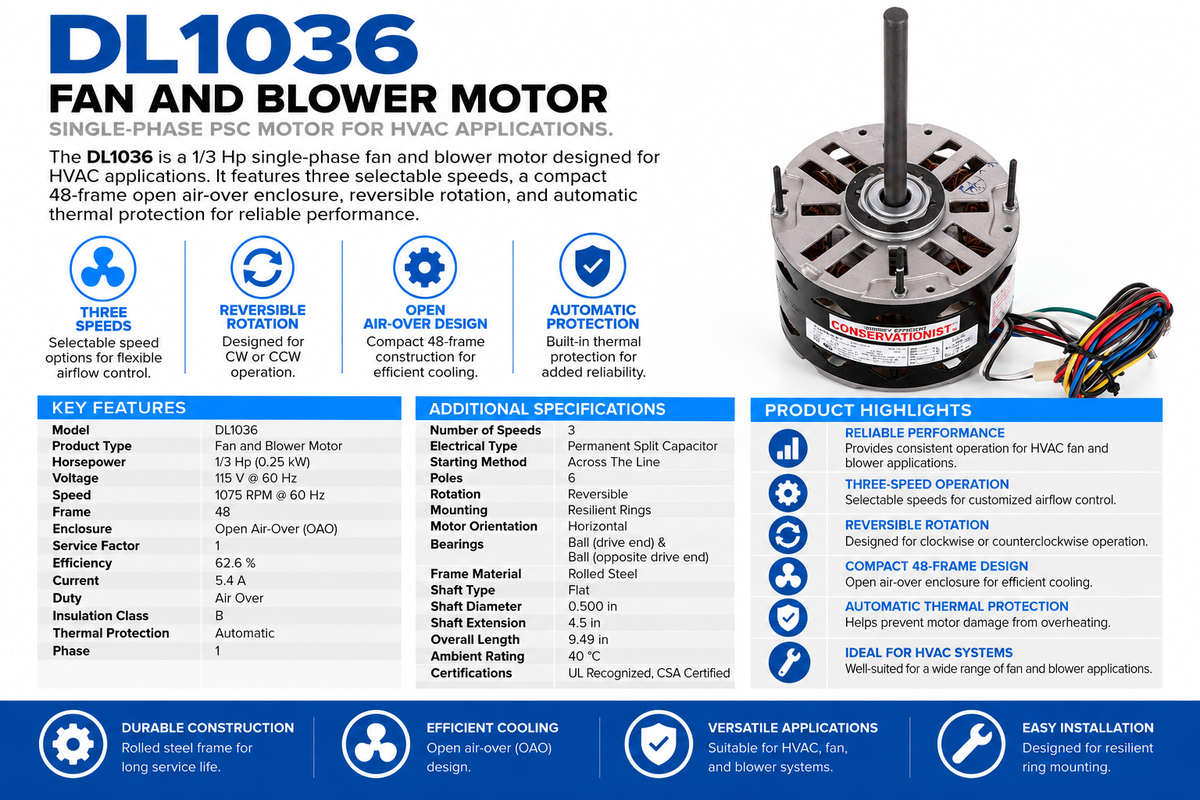

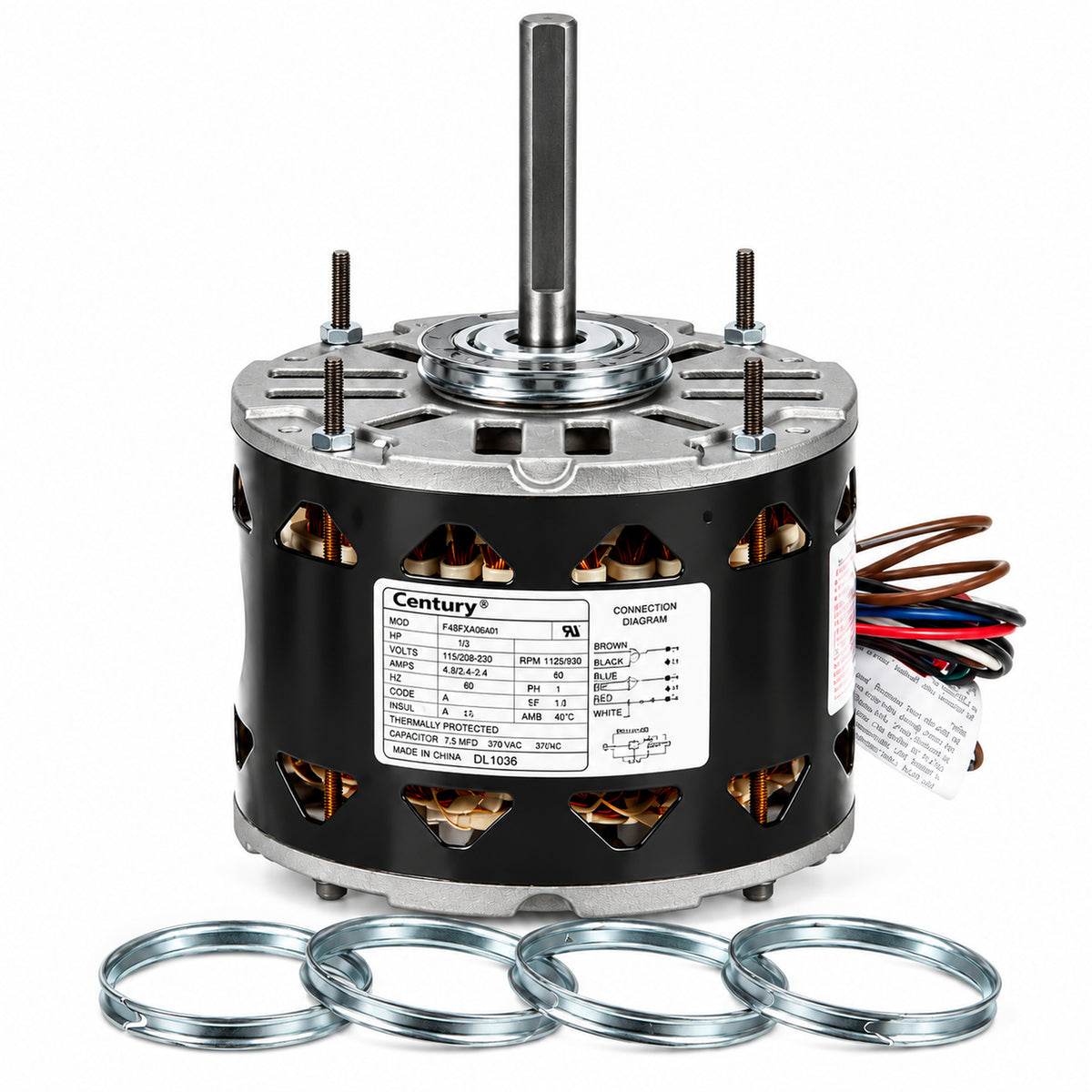

DL1036, 1/3Hp, 1075 RPM, 115 V, 1 Ph, 60 Hz, Open Air‑Over, Frame 48

This single‑phase fan and blower motor is engineered for HVAC applications, providing three selectable speeds in a compact 48‑frame, open air‑over enclosure. It features a permanent split capacitor design with reversible rotation and automatic thermal protection.

KEY FEATURES

• Model: DL1036

• Product Type: Fan and Blower Motor

• Horsepower: 1/3 Hp (0.25 kW)

• Voltage: 115 V @ 60 Hz

• Speed: 1075 RPM @ 60 Hz

• Frame: 48

• Enclosure: Open Air‑Over (OAO)

• Service Factor: 1

• Efficiency: 62.6 %

• Current: 5.4 A

• Duty: Air Over

• Insulation Class: B

• Thermal Protection: Automatic

• Phase: 1

• Number of Speeds: 3

• Electrical Type: Permanent Split Capacitor

• Starting Method: Across The Line

• Poles: 6

• Rotation: Reversible

• Mounting: Resilient Rings

• Motor Orientation: Horizontal

• Bearings: Ball (drive end) & Ball (opposite drive end)

• Frame Material: Rolled Steel

• Shaft Type: Flat, 0.500 in diameter, 4.5 in extension

• Overall Length: 9.49 in

• Ambient Rating: 40 °C

• Certifications: UL Recognized, CSA Certified
