D2P2D, 2Hp, 1745/1420 RPM, 230/460 V @ 60 Hz / 190/380 V @ 50 Hz, 3 Ph, ODP, Frame 145T, FC95

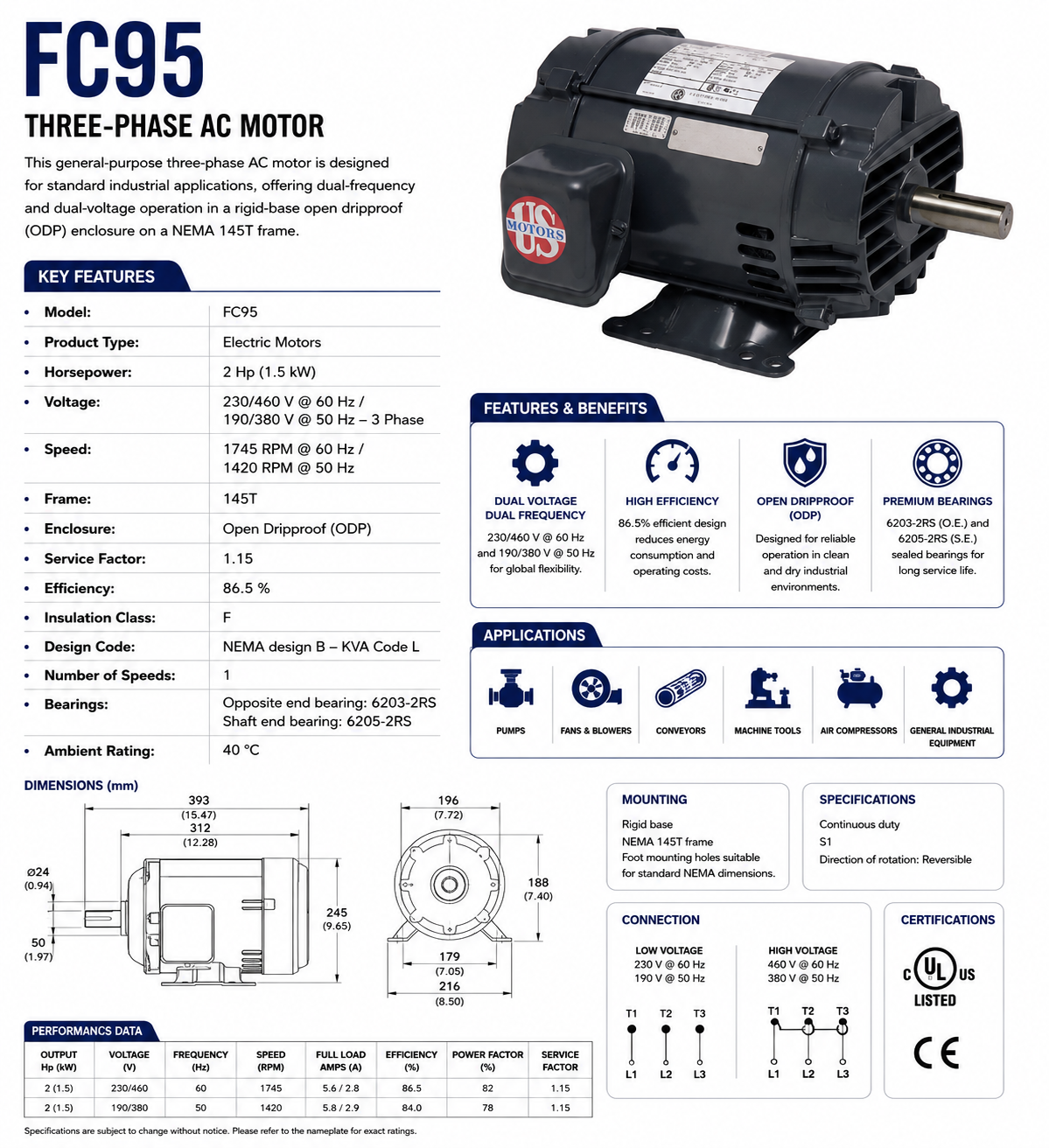

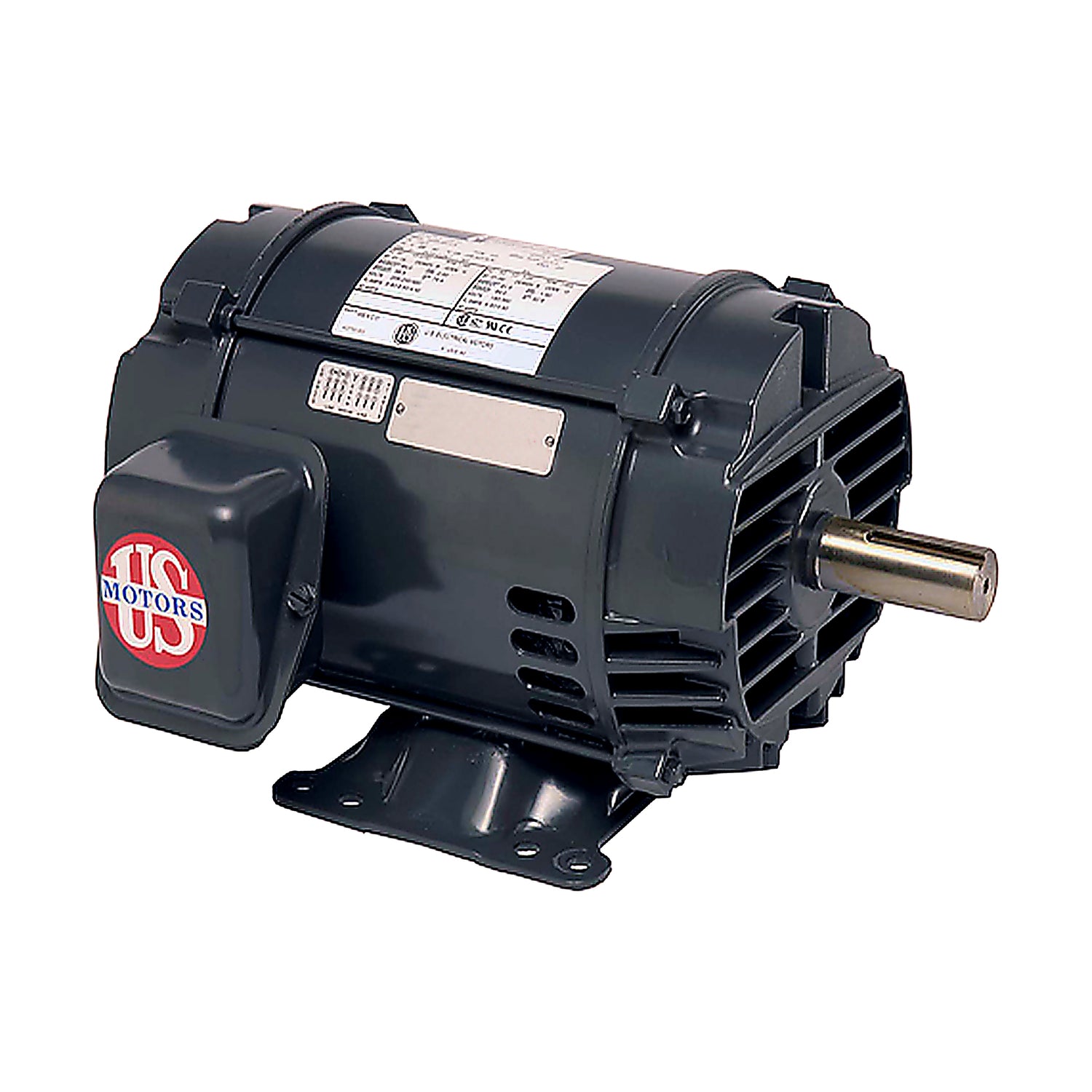

This general-purpose three-phase AC motor is designed for standard industrial applications, offering dual-frequency and dual-voltage operation in a rigid-base open dripproof (ODP) enclosure on a NEMA 145T frame.

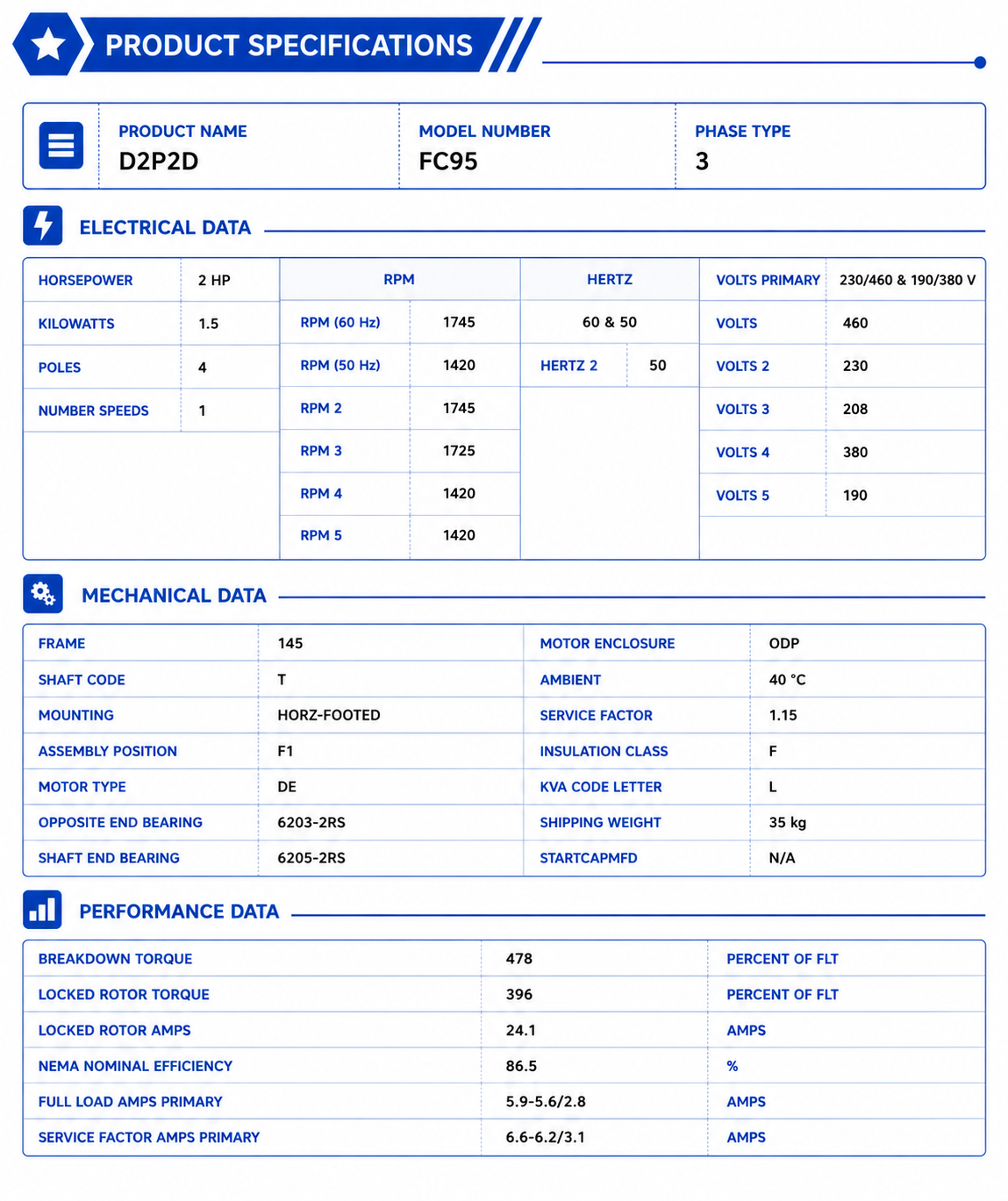

KEY FEATURES

• Model: FC95

• Product Type: Electric Motors

• Horsepower: 2 Hp (1.5 kW)

• Voltage: 230/460 V @ 60 Hz / 190/380 V @ 50 Hz – 3 Phase

• Speed: 1745 RPM @ 60 Hz / 1420 RPM @ 50 Hz

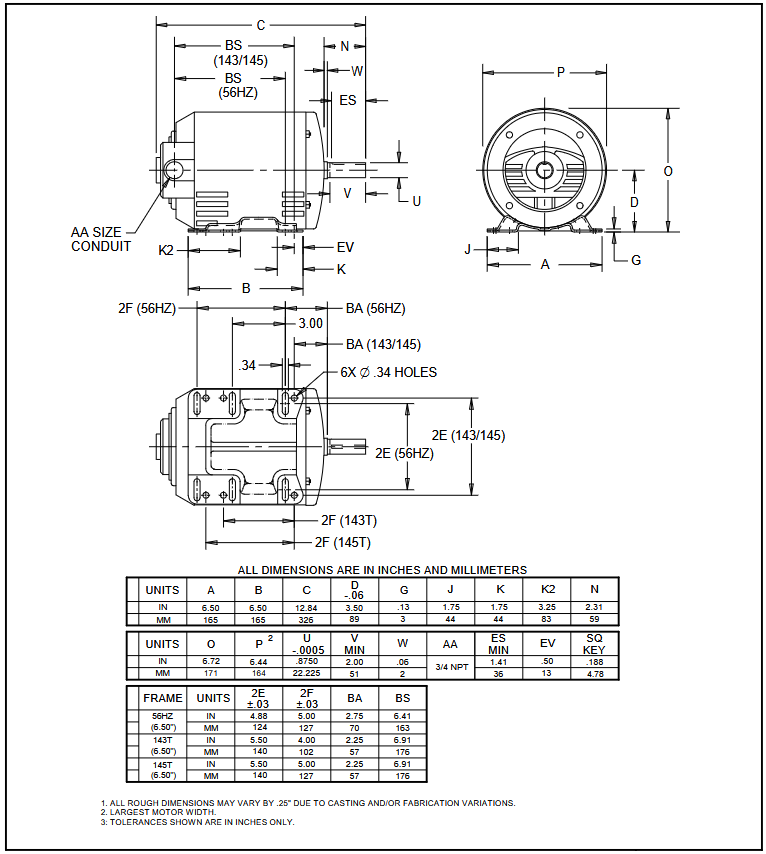

• Frame: 145T

• Enclosure: Open Dripproof (ODP)

• Service Factor: 1.15

• Efficiency: 86.5 %

• Insulation Class: F

• Design Code: NEMA design B – KVA Code L

• Number of Speeds: 1

• Bearings: Opposite end bearing: 6203‑2RS; Shaft end bearing: 6205‑2RS

• Ambient Rating: 40 °C
