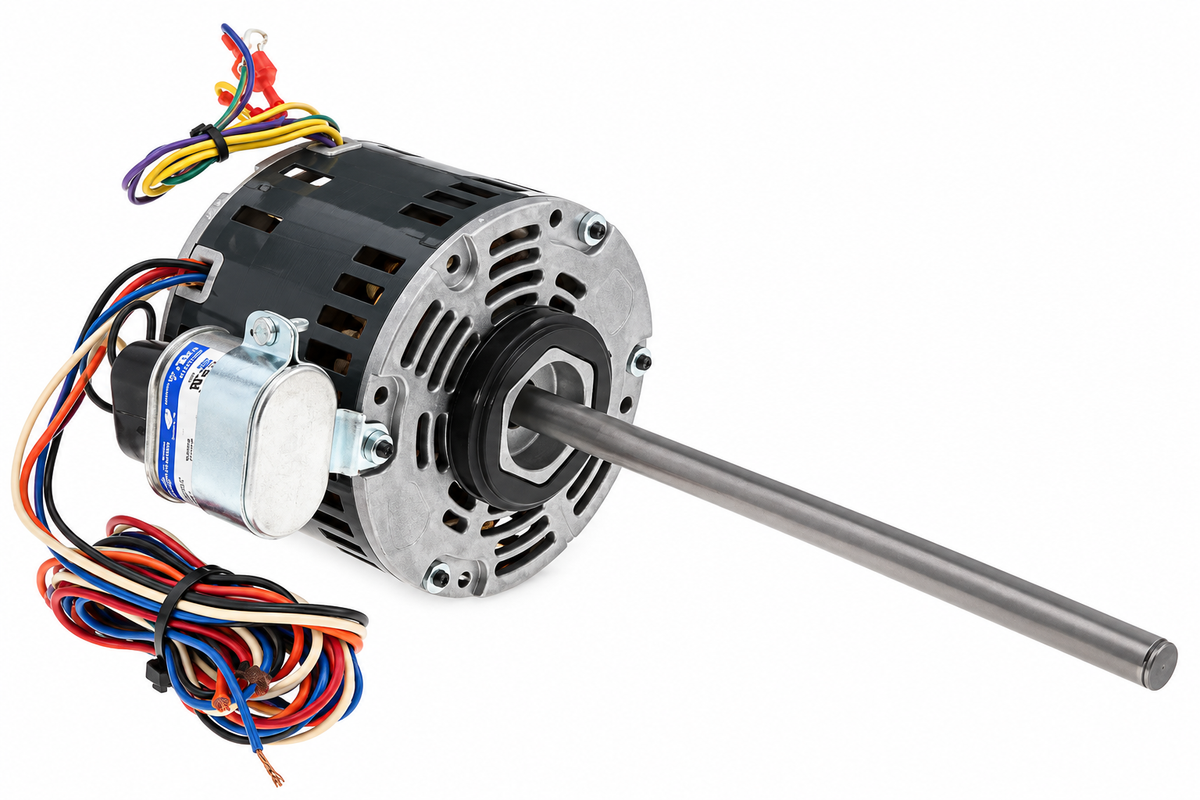

D290A, 1/10‑1/15‑1/25‑1/40Hp, 1050 RPM, 115 V, 1 Ph, 60 Hz, Open Air Over, Frame 42

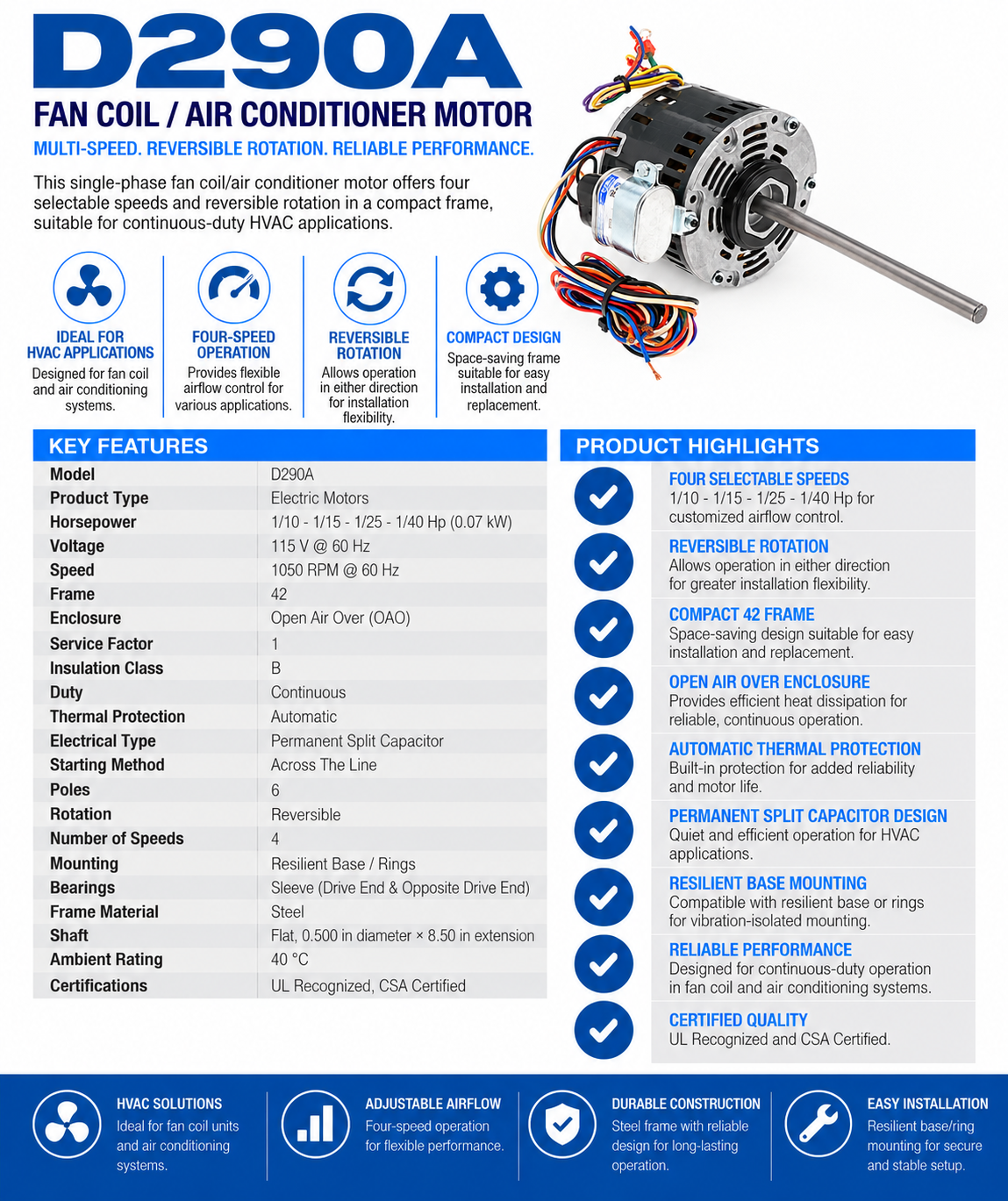

This single-phase fan coil/air conditioner motor offers four selectable speeds and reversible rotation in a compact frame, suitable for continuous-duty HVAC applications.

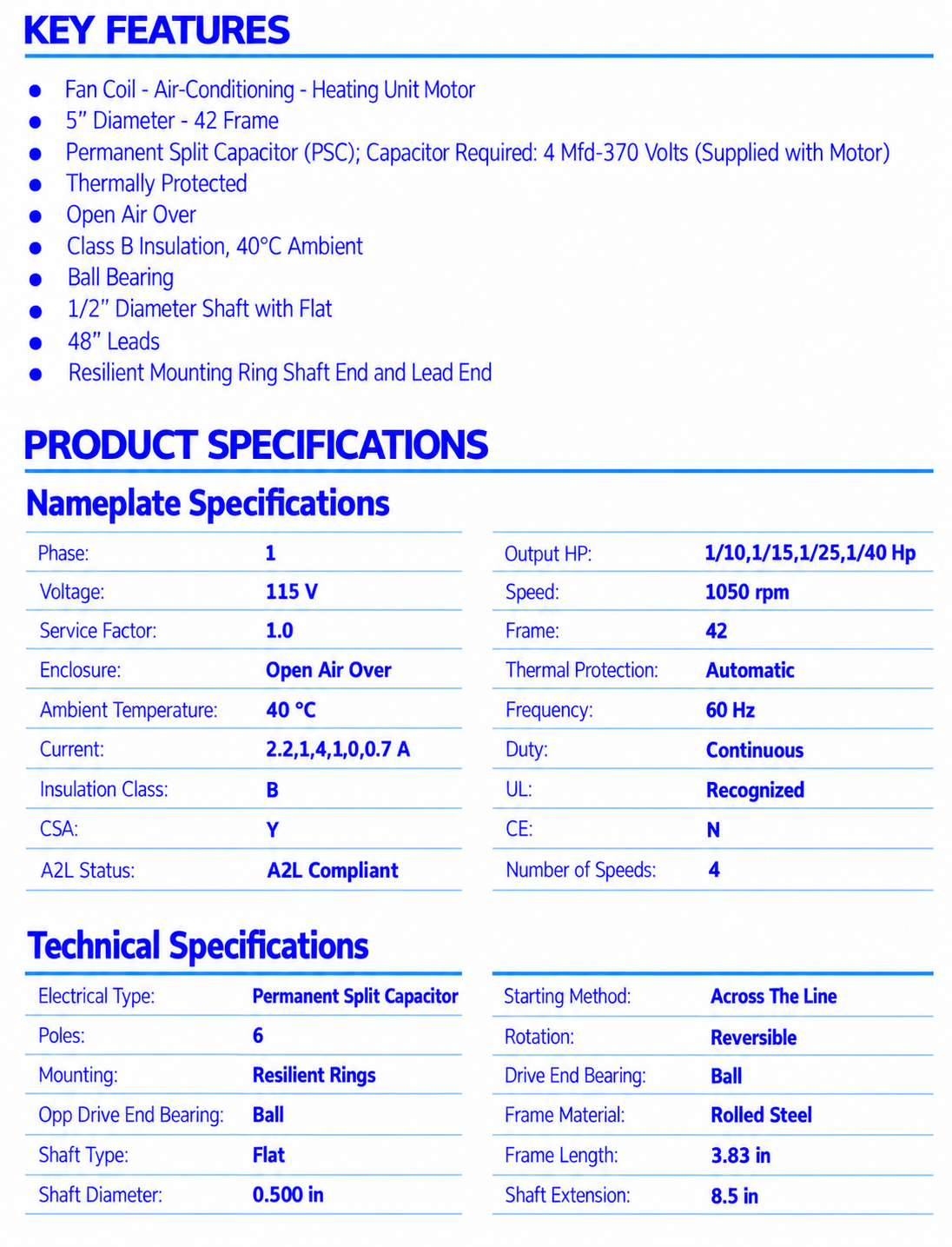

KEY FEATURES

• Model: D290A

• Product Type: Electric Motors

• Horsepower: 1/10‑1/15‑1/25‑1/40 Hp (0.07 kW)

• Voltage: 115 V @ 60 Hz

• Speed: 1050 RPM @ 60 Hz

• Frame: 42

• Enclosure: Open Air Over (OAO)

• Service Factor: 1

• Insulation Class: B

• Duty: Continuous

• Thermal Protection: Automatic

• Electrical Type: Permanent Split Capacitor

• Starting Method: Across The Line

• Poles: 6

• Rotation: Reversible

• Mounting: Resilient Base / Rings

• Bearings: Sleeve (Drive End & Opposite Drive End)

• Frame Material: Steel

• Shaft: Flat, 0.500 in diameter × 8.50 in extension

• Ambient Rating: 40 °C

• Certifications: UL Recognized, CSA Certified

The motor’s four-speed capability, reversible operation, and compact open-air-over enclosure make it versatile for HVAC fan coil and air-conditioning unit applications.
