D1061, 0.05 Hp (1/20 Hp), 1550/1300/1050 RPM, 115 V, 1 Ph, 60 Hz, OAO, Frame 4.4

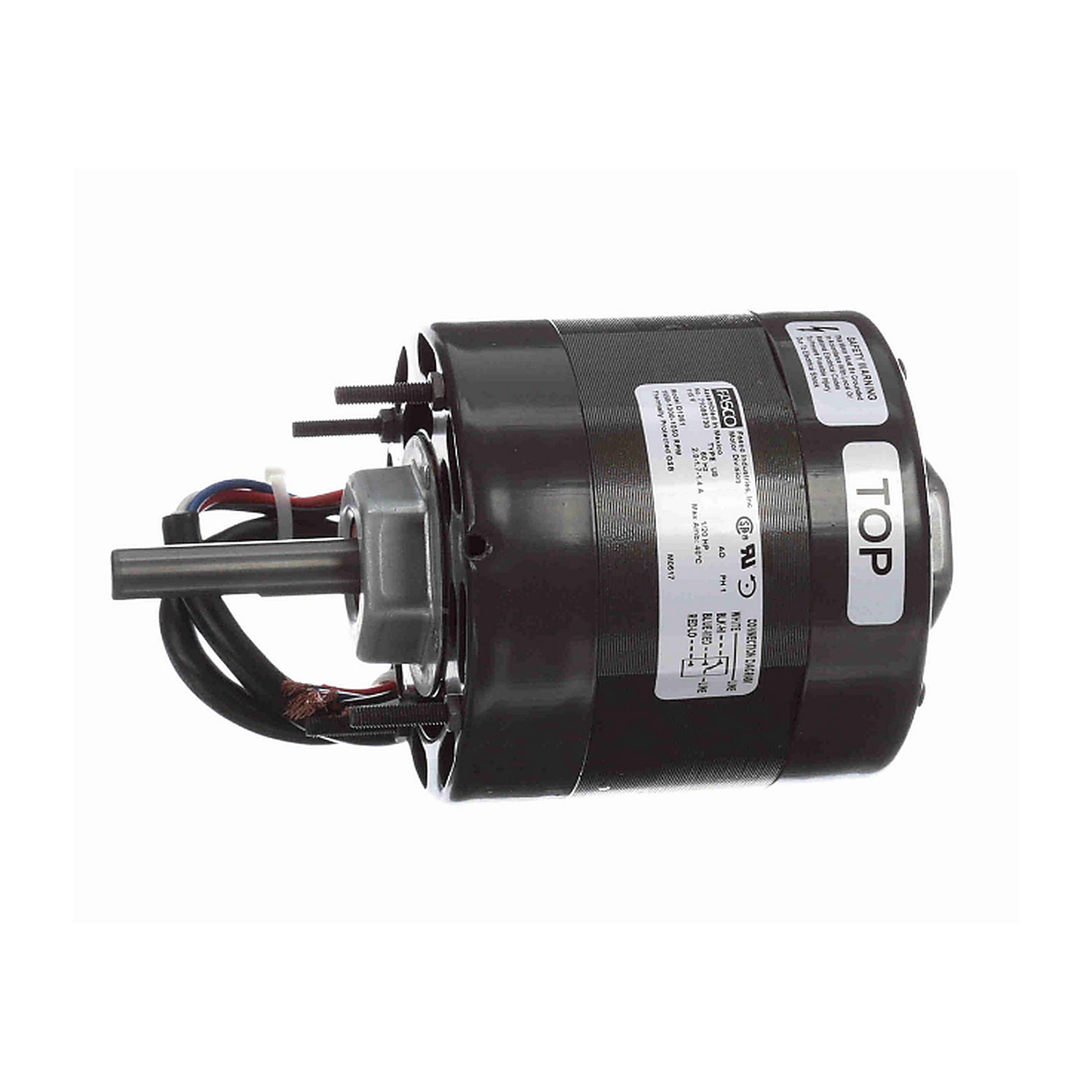

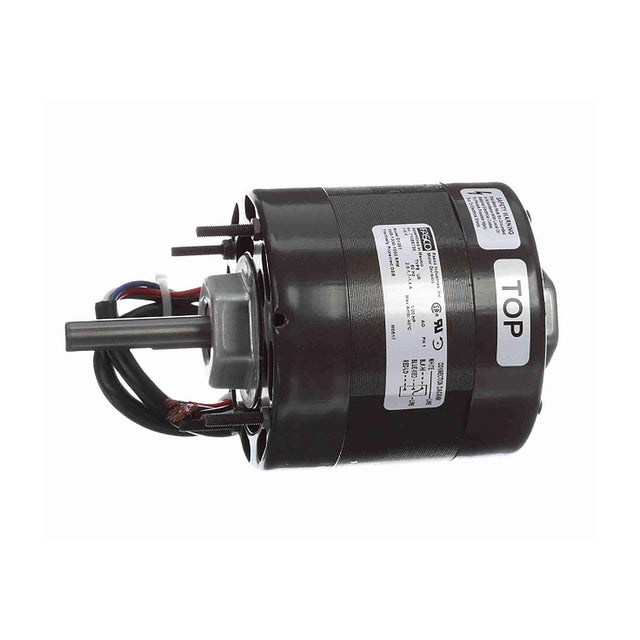

This single‑phase shaded‑pole OEM replacement motor provides three selectable speeds and is designed for air‑over cooling in compact ventilation applications.

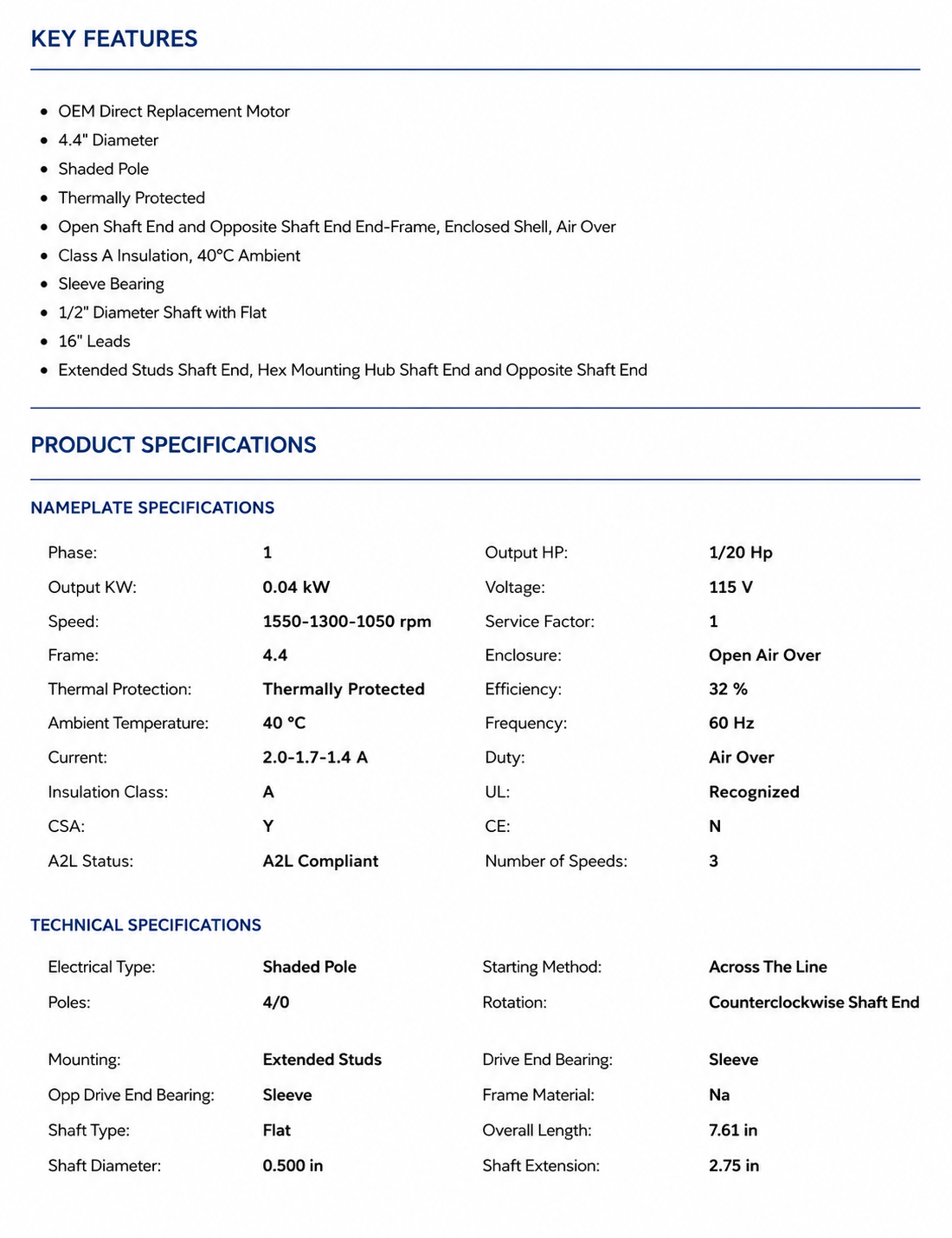

KEY FEATURES

• Model: D1061

• Product Type: OEM Replacement Motor

• Horsepower: 0.05 Hp (0.04 kW)

• Voltage: 115 V @ 60 Hz

• Speed: 1550 RPM / 1300 RPM / 1050 RPM

• Frame: 4.4

• Enclosure: Open Air Over (OAO)

• Phase: 1 Phase

• Service Factor: 1

• Insulation Class: A

• Thermal Protection: Thermally Protected

• Number of Speeds: 3

• Rotation: Counterclockwise Shaft End (CCWSE)

• Bearing Type: Sleeve Bearings

• Shaft: 1/2" × 2.75" with flat

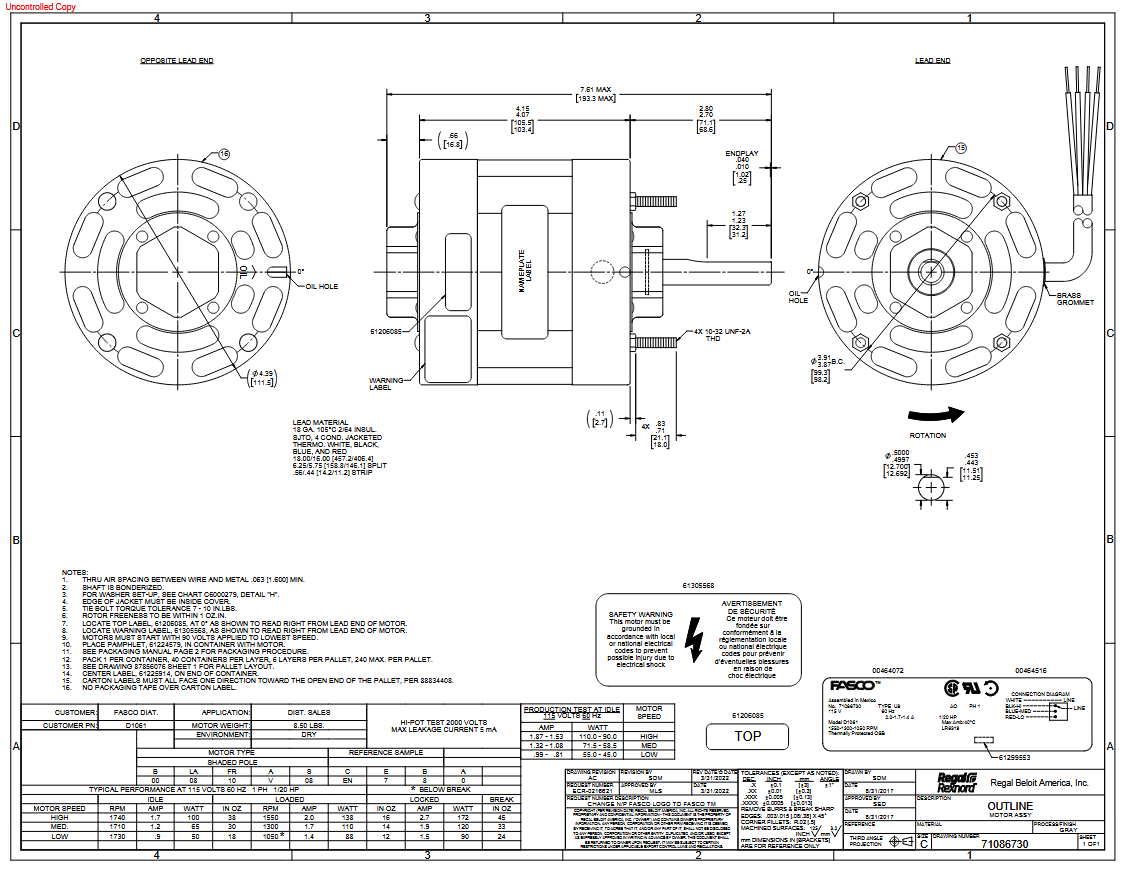

• Overall Length: 7.61 in

• Mounting: Extended Studs

• Ambient Rating: 40 °C

• Cross References: 7108‑2425, 7108‑6848, 1AGF8

The motor’s compact multi‑speed design and thermal protection make it well‑suited for efficient ventilation applications in tight spaces.
