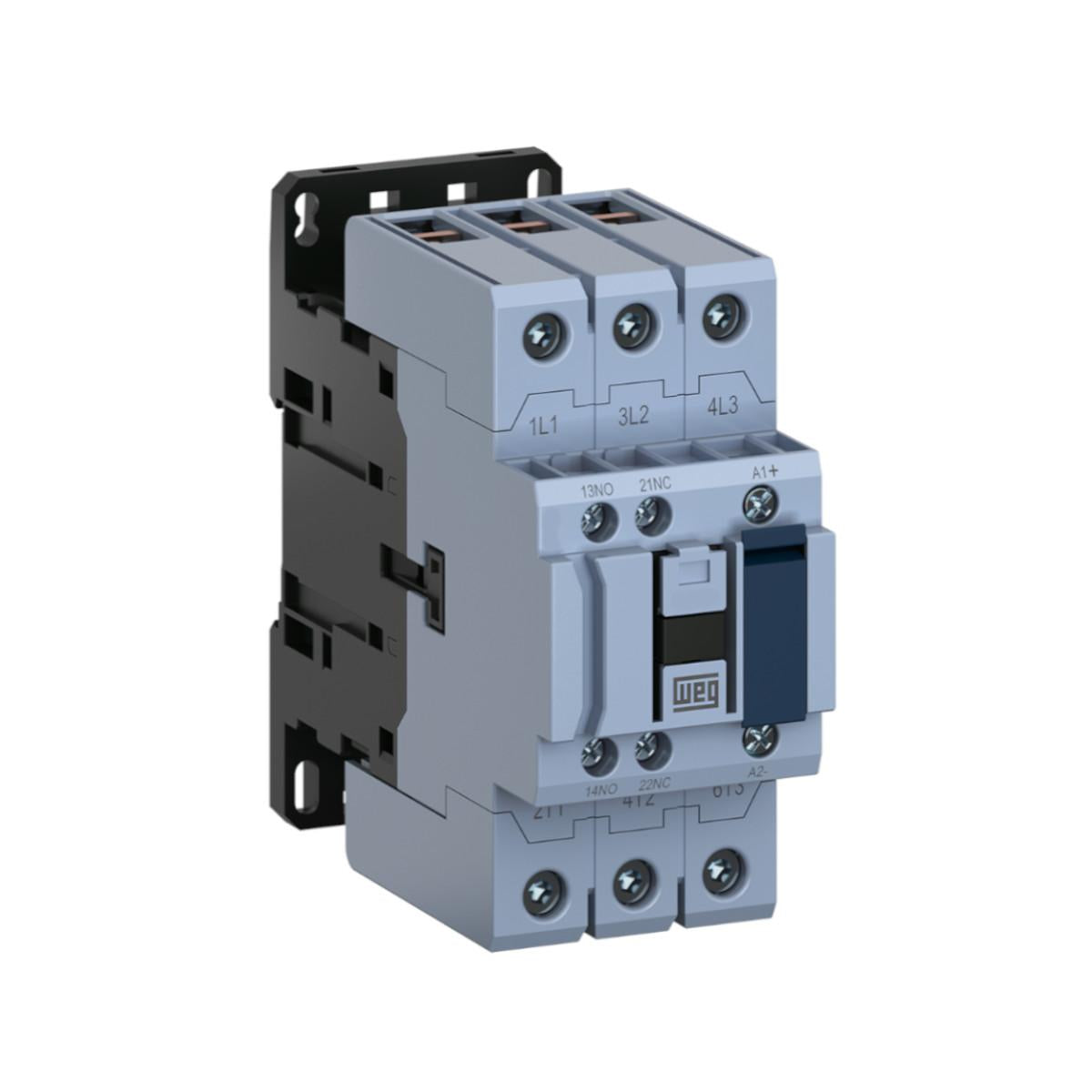

CWB40-11-30D24, 40A, 230V, 50/60Hz, IP20

This contactor is designed for industrial applications, providing reliable switching for electrical circuits. Ideal for controlling motors and other electrical loads, it ensures efficient operation and safety.

• Rated Insulation Voltage Ui (IEC 60974-4-1): 1000 V
• Rated Insulation Voltage Ui (UL, CSA): 600 V
• Rated Operational Frequency: 25 Hz - 400 Hz
• Mechanical Lifespan (AC/DC): 6 million
• Electrical Lifespan AC3: 1.6 million
• Degree Protection Main Terminal: IP10
• Degree of Protection IP (Control Circuit): IP20
• Rated Current: 40 A
• Rated Current AC4: 18.5 A
• Rated Current AC1: 60 A
• Rated Operational Voltage Ue (IEC 60947-4-1): 1000 V
• Rated Operational Voltage Ue (UL/CSA): 600 V

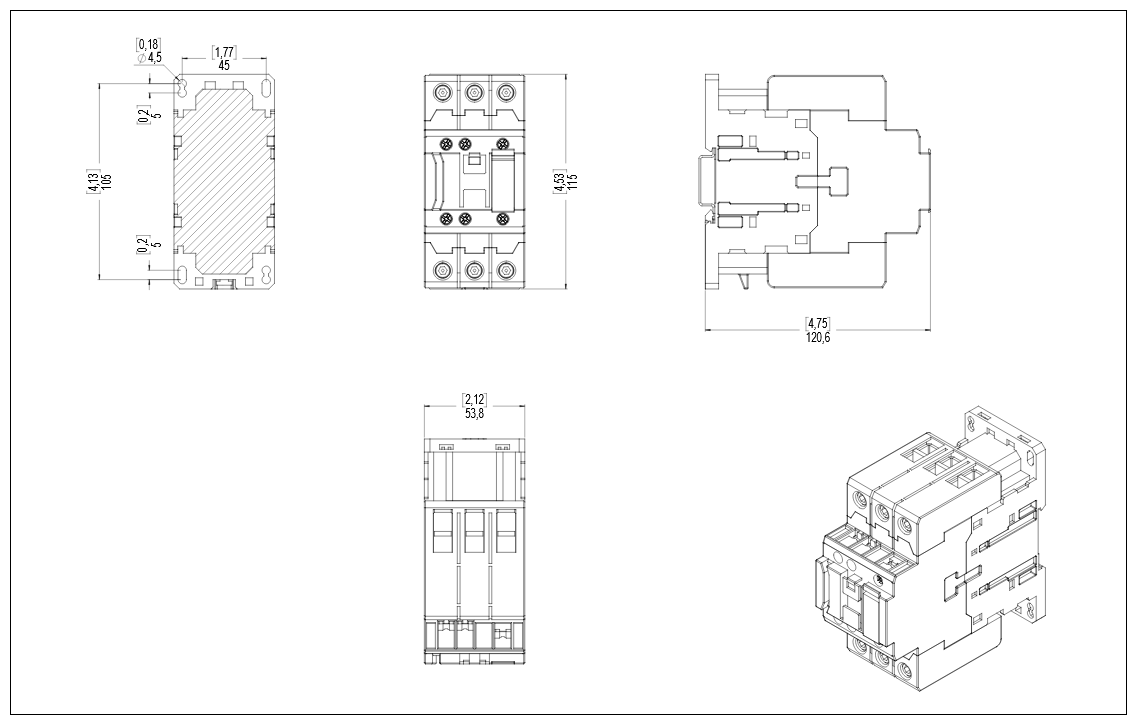

• Height: 115 mm (4.53 in)
• Width: 54 mm (2.13 in)
• Depth: 120.7 mm (4.75 in)
• Weight: 0.91 kg
• Main Contact: 3 NO
• Control Voltage: 230V 50/60Hz
• Terminal Type: Screw

With robust construction and high endurance, this contactor is suitable for heavy-duty applications.
