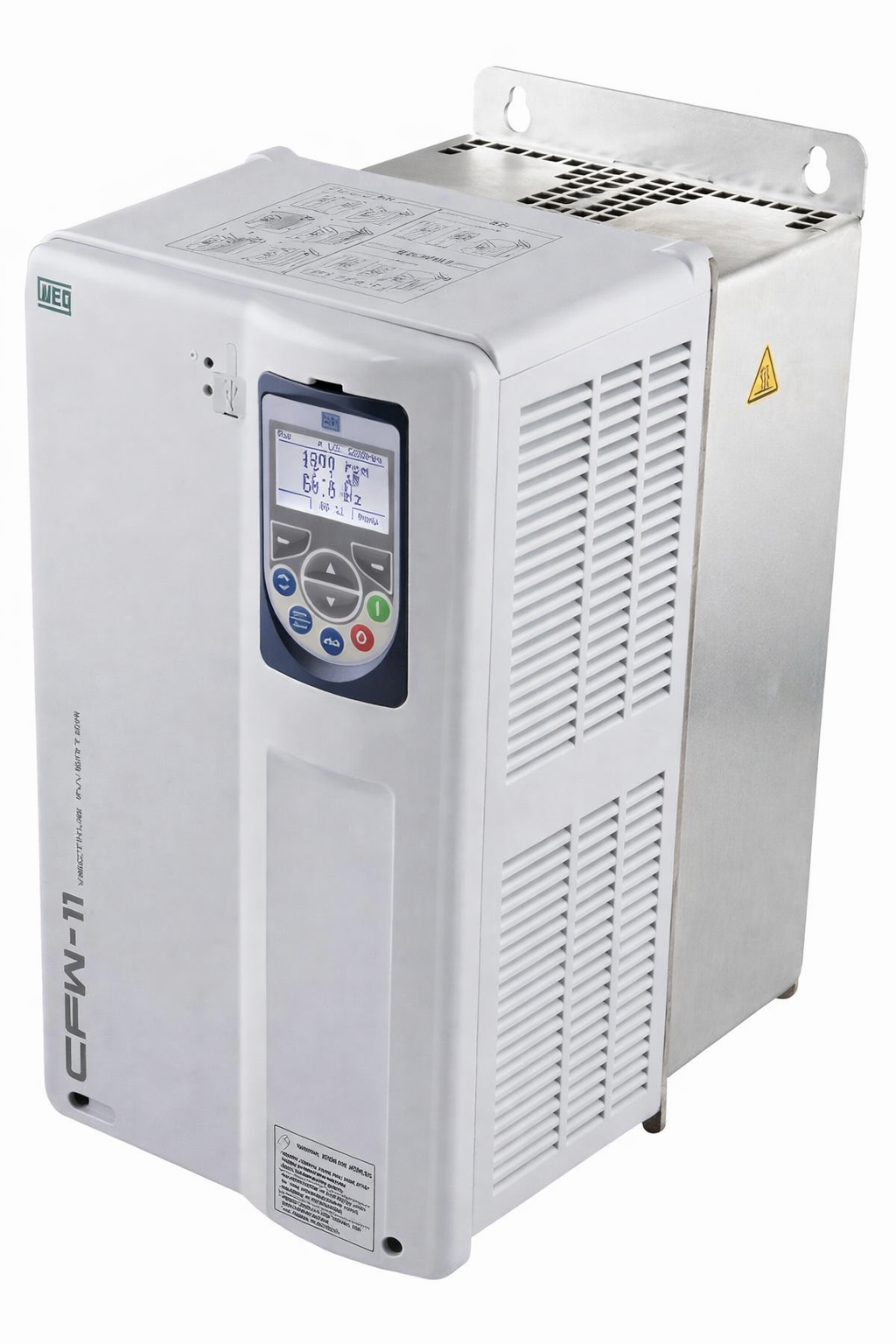

CFW110070T2ON1Z, 20Hp, 230V, 3 PHASE INPUT / 3 PHASE OUTPUT, CFW 11 Low Voltage VFD

CFW110070T2ON1Z, 20Hp, 230V, 3 PHASE INPUT / 3 PHASE OUTPUT, CFW 11 Low Voltage VFD

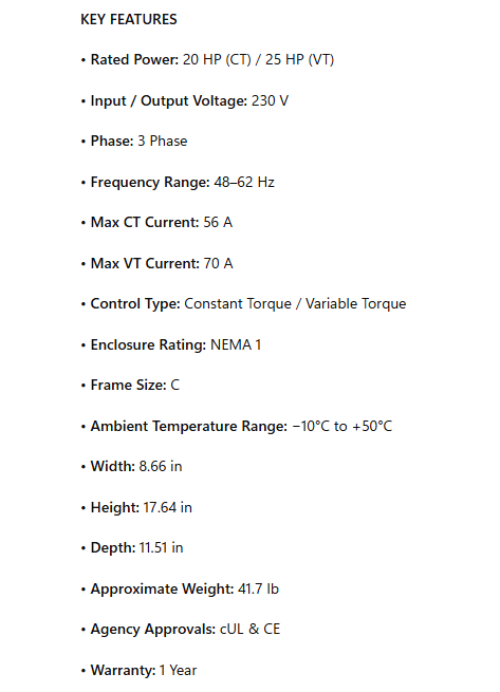

KEY FEATURES

• Rated Power: 20 HP (CT) / 25 HP (VT)

• Input / Output Voltage: 230 V

• Phase: 3 Phase

• Frequency Range: 48–62 Hz

• Max CT Current: 56 A

• Max VT Current: 70 A

• Control Type: Constant Torque / Variable Torque

• Enclosure Rating: NEMA 1

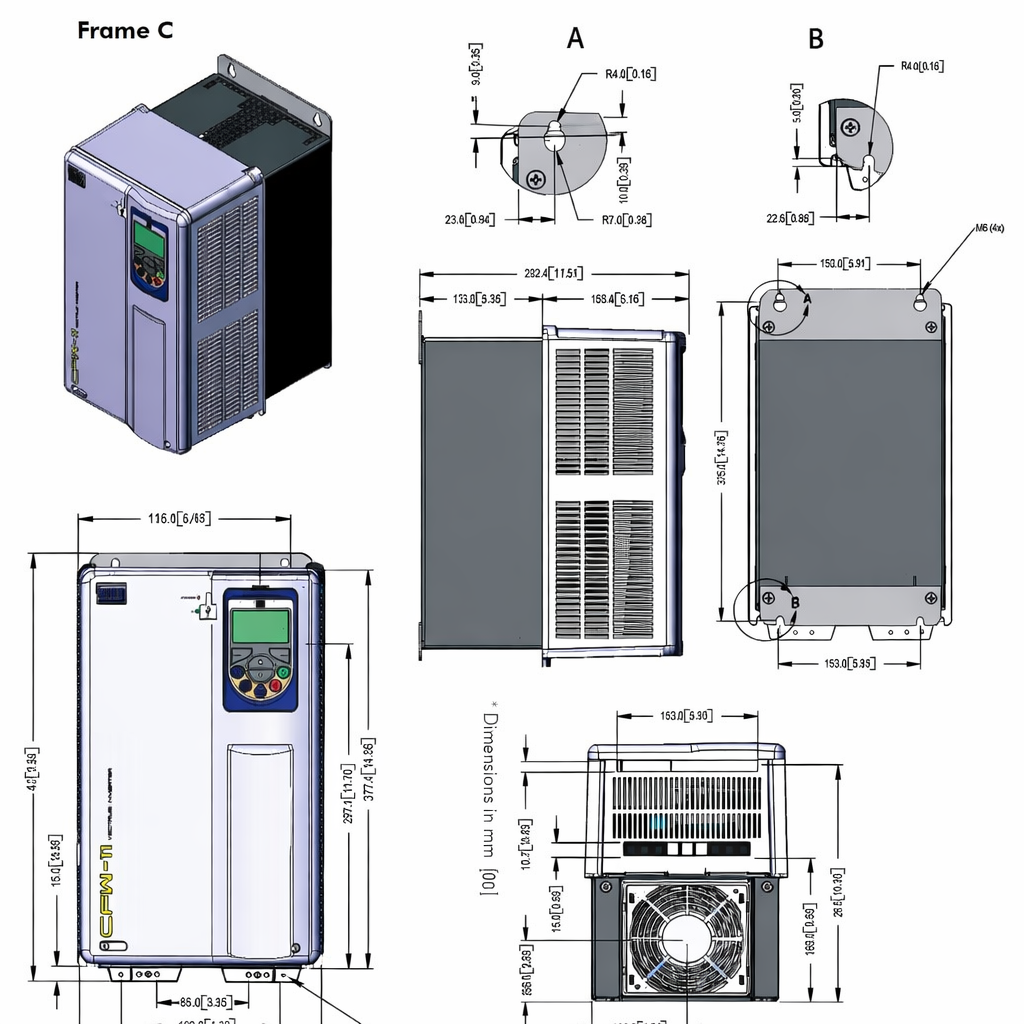

• Frame Size: C

• Ambient Temperature Range: −10°C to +50°C

• Width: 8.66 in

• Height: 17.64 in

• Depth: 11.51 in

• Approximate Weight: 41.7 lb

• Agency Approvals: cUL & CE

• Warranty: 1 Year
