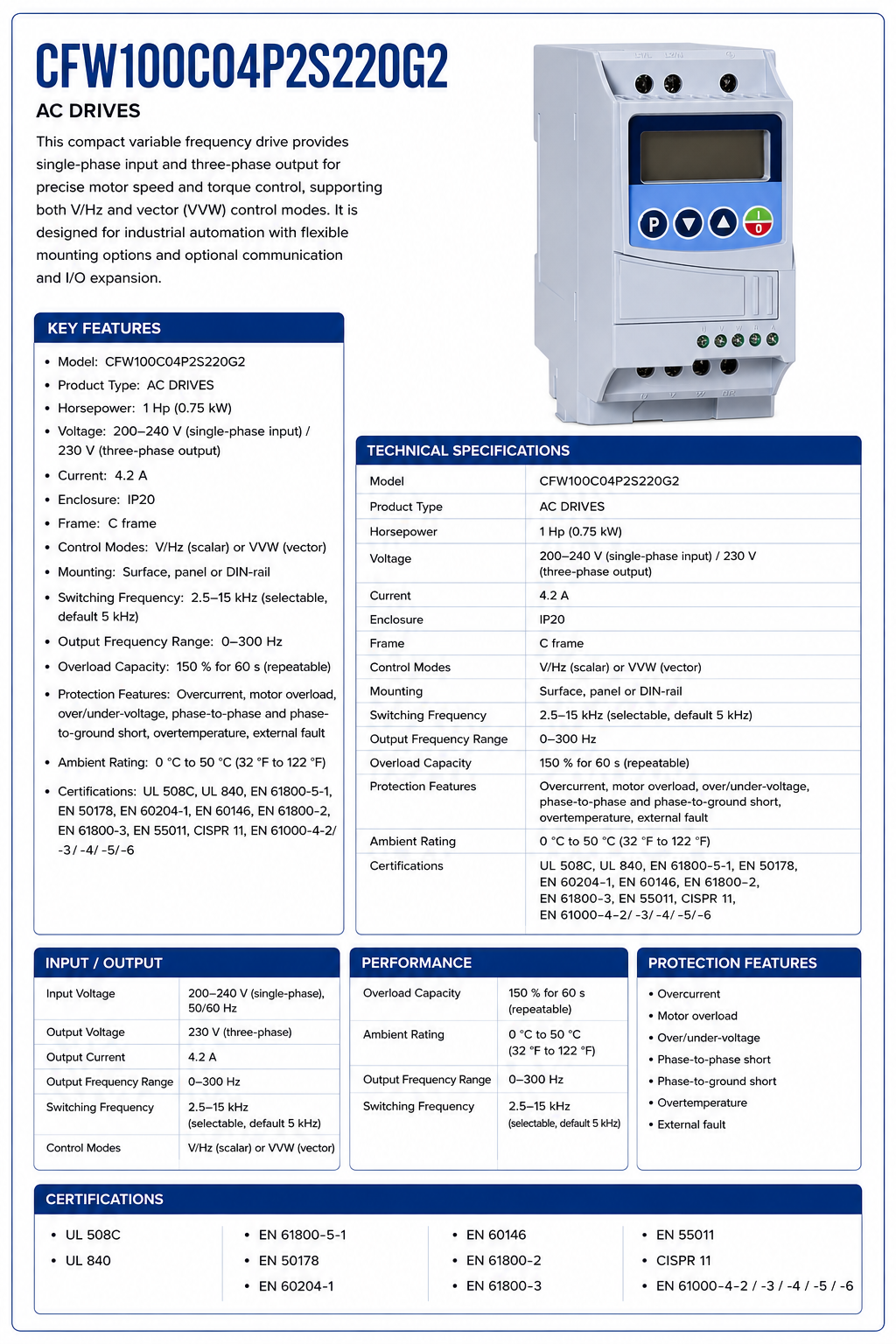

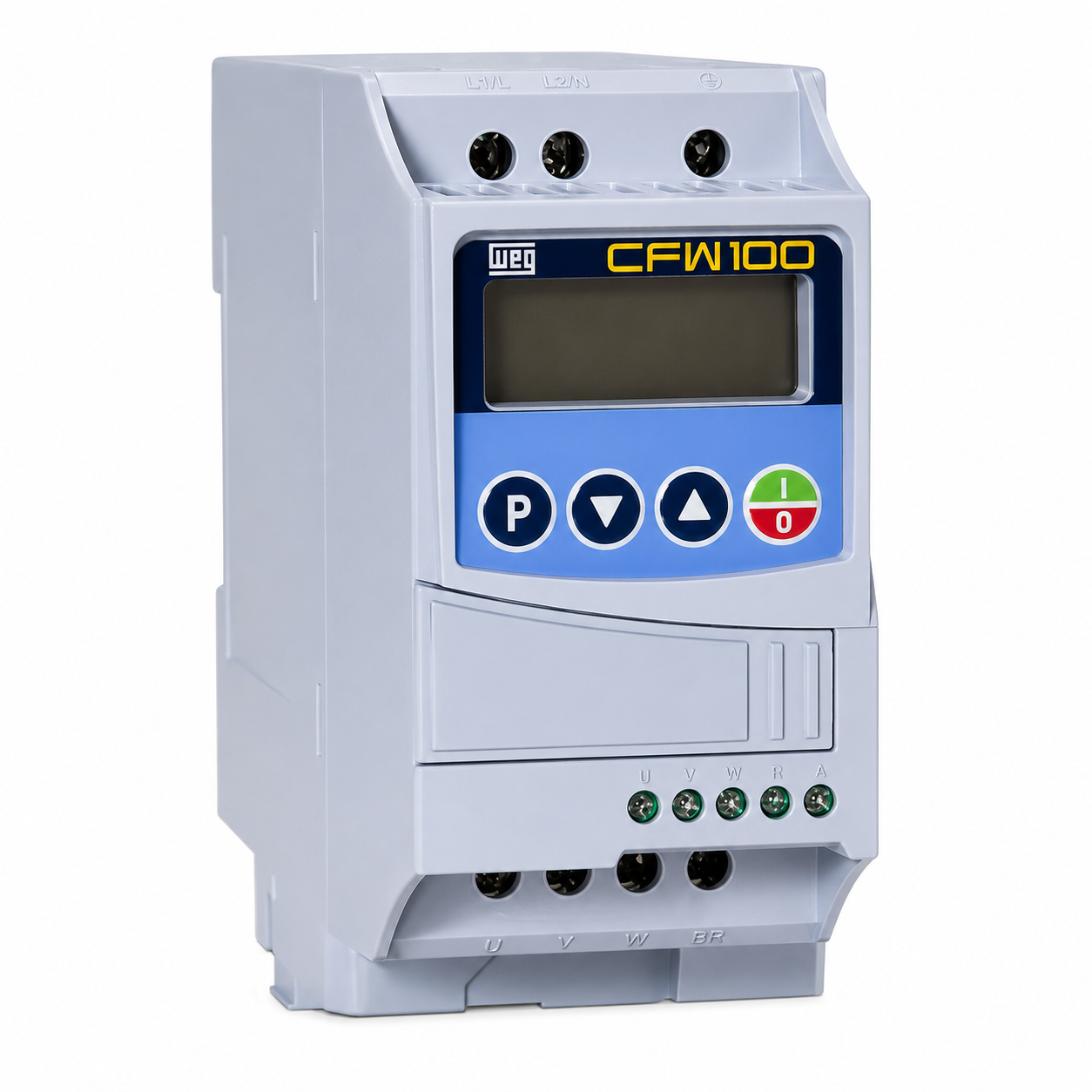

CFW100C04P2S220G2, 1 Hp, 230 V, 1‑Phase In / 3‑Phase Out, IP20, Frame C

This compact variable frequency drive provides single‑phase input and three‑phase output for precise motor speed and torque control, supporting both V/Hz and vector (VVW) control modes. It is designed for industrial automation with flexible mounting options and optional communication and I/O expansion.

KEY FEATURES

• Model: CFW100C04P2S220G2

• Product Type: AC DRIVES

• Horsepower: 1 Hp (0.75 kW)

• Voltage: 200‑240 V (single‑phase input) / 230 V (three‑phase output)

• Current: 4.2 A

• Enclosure: IP20

• Frame: C frame

• Control Modes: V/Hz (scalar) or VVW (vector)

• Mounting: Surface, panel or DIN‑rail

• Switching Frequency: 2.5–15 kHz (selectable, default 5 kHz)

• Output Frequency Range: 0–300 Hz

• Overload Capacity: 150 % for 60 s (repeatable)

• Protection Features: Overcurrent, motor overload, over/under‑voltage, phase‑to‑phase and phase‑to‑ground short, overtemperature, external fault

• Ambient Rating: 0 °C to 50 °C (32 °F to 122 °F)

• Certifications: UL 508C, UL 840, EN 61800‑5‑1, EN 50178, EN 60204‑1, EN 60146, EN 61800‑2, EN 61800‑3, EN 55011, CISPR 11, EN 61000‑4‑2/‑3/‑4/‑5/‑6
