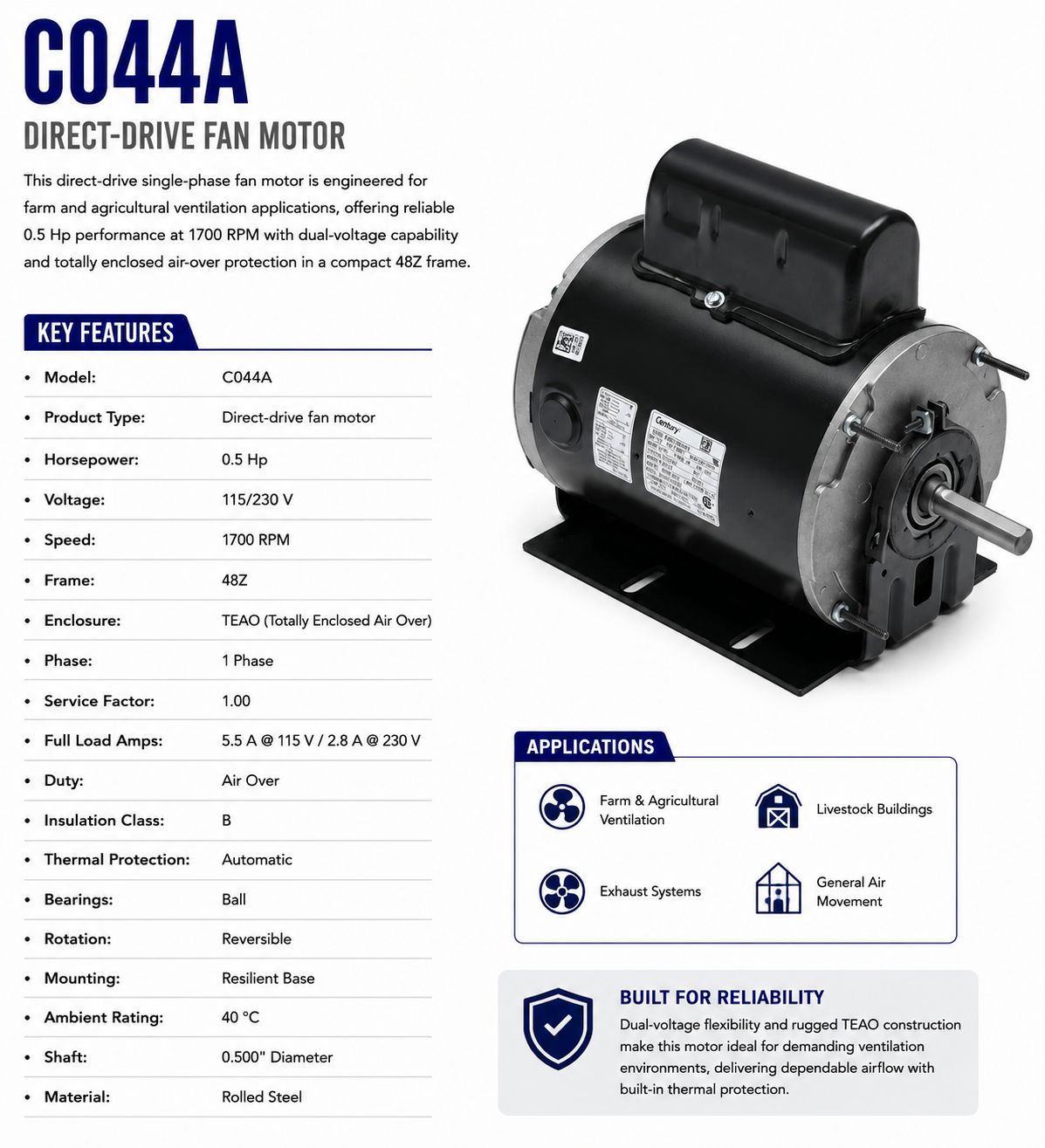

C044A, 0.5 Hp, 1700 RPM, 115/230 V, 1 Ph, 60 Hz, TEAO, Frame 48Z

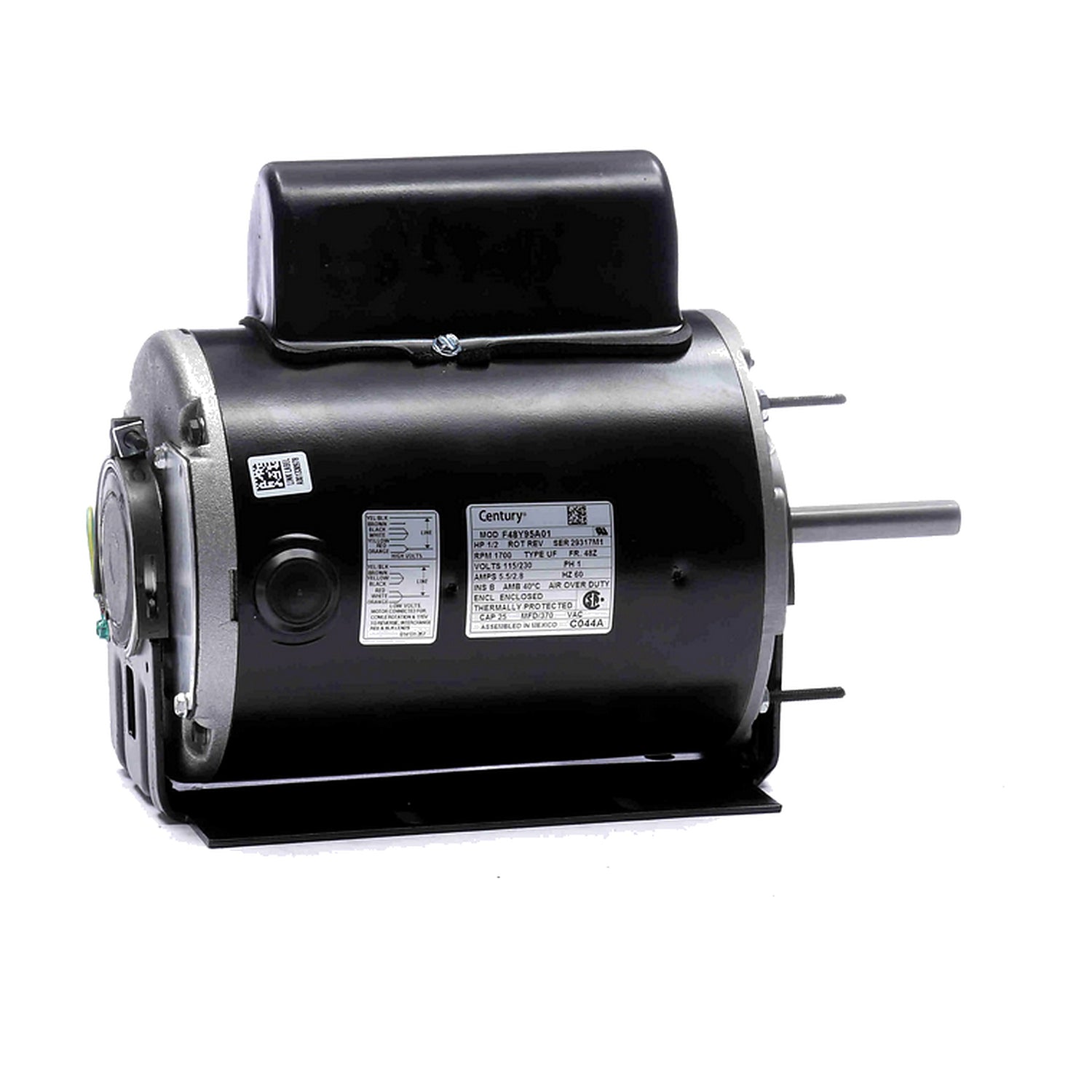

This direct‑drive single‑phase fan motor is engineered for farm and agricultural ventilation applications, offering reliable 0.5 Hp performance at 1700 RPM with dual‑voltage capability and totally enclosed air‑over protection in a compact 48Z frame.

KEY FEATURES

• Model: C044A

• Product Type: Direct‑drive fan motor

• Horsepower: 0.5 Hp

• Voltage: 115/230 V

• Speed: 1700 RPM

• Frame: 48Z

• Enclosure: TEAO (Totally Enclosed Air Over)

• Phase: 1 Phase

• Service Factor: 1.00

• Full Load Amps: 5.5 A @ 115 V / 2.8 A @ 230 V

• Duty: Air Over

• Insulation Class: B

• Thermal Protection: Automatic

• Bearings: Ball

• Rotation: Reversible

• Mounting: Resilient Base

• Ambient Rating: 40 °C

• Shaft: 0.500″ Diameter

• Material: Rolled Steel

The motor’s dual‑voltage flexibility and rugged TEAO construction make it well‑suited for demanding ventilation environments, delivering dependable airflow with built‑in thermal protection.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

CROSS REFERENCE

• 1899

• 769A
