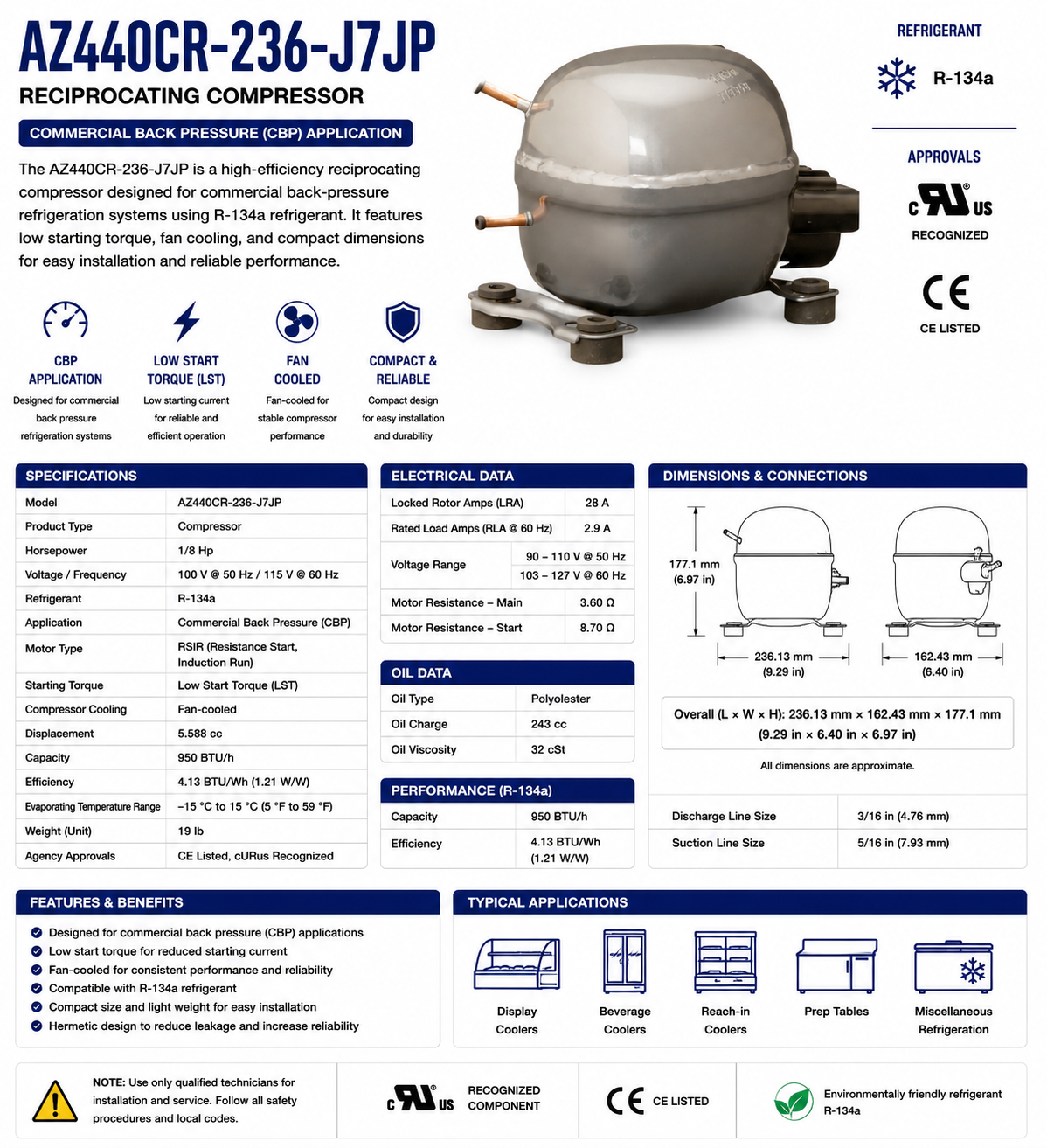

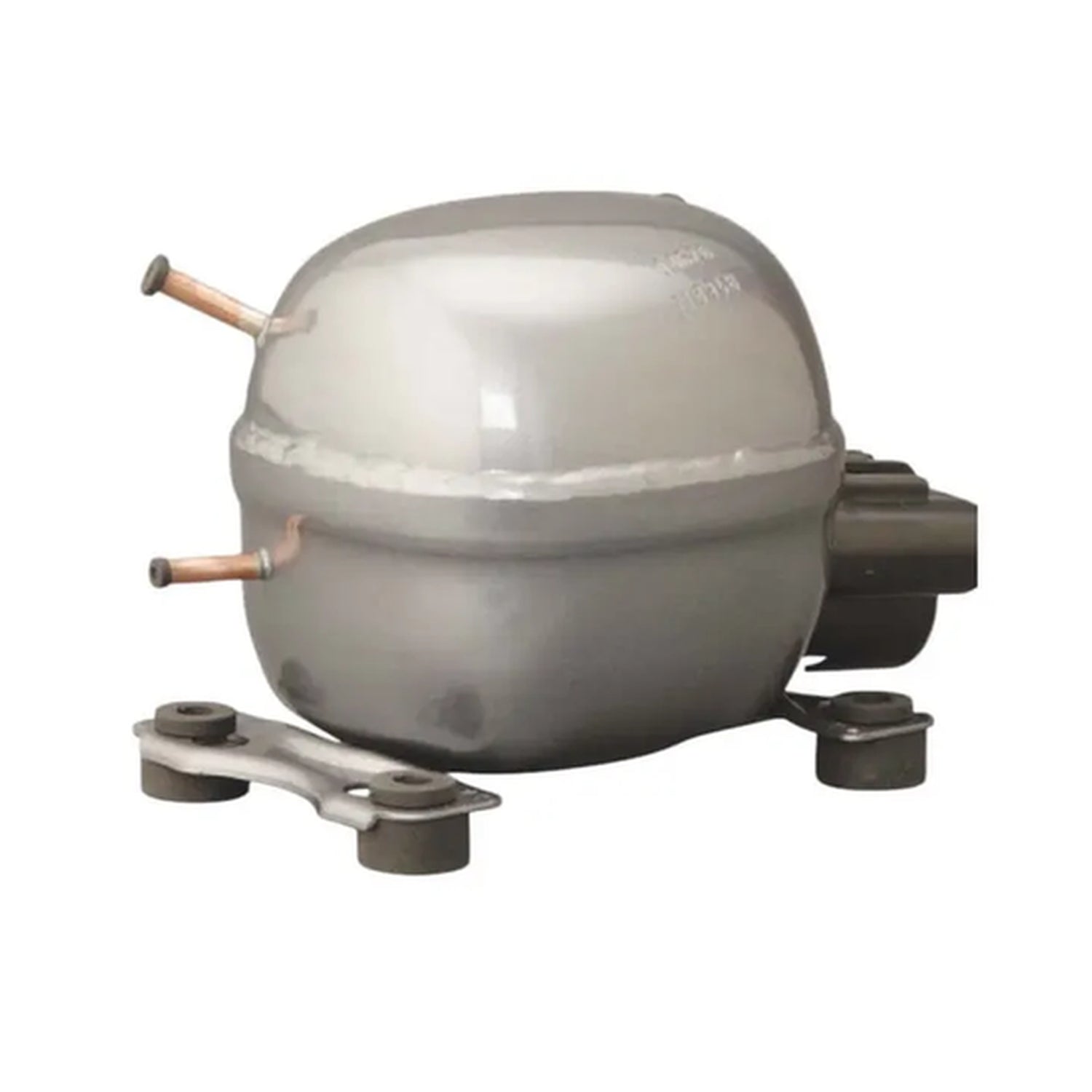

AZ440CR‑236‑J7JP, Reciprocating Compressor, 1/8 Hp, 115 V @ 60 Hz / 100 V @ 50 Hz, AZA0395YXA

This reciprocating compressor is designed for commercial back‑pressure refrigeration applications using R‑134a refrigerant. It features low starting torque, compact dimensions, and includes essential accessories for installation.

KEY FEATURES

• Model: AZ440CR‑236‑J7JP

• Product Type: Compressor

• Horsepower: 1/8 Hp

• Voltage: 100 V @ 50 Hz / 115 V @ 60 Hz

• Refrigerant: R‑134a

• Application: Commercial Back Pressure (CBP)

• Motor Type: RSIR (Resistance Start, Induction Run)

• Starting Torque: Low Start Torque (LST)

• Cooling: Fan‑cooled

• Weight: 19 lb

• Displacement: 5.588 cc

• Oil Type: Polyolester

• Oil Charge: 243 cc

• Viscosity: 32 cSt

• Locked Rotor Amps (LRA): 28 A

• Rated Load Amps (RLA): 2.9 A @ 60 Hz

• Voltage Range: 90–110 V @ 50 Hz / 103–127 V @ 60 Hz

• Capacity: 950 BTU/h

• Efficiency: 4.13 BTU/Wh (1.21 W/W)

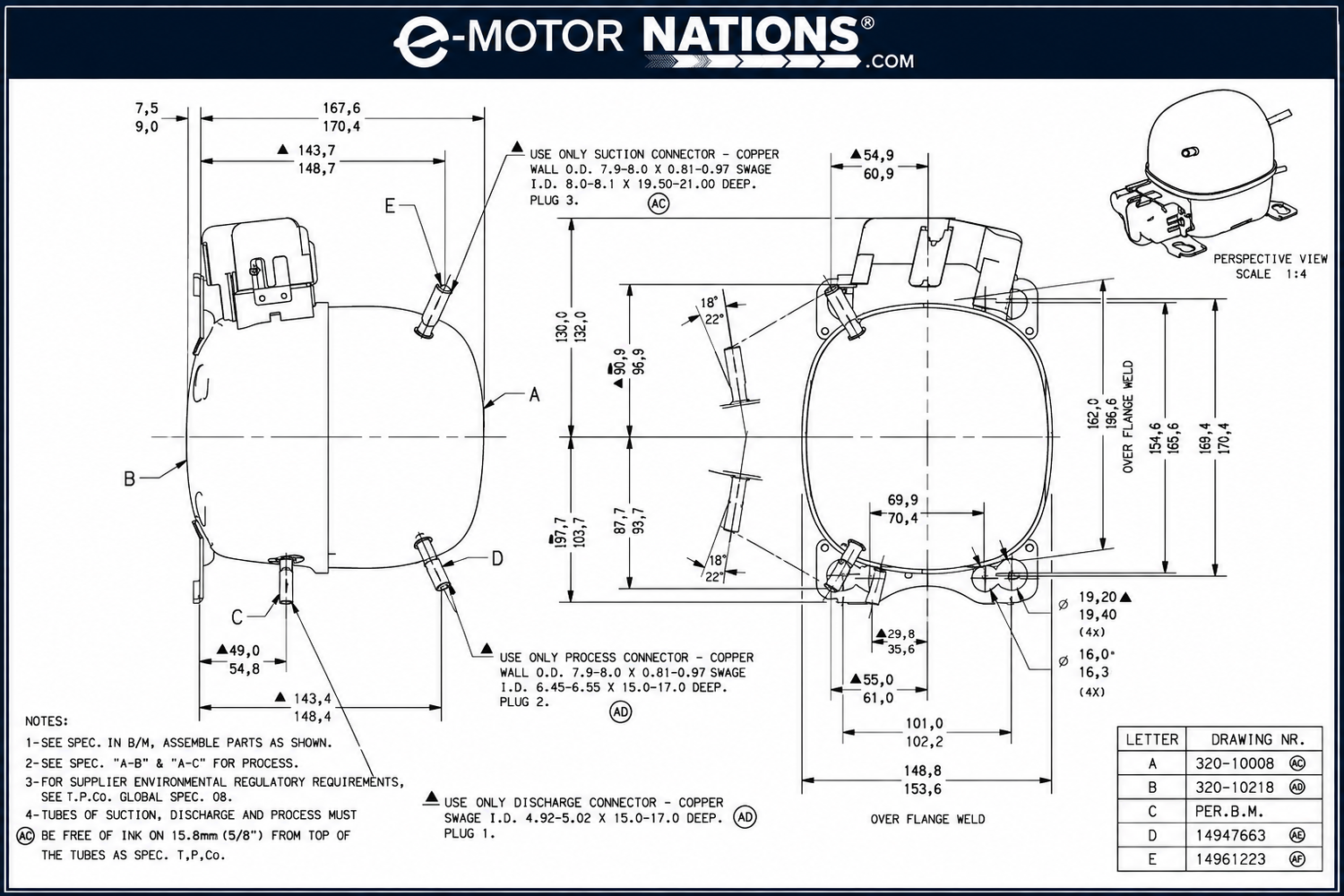

• Dimensions (L×W×H): 236.13 mm × 162.43 mm × 177.1 mm (9.29 in × 6.40 in × 6.97 in)

• Discharge Line Size: 3/16 in (4.76 mm)

• Suction Line Size: 5/16 in (7.93 mm)

• Agency Approvals: CE Listed, cURus Recognized

This compressor offers reliable performance for medium‑temperature refrigeration systems, with low starting current and compact dimensions for easy installation.
