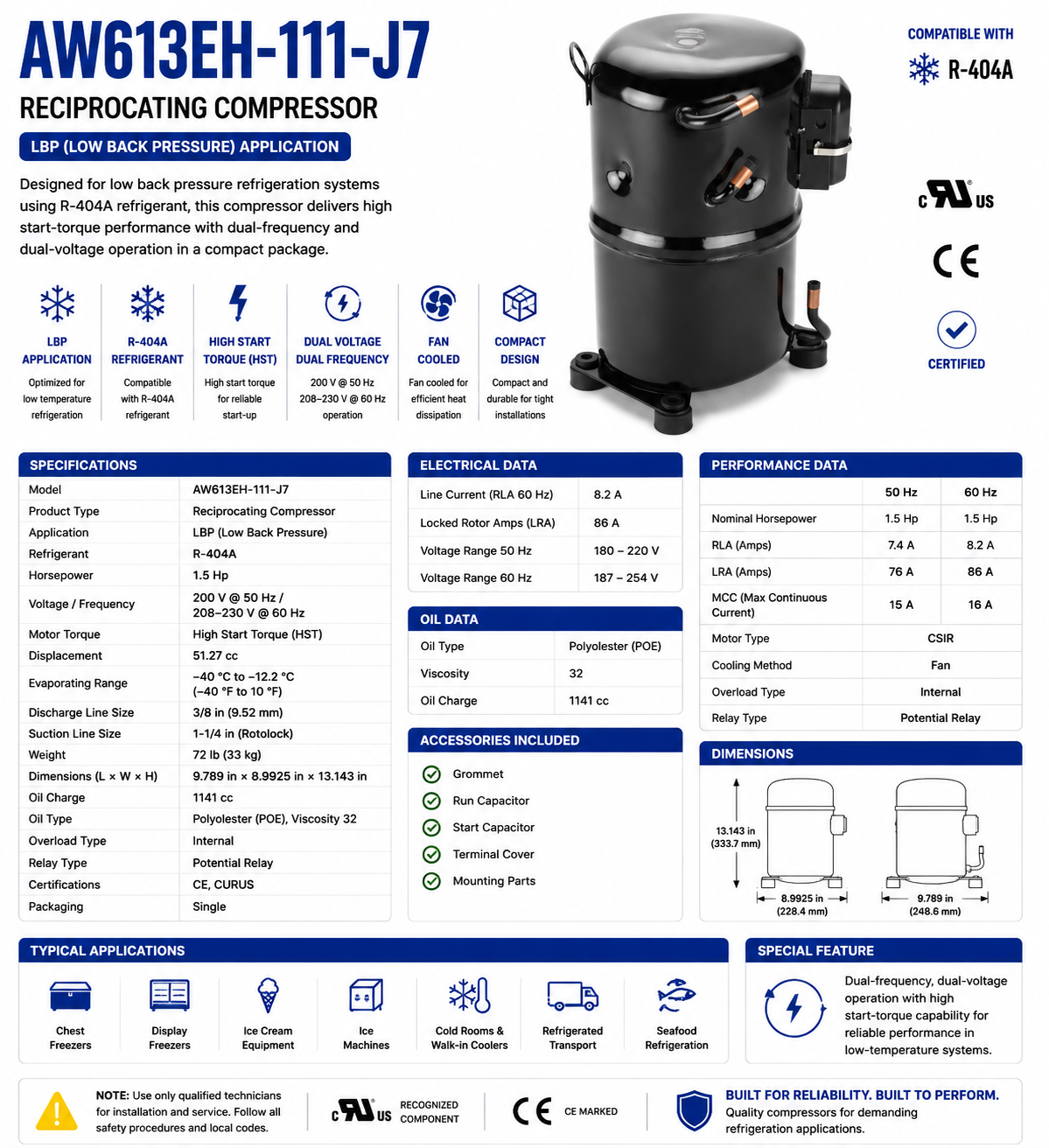

AW613EH-111-J7, Reciprocating Compressor, 1.5 Hp, 208‑230 V @ 60 Hz / 200 V @ 50 Hz, 1 Ph, AWA2460ZXD

This low‑back‑pressure reciprocating compressor is designed for refrigeration applications using R‑404A refrigerant, offering dual‑frequency and dual‑voltage operation with high start‑torque performance in a compact package.

KEY FEATURES

• Model: AW613EH‑111‑J7

• Product Type: Reciprocating Compressor

• Application: LBP (Low Back Pressure)

• Refrigerant: R‑404A

• Horsepower: 1.5 Hp

• Voltage/Frequency: 200 V @ 50 Hz / 208‑230 V @ 60 Hz

• Motor Torque: High Start Torque (HST)

• Displacement: 51.27 cc

• Evaporating Range: –40 °C to –12.2 °C (–40 °F to 10 °F)

• Discharge Line Size: 3/8 in (9.52 mm)

• Suction Line Size: 1‑1/4 in (Rotolock)

• Weight: 72 lb (33 kg)

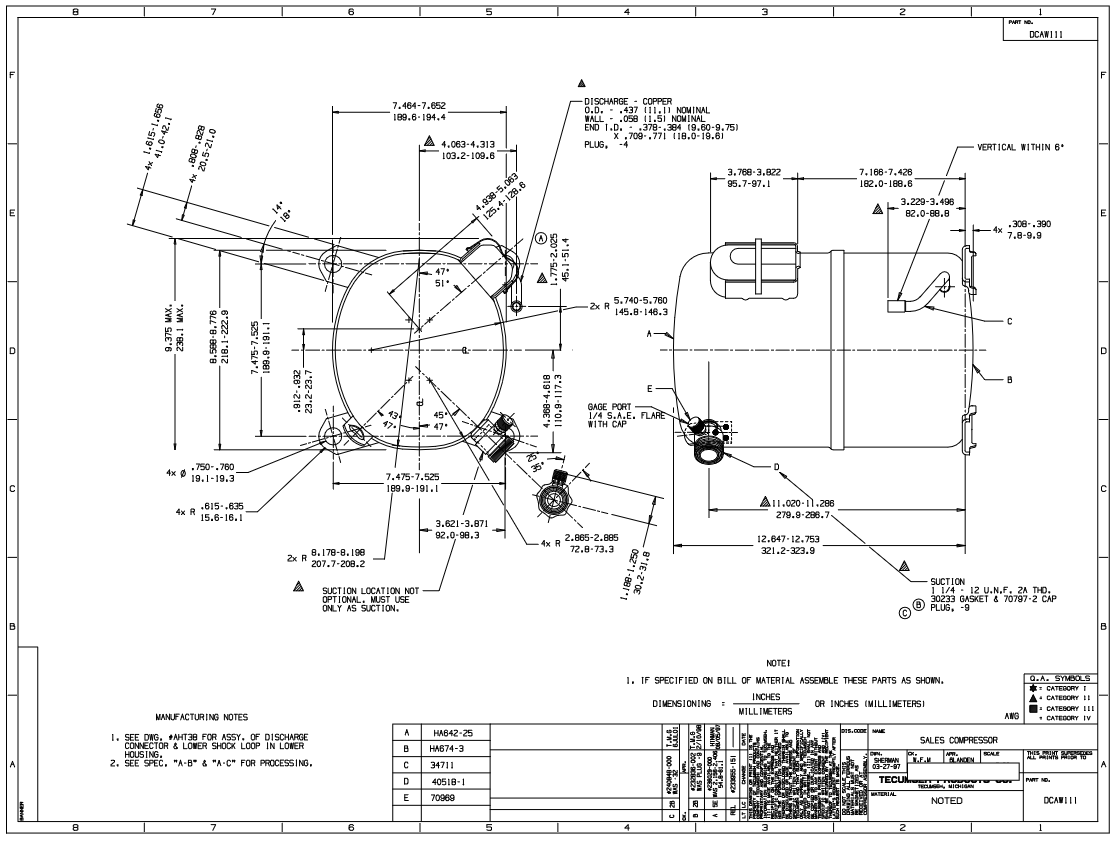

• Dimensions (L × W × H): 9.789 in × 8.9925 in × 13.143 in

• Oil Charge: 1141 cc

• Oil Type: Polyolester, Viscosity 32

• Accessories Included: Grommet, Run Capacitor, Start Capacitor, Terminal Cover, Mounting Parts

• Overload Type: Internal

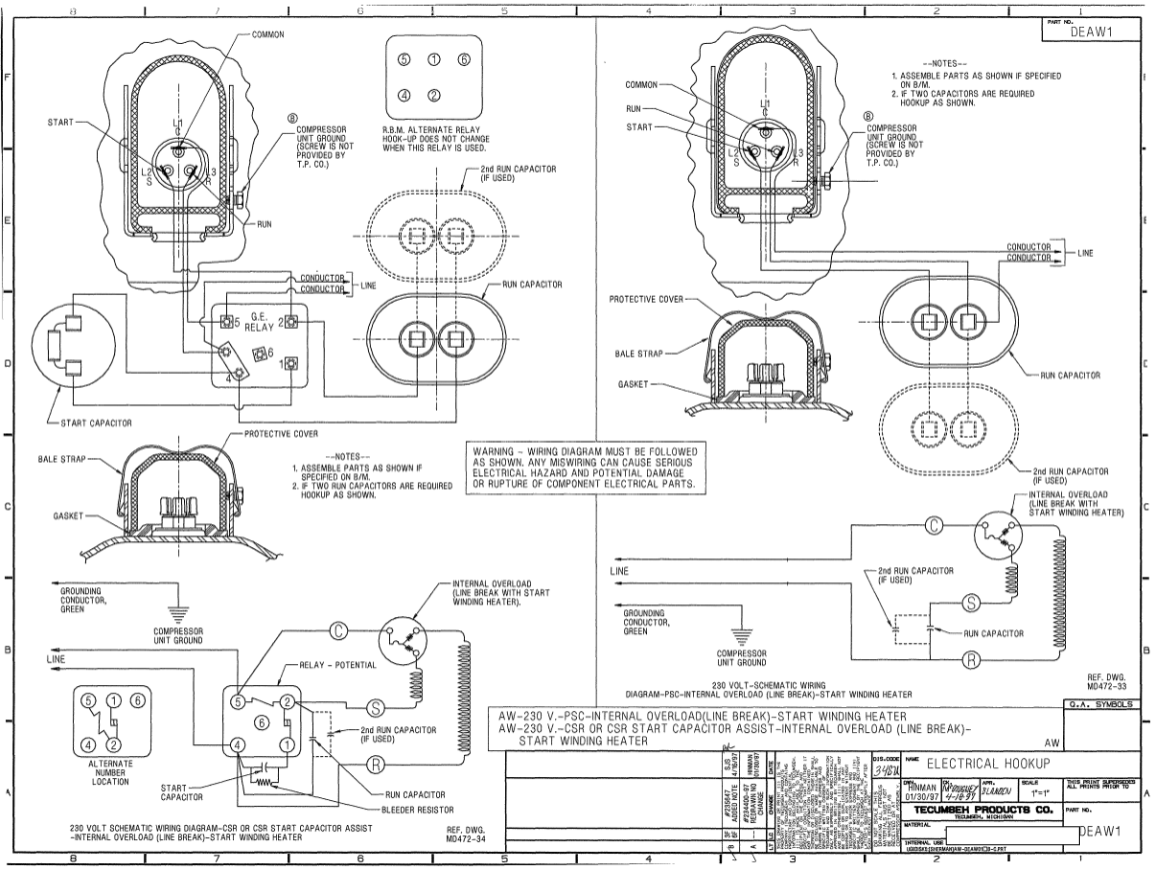

• Relay Type: Potential Relay

• Certifications: CE, CURUS

• Packaging: Single

• Line Current (RLA 60 Hz): 8.2 A

• Locked Rotor Amps (LRA): 86 A

• Voltage Range 50 Hz: 180–220 V

• Voltage Range 60 Hz: 187–254 V

Special Feature: Dual‑frequency, dual‑voltage operation with high start‑torque capability

This compressor’s flexible voltage and frequency compatibility, combined with its compact size and robust start‑torque performance, make it well‑suited for low‑temperature refrigeration systems.
