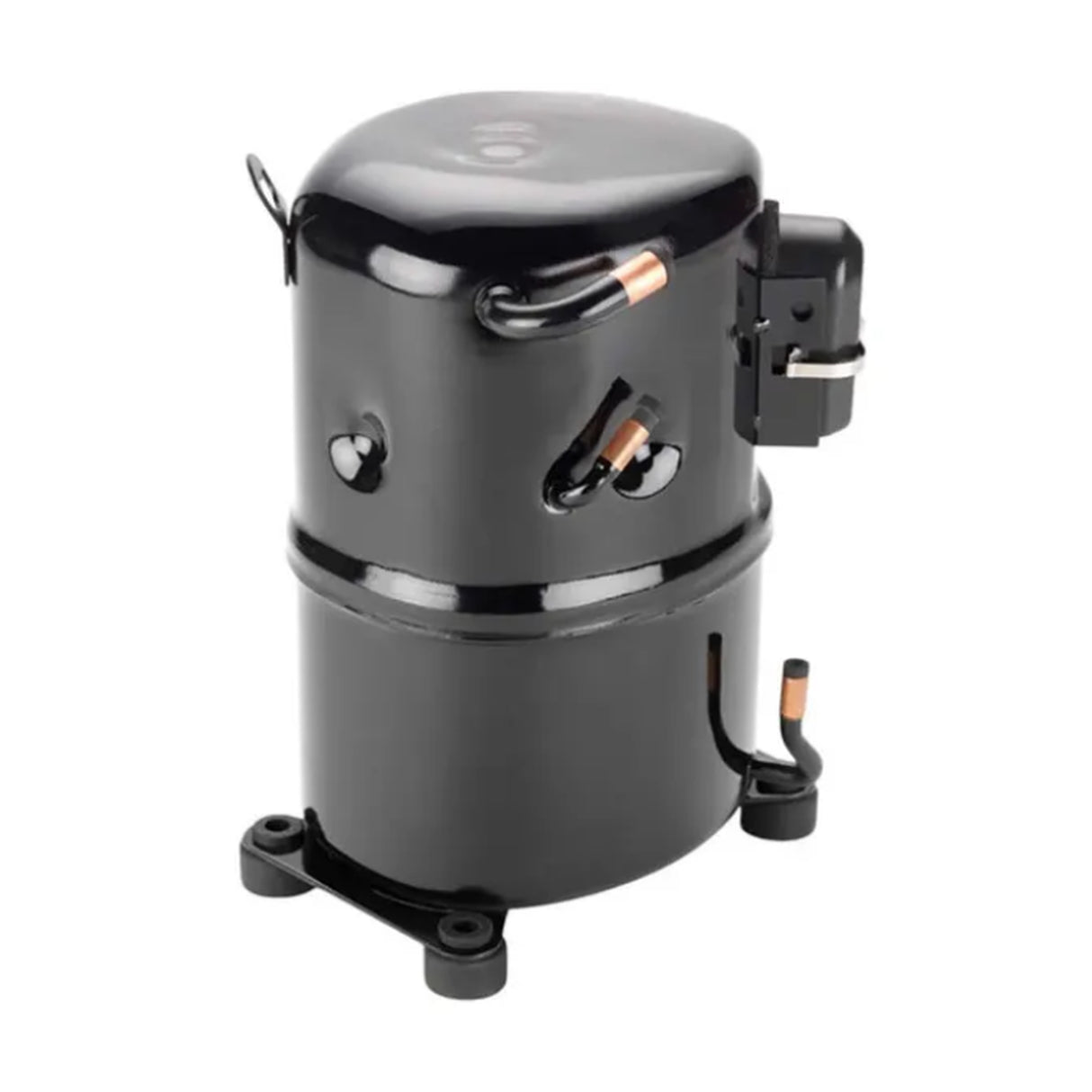

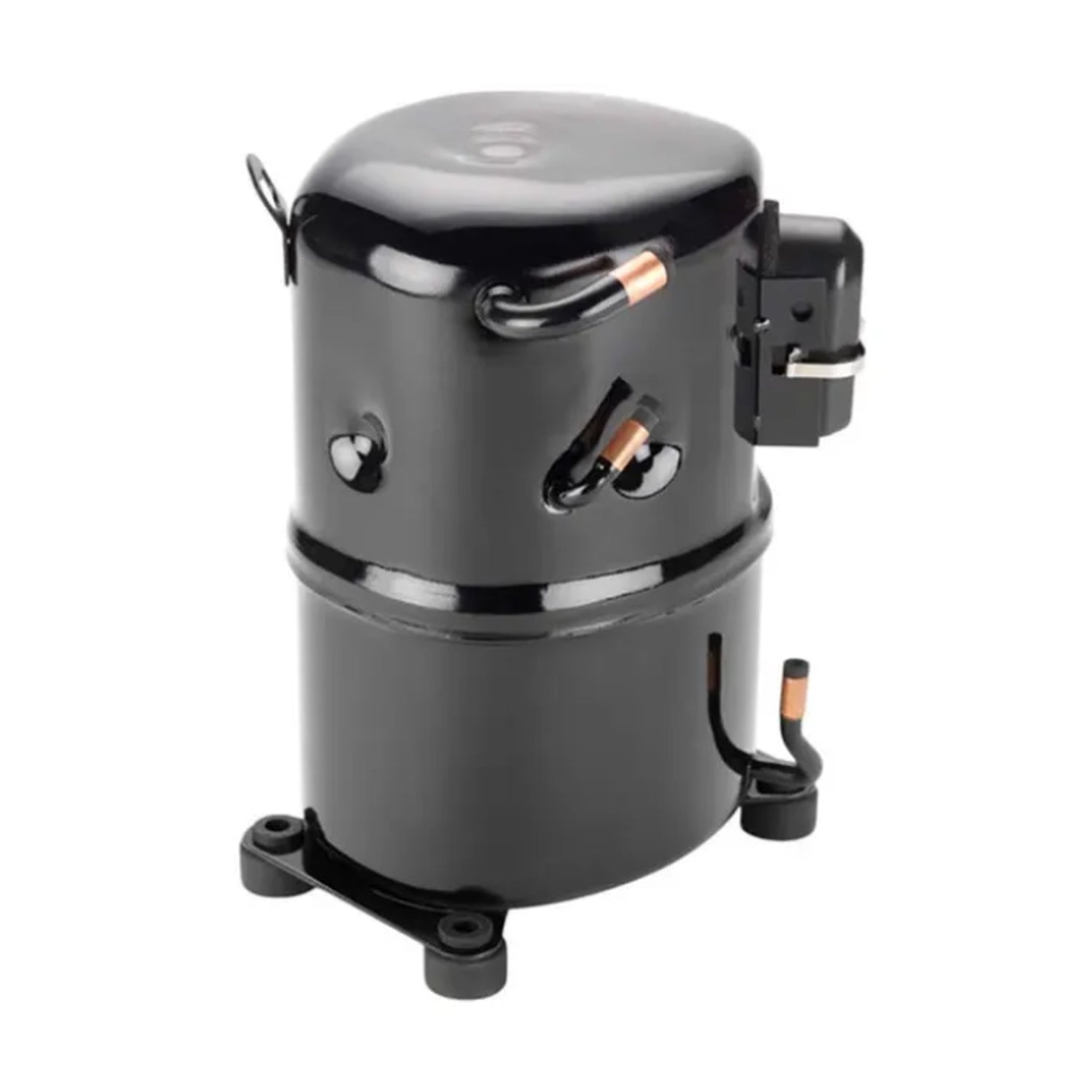

AW459SH‑419‑J7, Reciprocating Compressor, 3 HP, 220 V 3‑Phase @ 50/60 Hz, R‑404A, AW Series, AWS2512ZKZ

This hermetic reciprocating compressor is engineered for low back pressure refrigeration applications, offering high start torque and fan cooling in a compact design. It supports both 50 Hz and 60 Hz operation with R‑404A refrigerant.

KEY FEATURES

• Model: AW459SH‑419‑J7

• Product Type: Reciprocating Compressor

• Application: LBP (Low Back Pressure)

• Refrigerant: R‑404A

• Voltage/Frequency: 220 V 3‑Phase @ 50 Hz / 220 V 3‑Phase @ 60 Hz

• Horsepower: 3 HP

• Evaporating Temperature Range: –40 °C to –12.2 °C (–40 °F to 10 °F)

• Motor Torque: High Start Torque (HST)

• Compressor Cooling: Fan

• Displacement: 68 cc

• Oil Type: Polyolester

• Oil Charge: 1140 cc

• Oil Viscosity: 32 cSt

• Weight: 29 kg (64 lb)

• Suction Line Size: 5/8 in (15.9 mm)

• Discharge Line Size: 3/8 in (9.52 mm)

• LRA (Locked Rotor Amps): 70 A

• RLA (Rated Load Amps): 7.6 A @ 50 Hz / 8 A @ 60 Hz

• MCC (Max Continuous Current): 16 A

• Motor Resistance – Main: 1.31 Ω

• Voltage Range: 180–253 V @ 50 Hz / 187–264 V @ 60 Hz
