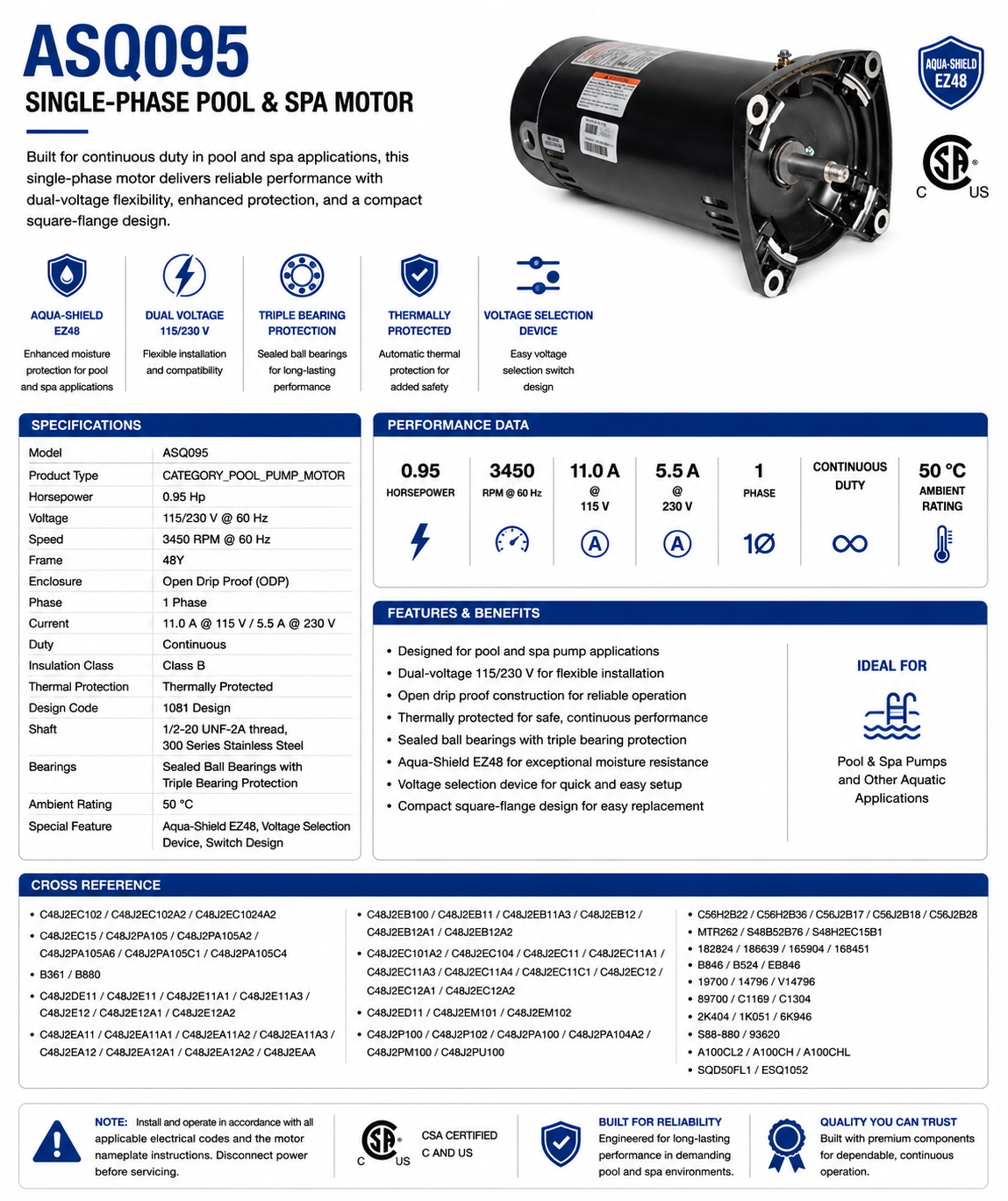

ASQ095, 0.95 Hp, 3450 RPM, 115/230 V, 1 Ph, 60 Hz, Open Drip‑Proof, Frame 48Y

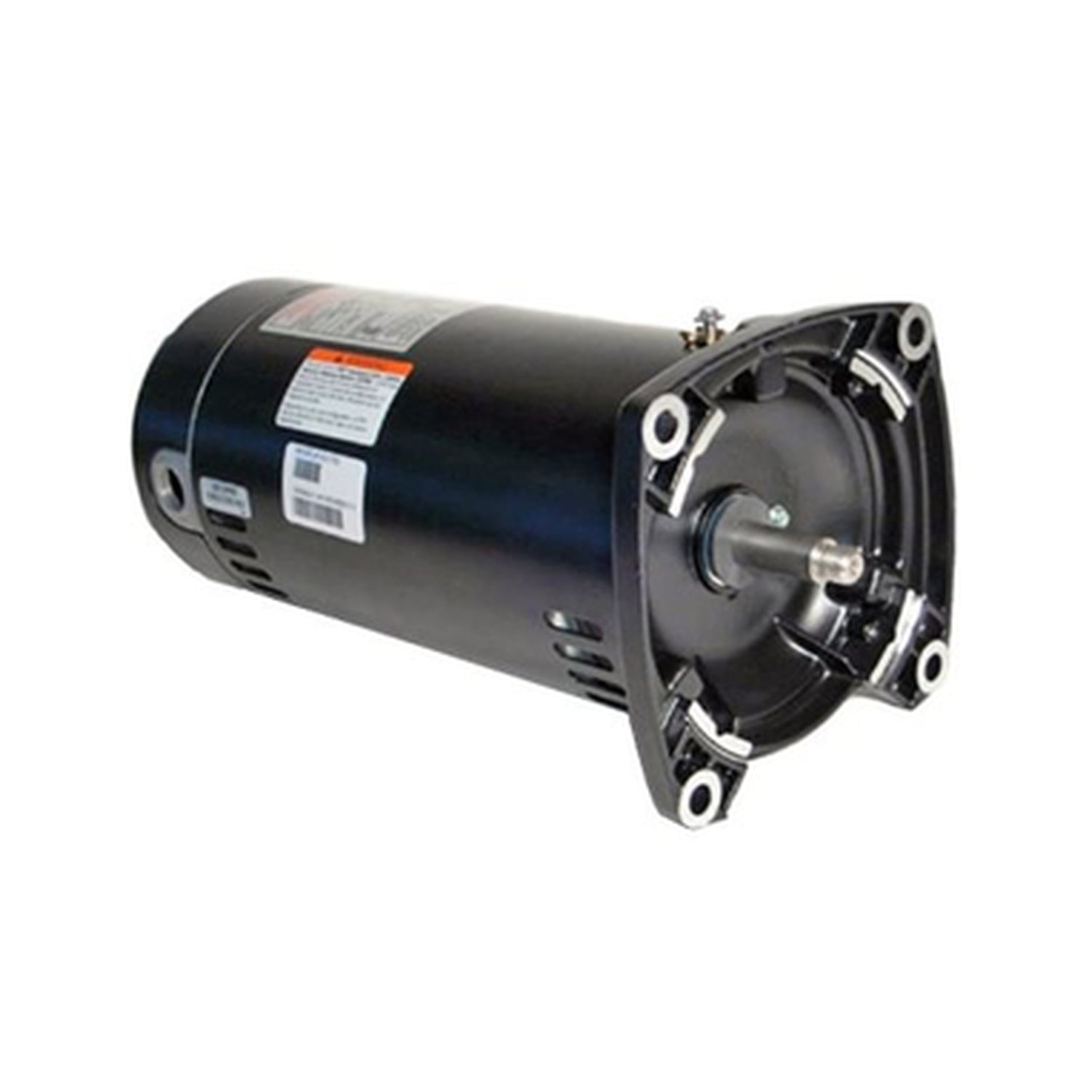

This single‑phase pool and spa motor is built for continuous duty in aquatic environments, offering dual‑voltage flexibility and robust protection features in a compact square‑flange design.

KEY FEATURES

• Model: ASQ095

• Product Type: CATEGORY_POOL_PUMP_MOTOR

• Horsepower: 0.95 Hp

• Voltage: 115/230 V @ 60 Hz

• Speed: 3450 RPM @ 60 Hz

• Frame: 48Y

• Enclosure: Open Drip Proof (ODP)

• Phase: 1 Phase

• Current: 11.0 A @ 115 V / 5.5 A @ 230 V

• Duty: Continuous

• Insulation Class: Class B

• Thermal Protection: Thermally Protected

• Design Code: 1081 Design

• Shaft: 1/2‑20 UNF‑2A thread, 300 Series Stainless Steel

• Bearings: Sealed Ball Bearings with Triple Bearing Protection

• Ambient Rating: 50 °C

• Special Feature: Aqua‑Shield EZ48, Voltage Selection Device, Switch Design

This motor’s dual‑voltage capability and enhanced bearing protection make it ideal for reliable, long‑lasting performance in pool and spa pump applications.

CROSS REFERENCE

• C48J2EC102 / C48J2EC102A2 / C48J2EC1024A2

• C48J2EC15 / C48J2PA105 / C48J2PA105A2 / C48J2PA105A6 / C48J2PA105C1 / C48J2PA105C4

• B361 / B880

• C48J2DE11 / C48J2E11 / C48J2E11A1 / C48J2E11A3 / C48J2E12 / C48J2E12A1 / C48J2E12A2

• C48J2EA11 / C48J2EA11A1 / C48J2EA11A2 / C48J2EA11A3 / C48J2EA12 / C48J2EA12A1 / C48J2EA12A2 / C48J2EAA

• C48J2EB100 / C48J2EB11 / C48J2EB11A3 / C48J2EB12 / C48J2EB12A1 / C48J2EB12A2

• C48J2EC101A2 / C48J2EC104 / C48J2EC11 / C48J2EC11A1 / C48J2EC11A3 / C48J2EC11A4 / C48J2EC11C1 / C48J2EC12 / C48J2EC12A1 / C48J2EC12A2

• C48J2ED11 / C48J2EM101 / C48J2EM102

• C48J2P100 / C48J2P102 / C48J2PA100 / C48J2PA104A2 / C48J2PM100 / C48J2PU100

• C56H2B22 / C56H2B36 / C56J2B17 / C56J2B18 / C56J2B28

• MTR262 / S48B52B76 / S48H2EC15B1

• 182824 / 186639 / 165904 / 168451

• B846 / B524 / EB846

• 19700 / 14796 / V14796

• 89700 / C1169 / C1304

• 2K404 / 1K051 / 6K946

• S88-880 / 93620

• A100CL2 / A100CH / A100CHL

• SQD50FL1 / ESQ1052
