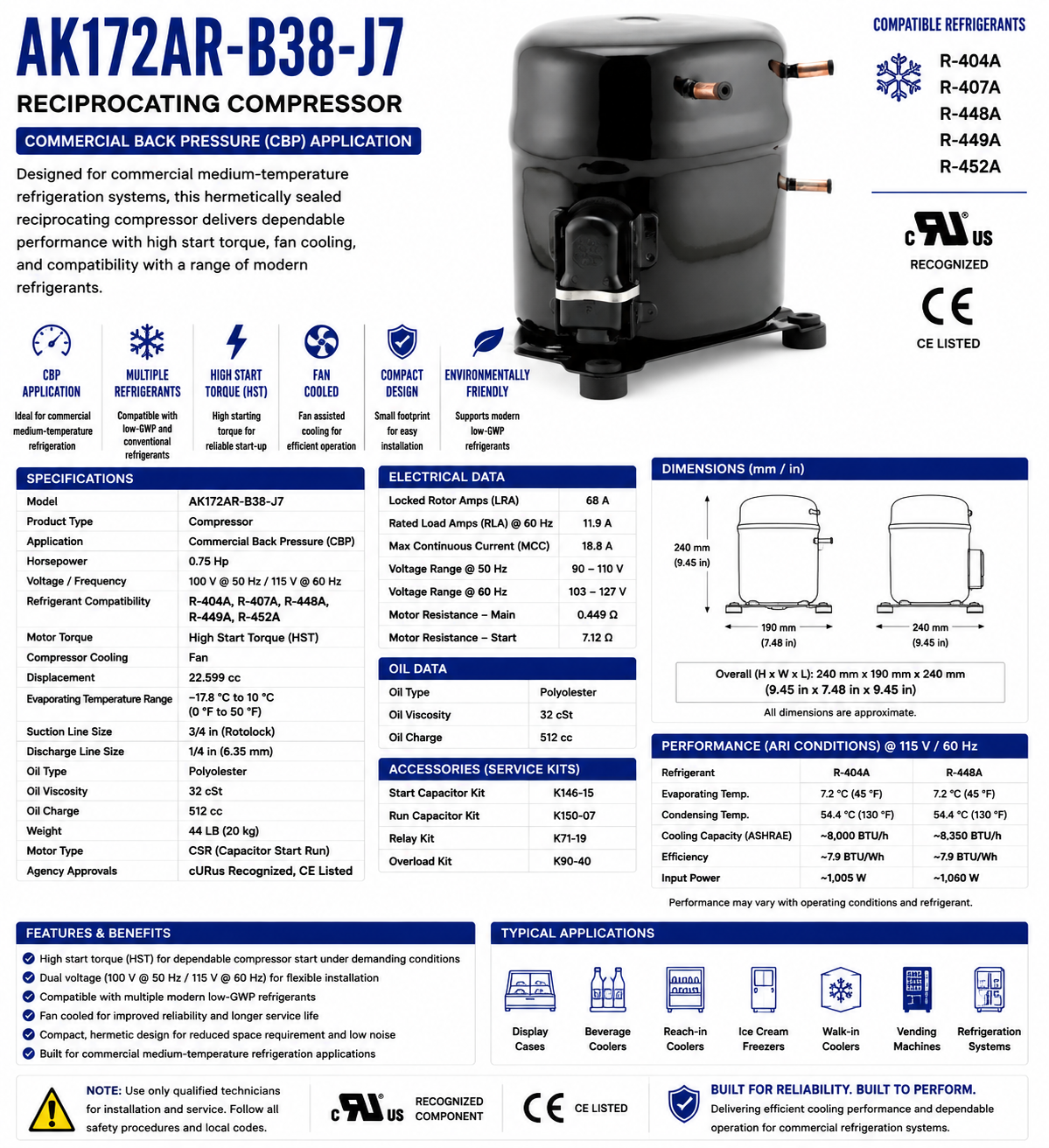

AK172AR‑B38‑J7, Reciprocating Compressor, 0.75 Hp, 100 V @ 50 Hz / 115 V @ 60 Hz, AKA9462ZXA

This hermetically sealed reciprocating refrigeration compressor is engineered for commercial medium-temperature applications, offering high starting torque and compatibility with a range of modern refrigerants. It operates at dual voltage and frequency settings and includes fan cooling for reliable performance.

KEY FEATURES

• Model: AK172AR‑B38‑J7

• Product Type: Compressor

• Horsepower: 0.75 Hp

• Voltage: 100 V @ 50 Hz / 115 V @ 60 Hz

• Application: Commercial Back Pressure (CBP)

• Refrigerant Compatibility: R‑404A, R‑407A, R‑448A, R‑449A, R‑452A

• Discharge Line Size: 1/4 in (6.35 mm)

• Suction Line Size: 3/4 in (Rotolock)

• Motor Torque: High Start Torque (HST)

• Compressor Cooling: Fan

• Weight: 44 LB

• Displacement: 22.599 cc

• Oil Type: Polyolester

• Oil Viscosity: 32 cSt

• Oil Charge: 512 cc

• Locked Rotor Amps (LRA): 68 A

• Rated Load Amps (RLA) @ 60 Hz: 11.9 A

• Voltage Range @ 50 Hz: 90–110 V

• Voltage Range @ 60 Hz: 103–127 V

• Max Continuous Current (MCC): 18.8 A

• Motor Resistance – Main: 0.449 Ω

• Motor Resistance – Start: 7.12 Ω

• Motor Type: CSR (Capacitor Start Run)

• Evaporating Temperature Range: –17.8 °C to 10 °C (0 °F to 50 °F)

• Start Capacitor Kit: K146‑15

• Run Capacitor Kit: K150‑07

• Relay Kit: K71‑19

• Overload Kit: K90‑40
