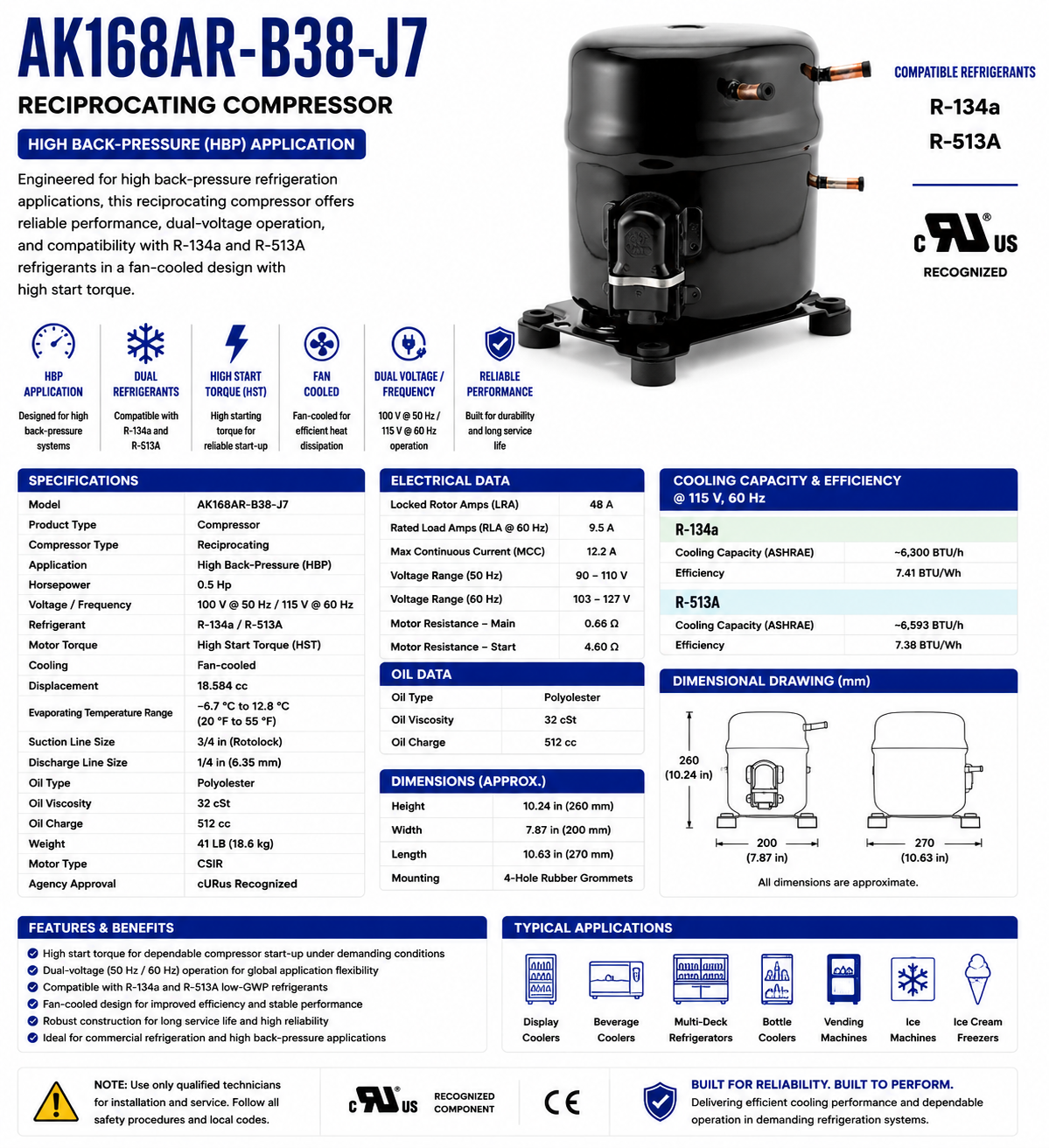

AK168AR‑B38‑J7, Reciprocating Compressor, 0.5 Hp, 100 V @ 50 Hz / 115 V @ 60 Hz, R‑134a/R‑513A , AKA4460YXA

This reciprocating compressor is engineered for high back‑pressure refrigeration applications, supporting dual‑voltage operation and compatible with R‑134a and R‑513A refrigerants. It delivers approximately 6,300 BTU/h of cooling capacity and features a fan‑cooled design with high start torque.

KEY FEATURES

• Model: AK168AR‑B38‑J7

• Product Type: Compressor

• Horsepower: 0.5 Hp

• Voltage: 100 V @ 50 Hz / 115 V @ 60 Hz

• Refrigerant: R‑134a / R‑513A

• Application: High Back‑Pressure (HBP)

• Compressor Type: Reciprocating

• Motor Torque: High Start Torque (HST)

• Cooling: Fan‑cooled

• Displacement: 18.584 cc

• Oil Type: Polyolester

• Oil Charge: 512 cc

• Viscosity: 32 cSt

• Weight: 41 LB

• Locked Rotor Amps (LRA): 48 A

• Rated Load Amps (RLA 60 Hz): 9.5 A

• Max Continuous Current (MCC): 12.2 A

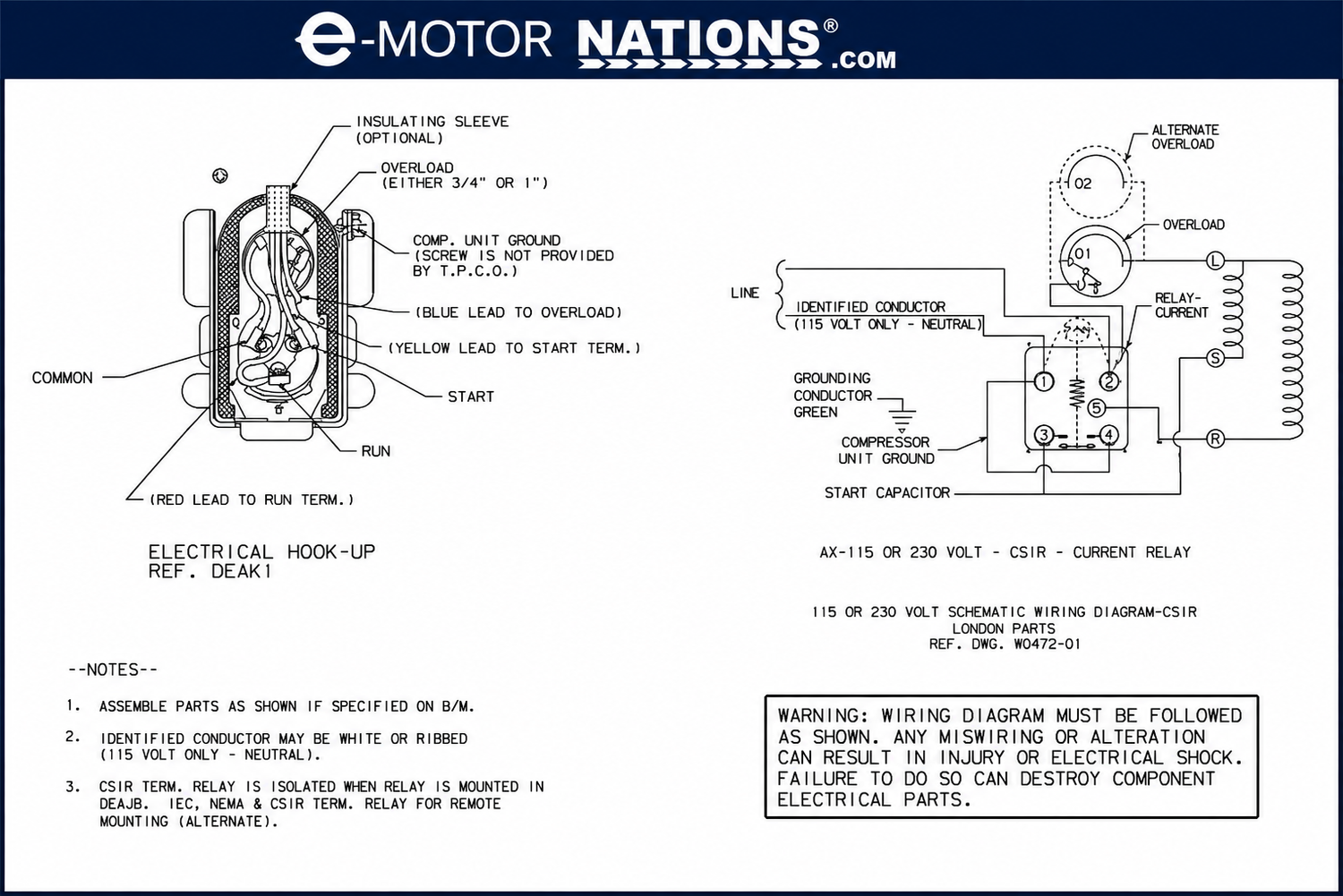

• Motor Type: CSIR

• Voltage Range (50 Hz): 90–110 V

• Voltage Range (60 Hz): 103–127 V

• Agency Approval: cURus Recognized

• Discharge Line Size: 1/4 in (6.35 mm)

• Suction Line Size: 3/4 in (Rotolock)

• Evaporating Temperature Range: –6.7 °C to 12.8 °C (20 °F to 55 °F)

• Cooling Capacity (R‑134a, 115 V @ 60 Hz): ~6,300 BTU/h

• Efficiency (R‑134a, 115 V @ 60 Hz): 7.41 BTU/Wh

• Cooling Capacity (R‑513A, 115 V @ 60 Hz): ~6,593 BTU/h

• Efficiency (R‑513A, 115 V @ 60 Hz): 7.38 BTU/Wh
