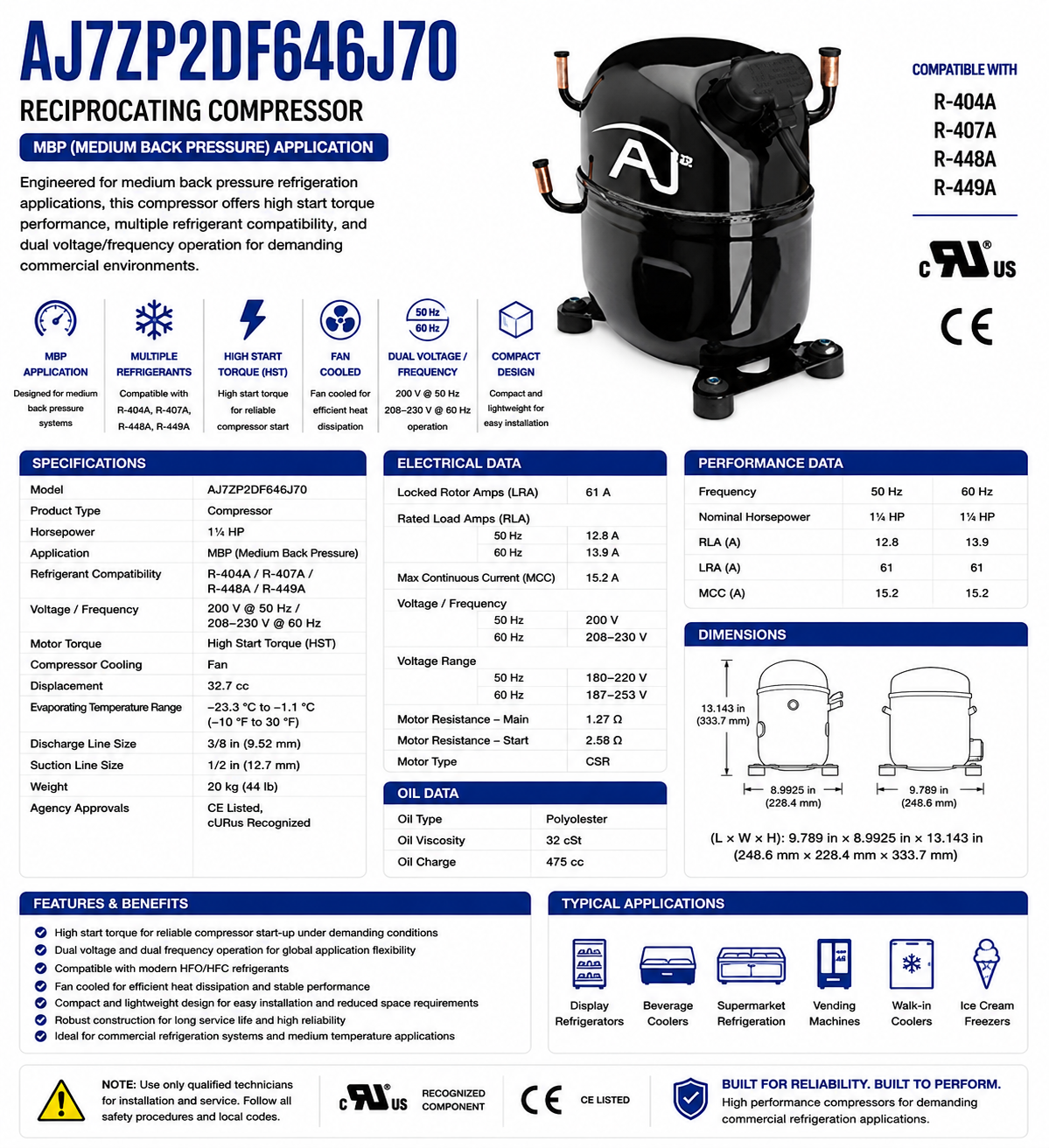

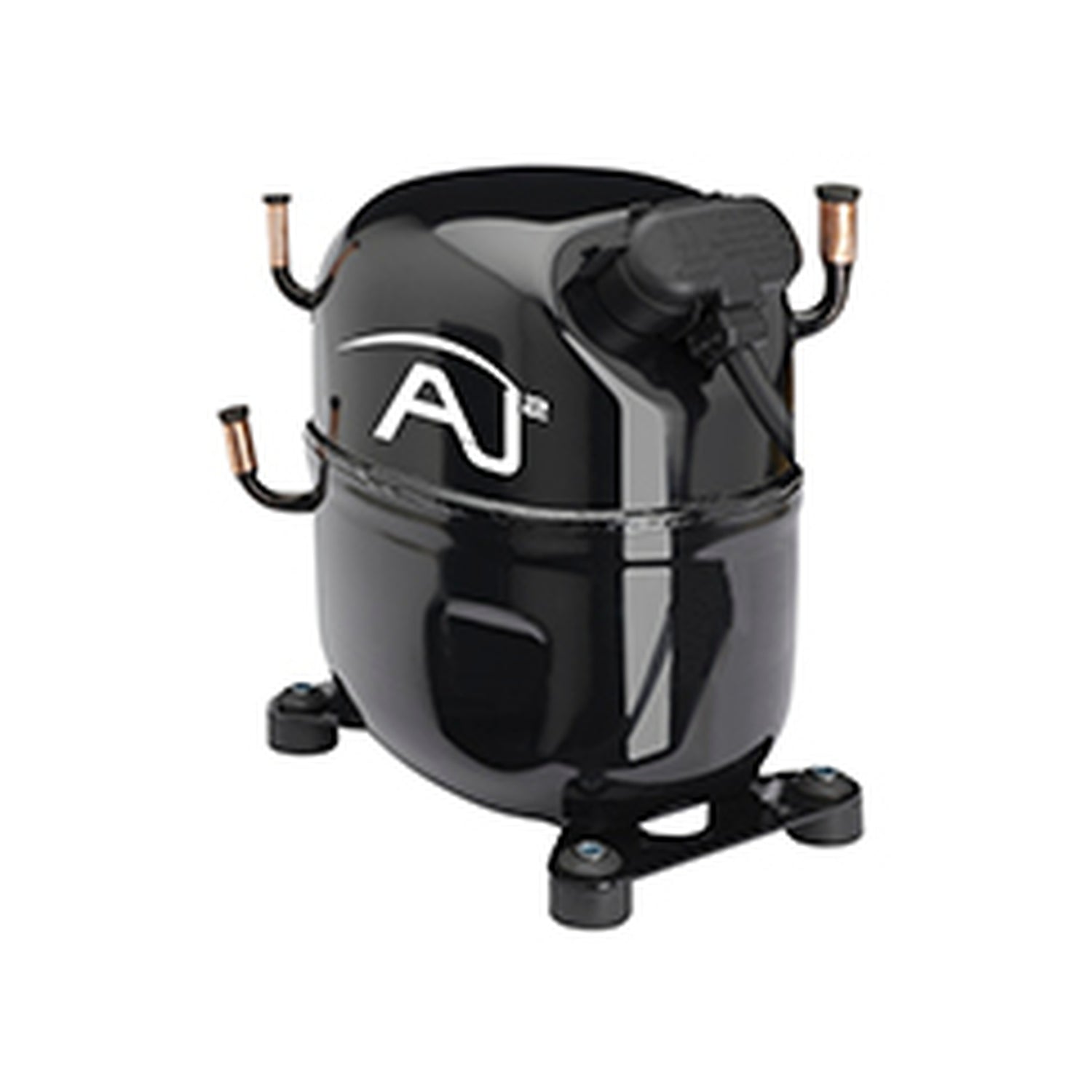

AJ7ZP2DF646J70, Reciprocating Compressor, 1¼ HP, 200 V @ 50 Hz / 208‑230 V @ 60 Hz, MBP, R‑404A/R‑407A/R‑448A/R‑449A, AJ7494Z‑XD3A

This reciprocating refrigeration compressor is engineered for medium back pressure (MBP) applications, compatible with multiple HFO/HFC refrigerants, and operates across dual voltage and frequency ranges. It features high start torque and fan cooling, making it suitable for demanding commercial refrigeration environments.

KEY FEATURES

• Model: AJ7ZP2DF646J70

• Product Type: Compressor

• Horsepower: 1¼ HP

• Voltage/Frequency: 200 V @ 50 Hz / 208‑230 V @ 60 Hz

• Application: MBP (Medium Back Pressure)

• Refrigerant Compatibility: R‑404A / R‑407A / R‑448A / R‑449A

• Motor Torque: High Start Torque (HST)

• Compressor Cooling: Fan

• Weight: 20 kg (44 lb)

• Displacement: 32.7 cc

• Oil Type: Polyolester

• Oil Viscosity: 32 cSt

• Oil Charge: 475 cc

• Electrical – Locked Rotor Amps (LRA): 61 A

• Electrical – Rated Load Amps (RLA): 12.8 A @ 50 Hz / 13.9 A @ 60 Hz

• Electrical – Max Continuous Current (MCC): 15.2 A

• Motor Resistance – Main: 1.27 Ω

• Motor Resistance – Start: 2.58 Ω

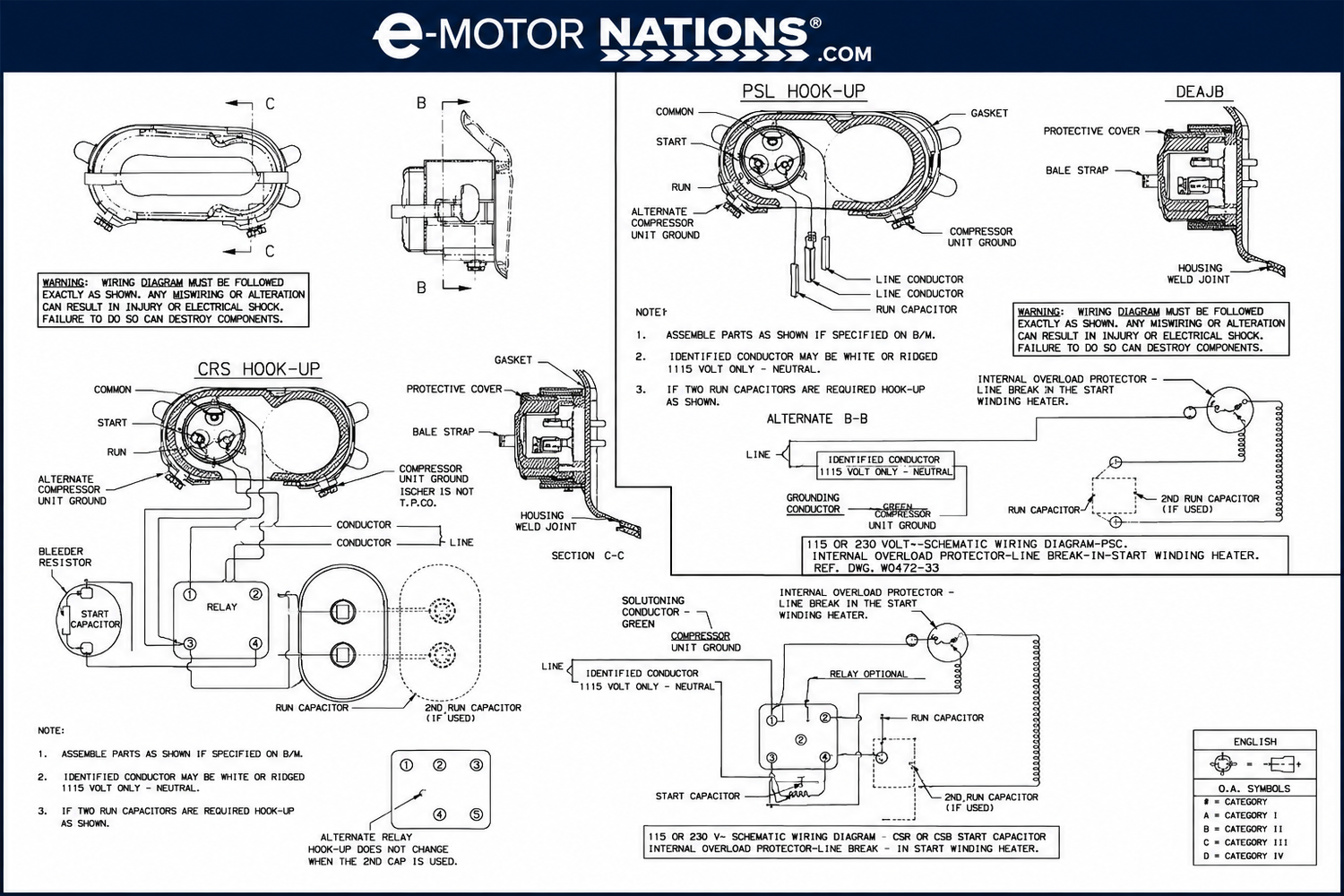

• Motor Type: CSR

• Agency Approvals: CE Listed, cURus Recognized

• Evaporating Temperature Range: –23.3 °C to –1.1 °C (–10 °F to 30 °F)

• Discharge Line Size: 3/8 in (9.52 mm)

• Suction Line Size: 1/2 in (12.7 mm)
