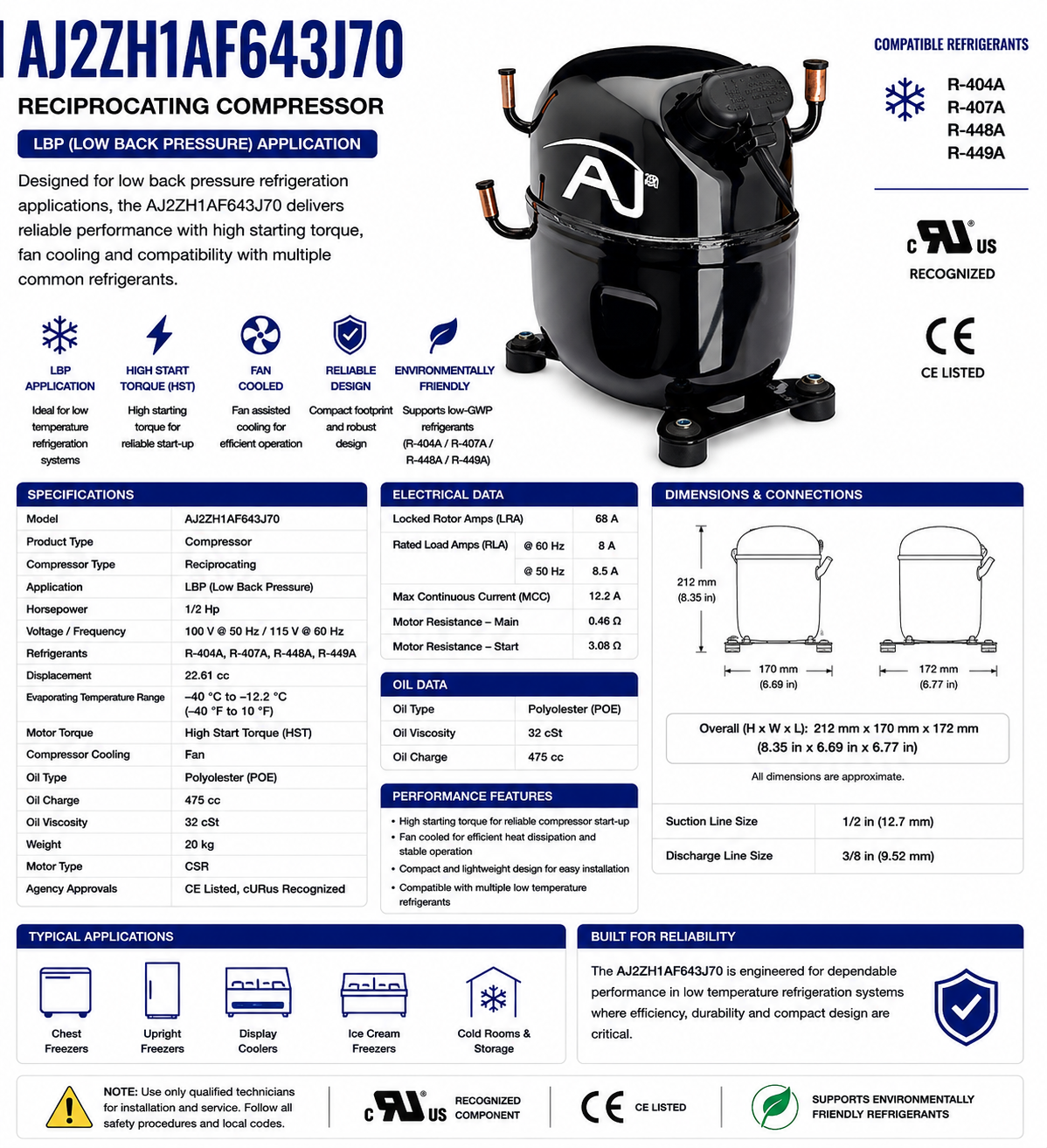

AJ2ZH1AF643J70, Reciprocating Compressor, 1/2 Hp, 100 V @ 50 Hz / 115 V @ 60 Hz, AJ2 Series, AJ2425Z‑XA3A

This reciprocating compressor is designed for low‑back‑pressure refrigeration applications, operating on multiple common refrigerants and offering high starting torque with compact displacement.

KEY FEATURES

• Model: AJ2ZH1AF643J70

• Product Type: Compressor

• Horsepower: 1/2 Hp

• Voltage: 100 V @ 50 Hz / 115 V @ 60 Hz

• Compressor Type: Reciprocating

• Application: LBP (Low Back Pressure)

• Refrigerants: R‑404A, R‑407A, R‑448A, R‑449A

• Displacement: 22.61 cc

• Evaporating Temperature Range: –40 °C to –12.2 °C (–40 °F to 10 °F)

• Motor Torque: High Start Torque (HST)

• Compressor Cooling: Fan

• Weight: 20 kg

• Oil Type: Polyolester

• Oil Charge: 475 cc

• Viscosity: 32 cSt

• Locked Rotor Amps (LRA): 68 A

• Rated Load Amps (RLA): 8 A @ 60 Hz; 8.5 A @ 50 Hz

• Max Continuous Current (MCC): 12.2 A

• Motor Resistance – Main: 0.46 Ω

• Motor Resistance – Start: 3.08 Ω

• Motor Type: CSR

• Agency Approvals: CE Listed, cURus Recognized
