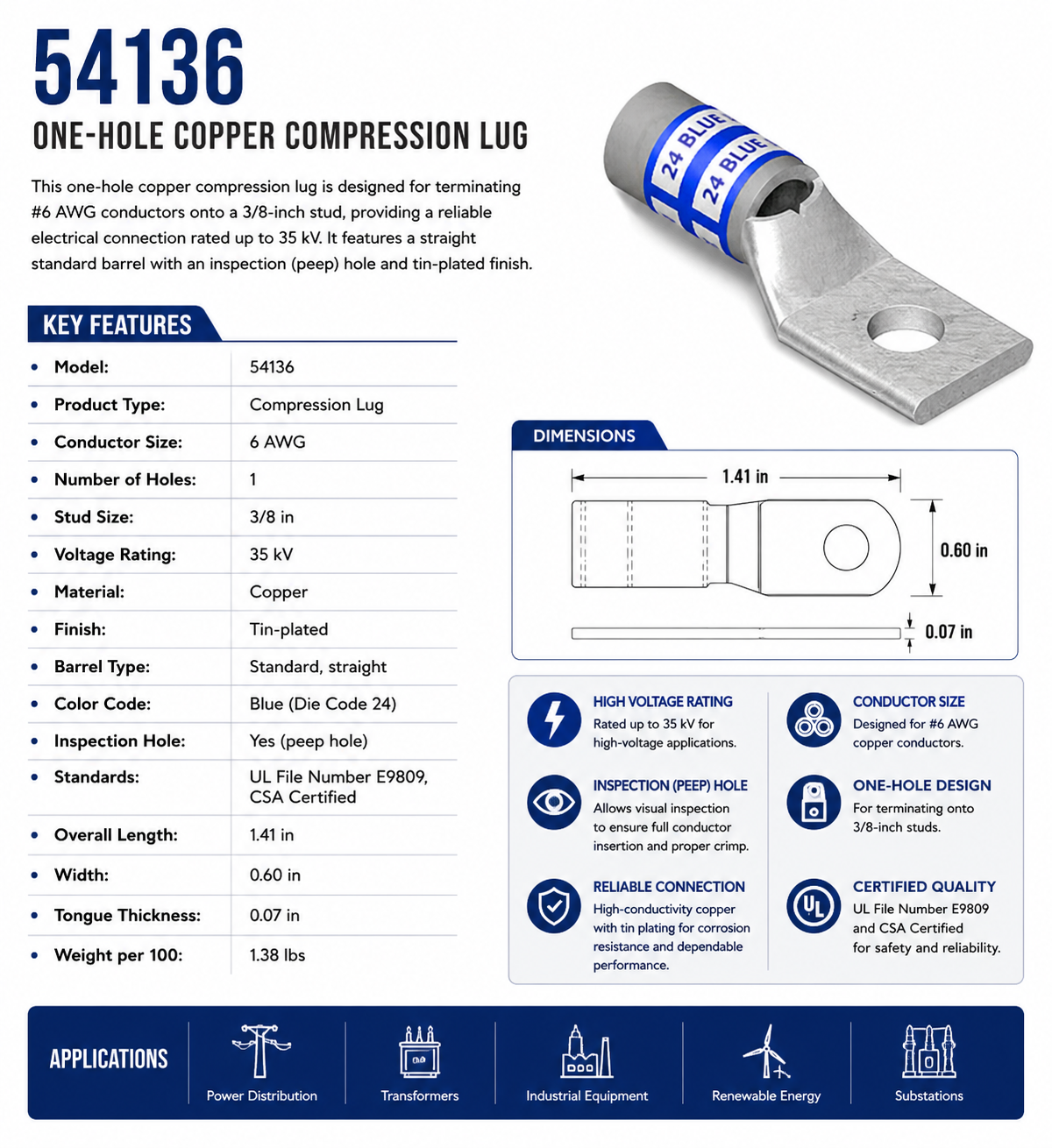

54136, Compression Lug, 6 AWG, 3/8‑in Stud, Straight Standard Barrel

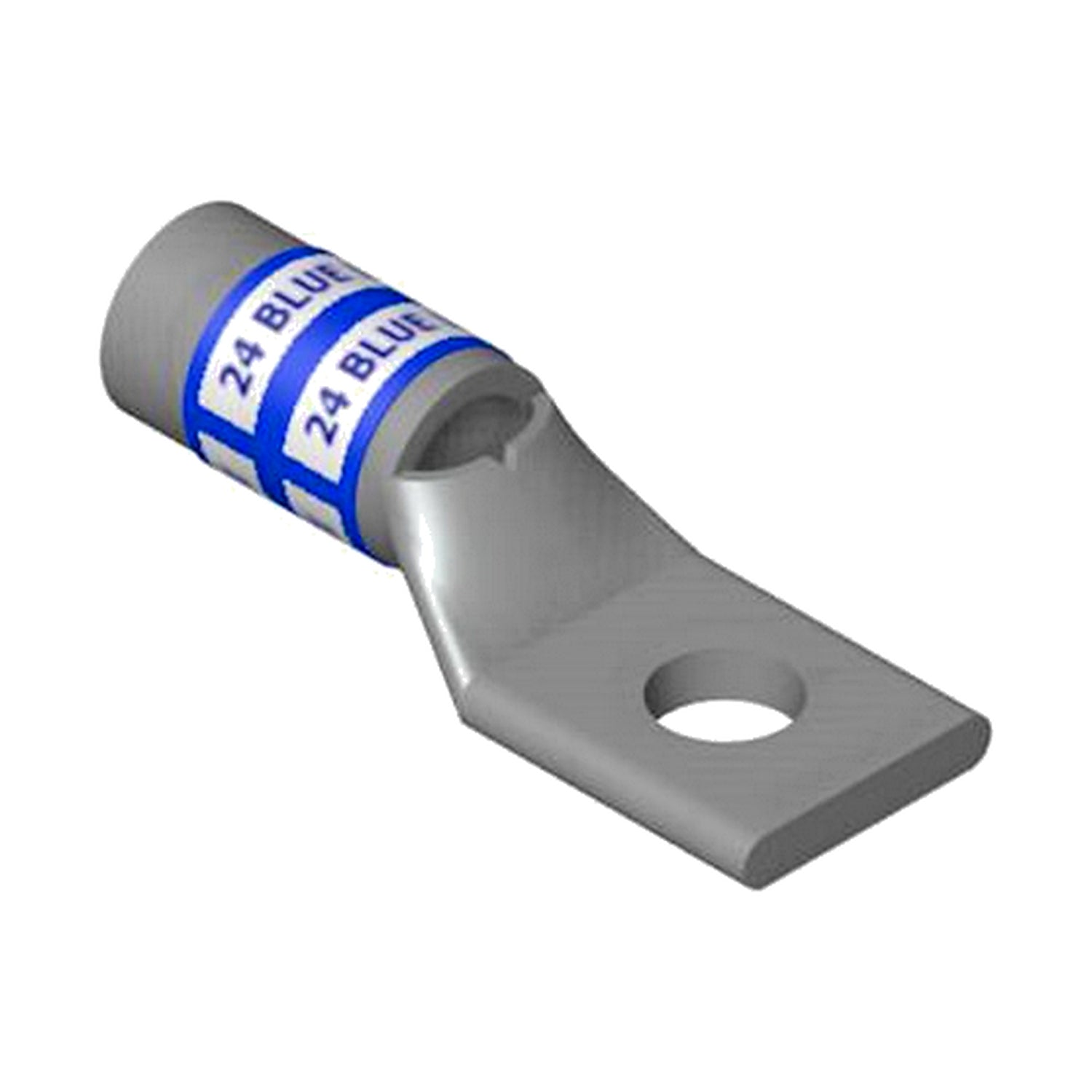

This one‑hole copper compression lug is designed for terminating #6 AWG conductors onto a 3/8‑inch stud, providing a reliable electrical connection rated up to 35 kV. It features a straight standard barrel with an inspection (peep) hole and tin‑plated finish.

KEY FEATURES

• Model: 54136

• Product Type: Compression Lug

• Conductor Size: 6 AWG

• Number of Holes: 1

• Stud Size: 3/8 in

• Voltage Rating: 35 kV

• Material: Copper

• Finish: Tin‑plated

• Barrel Type: Standard, straight

• Color Code: Blue (Die Code 24)

• Inspection Hole: Yes (peep hole)

• Standards: UL File Number E9809, CSA Certified

• Overall Length: 1.41 in

• Width: 0.60 in

• Tongue Thickness: 0.07 in

• Weight per 100: 1.38 lbs

The lug’s high‑conductivity copper construction with tin plating and inspection hole ensures proper crimping and reliable connection in high‑voltage applications.
