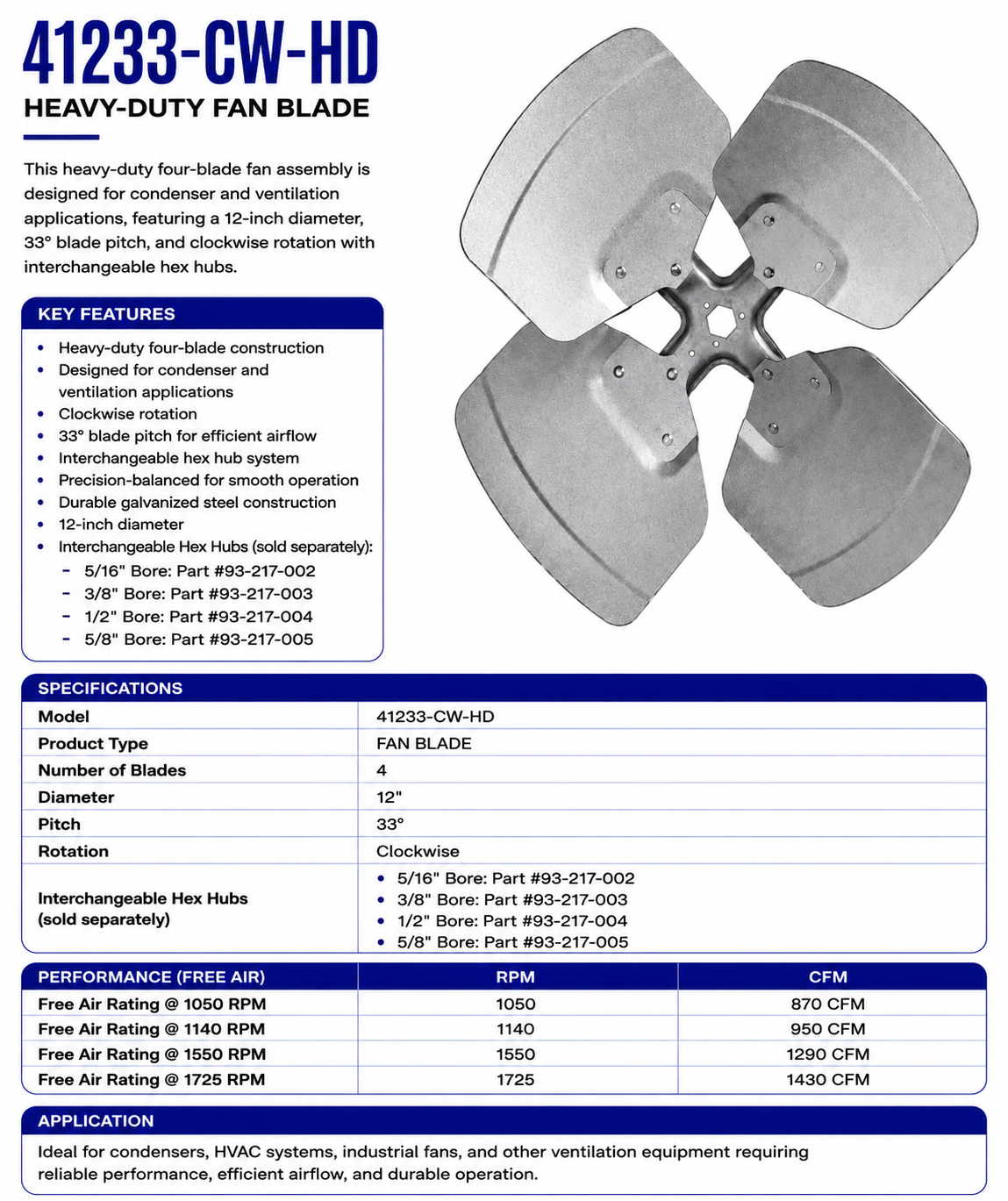

41233‑CW‑HD, Fan Blades, 12" Diameter, 33° Pitch, CW Rotation, Heavy Duty

This heavy‑duty four‑blade fan assembly is designed for condenser and ventilation applications, featuring a 12‑inch diameter, 33° blade pitch, and clockwise rotation with interchangeable hex hubs.

KEY FEATURES

• Model: 41233‑CW‑HD

• Product Type: FAN BLADE

• Number of Blades: 4

• Diameter: 12"

• Pitch: 33°

• Rotation: Clockwise

• Interchangeable Hex Hubs (sold separately):

– 5/16" Bore: Part #93-217-002

– 3/8" Bore: Part #93-217-003

– 1/2" Bore: Part #93-217-004

– 5/8" Bore: Part #93-217-005

• Free Air Rating @ 1050 RPM: 870 CFM

• Free Air Rating @ 1140 RPM: 950 CFM

• Free Air Rating @ 1550 RPM: 1290 CFM

• Free Air Rating @ 1725 RPM: 1430 CFM
