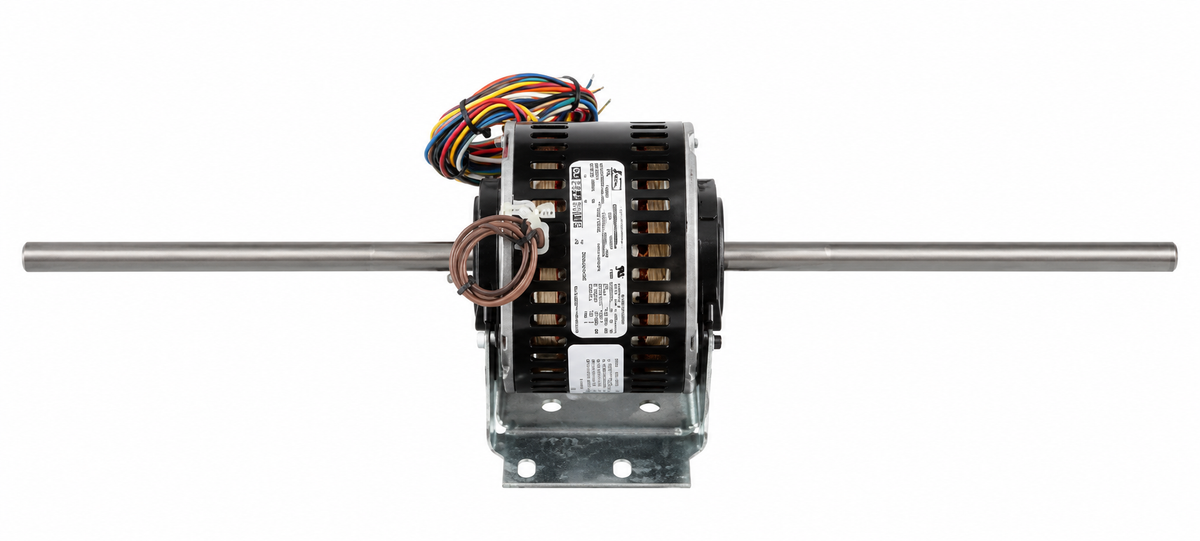

362B, 1/10, 1/15, 1/25, 1/35Hp, 1075 RPM, 115 V, 1 Ph, 60 Hz, OAO, Frame 42

This single-phase fan coil/room air conditioner motor offers four-speed operation with multiple fractional horsepower options, designed for continuous air-over applications in compact 42 frame configurations.

KEY FEATURES

• Model: 362B

• Product Type: Electric Motors

• Horsepower: 1/10, 1/15, 1/25, 1/35 Hp

• Voltage: 115 V @ 60 Hz

• Speed: 1075 RPM @ 60 Hz

• Frame: 42 (42Y)

• Enclosure: Open Air Over (OAO)

• Phase: 1

• Service Factor: 1.0

• Duty: Continuous

• Insulation Class: B

• Thermal Protection: Thermally Protected / Automatic Reset

• Mounting: Resilient Base / Cradle Base

• Bearings: Ball or Sleeve (depending on variant)

• Ambient Rating: 40 °C

• Number of Speeds: 4

• Certifications: UL Recognized, CSA

• Rotation: Double Shaft (CWLE or reversible)
