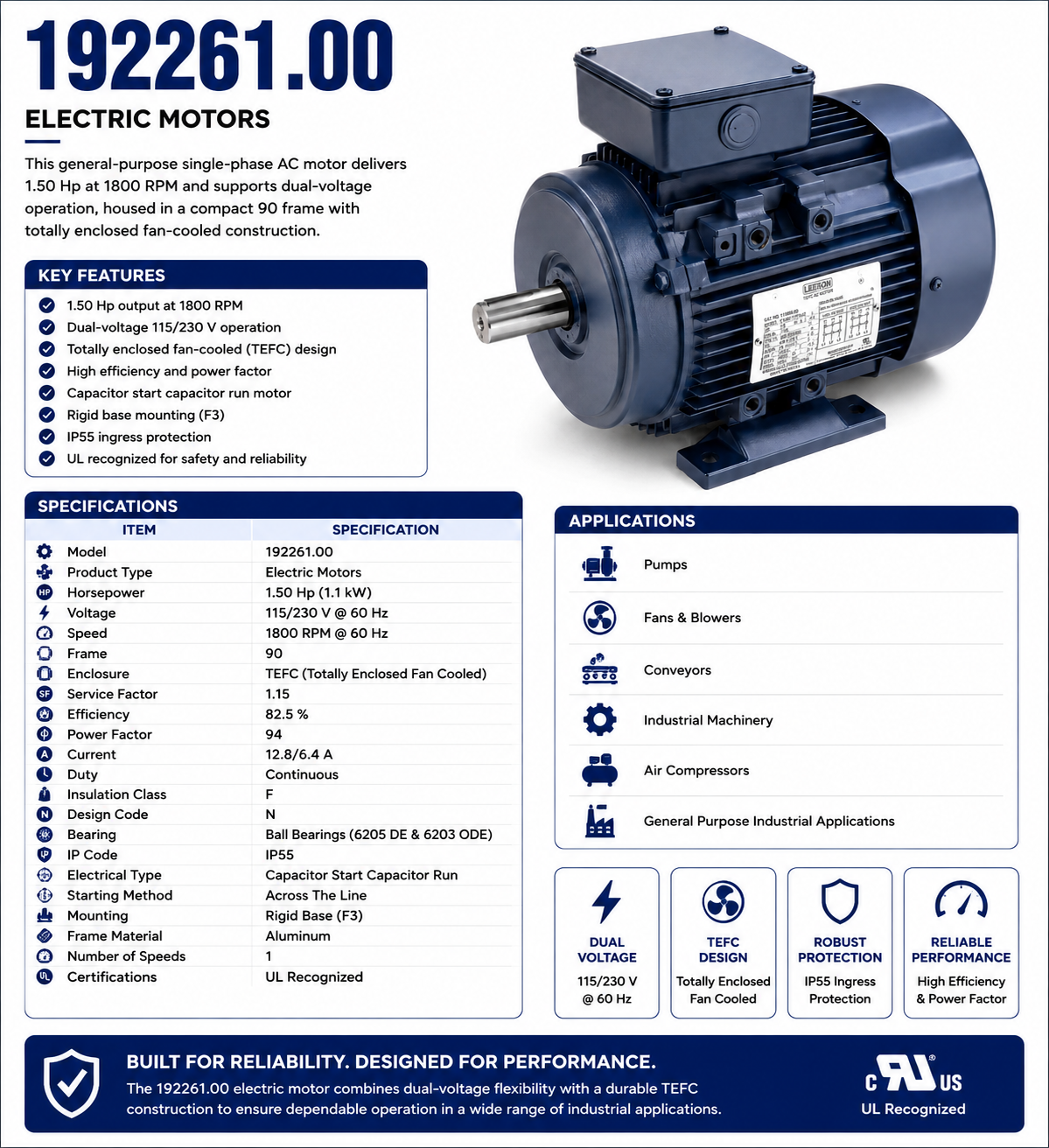

192261.00, 1.50 Hp, 1800 RPM, 115/230 V, 1 Ph, 60 Hz, TEFC, Frame 90

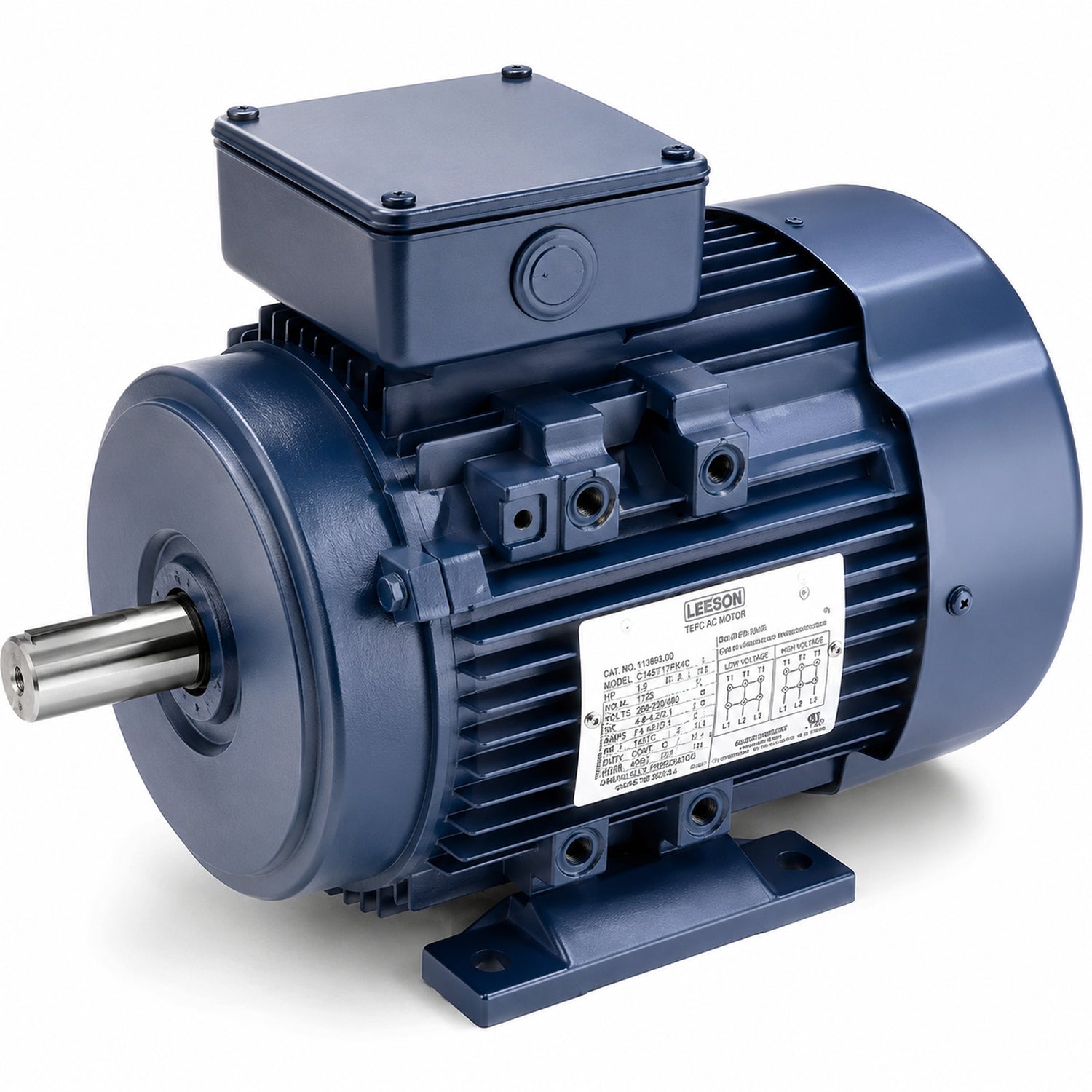

This general-purpose single-phase AC motor delivers 1.50 Hp at 1800 RPM and supports dual-voltage operation, housed in a compact 90 frame with totally enclosed fan-cooled construction.

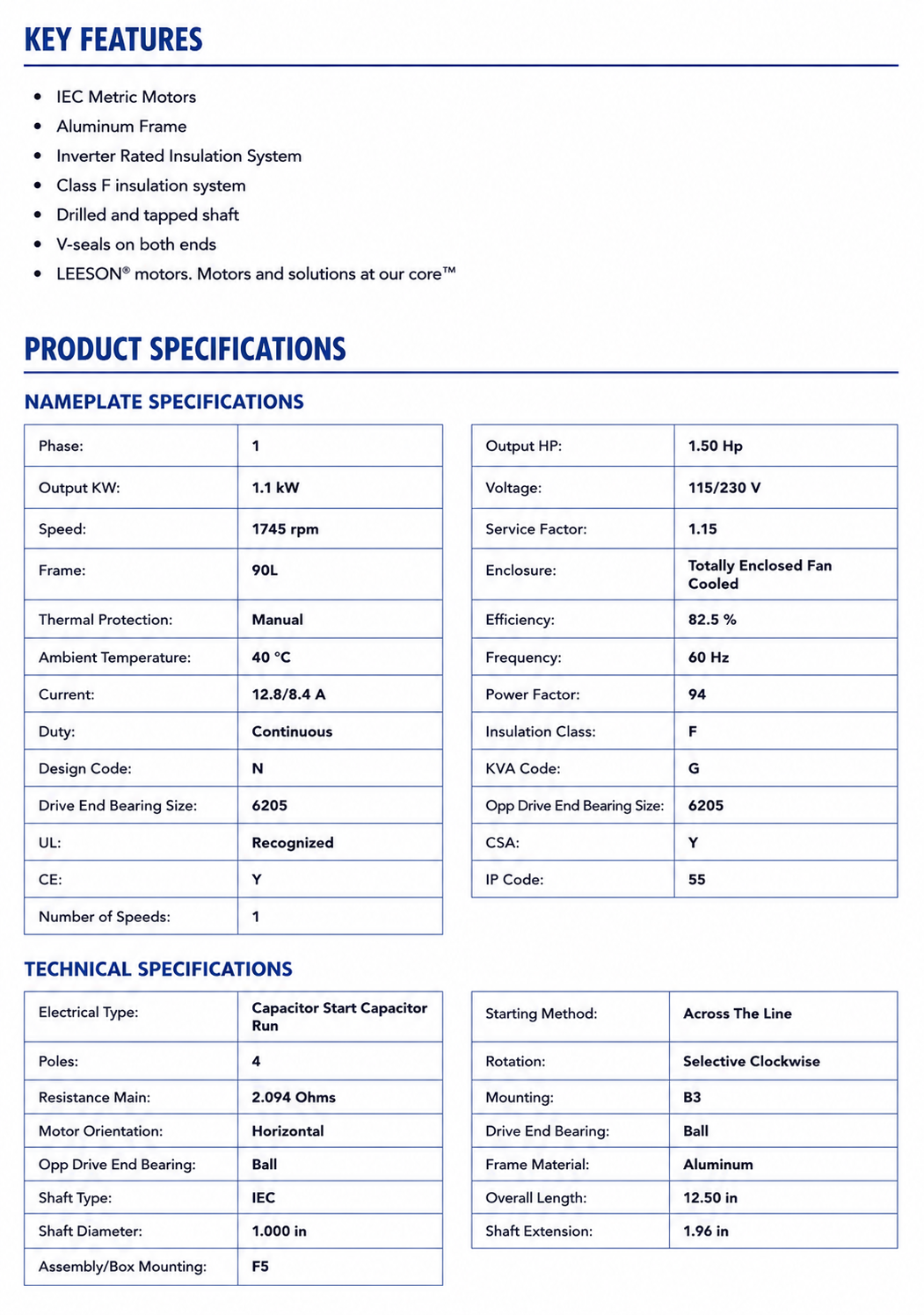

KEY FEATURES

• Model: 192261.00

• Product Type: Electric Motors

• Horsepower: 1.50 Hp (1.1 kW)

• Voltage: 115/230 V @ 60 Hz

• Speed: 1800 RPM @ 60 Hz

• Frame: 90

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Service Factor: 1.15

• Efficiency: 82.5 %

• Power Factor: 94

• Current: 12.8/6.4 A

• Duty: Continuous

• Insulation Class: F

• Design Code: N

• Bearing: Ball Bearings (6205 DE & 6203 ODE)

• IP Code: IP55

• Electrical Type: Capacitor Start Capacitor Run

• Starting Method: Across The Line

• Mounting: Rigid Base (F3)

• Frame Material: Aluminum

• Number of Speeds: 1

• Certifications: UL Recognized

The motor’s dual-voltage capability and robust TEFC design make it adaptable to varied power setups and provide reliable protection in demanding environments.
