1146, Furnace Motor, 1/6Hp, 1100 RPM, 115V, 1Ph, 60Hz, Frame 48YZ, OAO, K55HXEGY-1146

1146, Furnace Motor, 1/6Hp, 1100 RPM, 115V, 1Ph, 60Hz, Frame 48YZ, OAO, K55HXEGY-1146

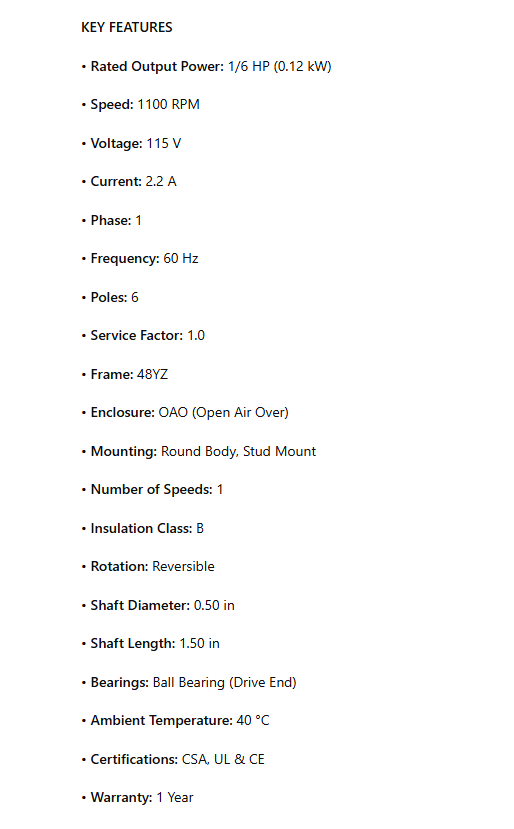

KEY FEATURES

• Rated Output Power: 1/6 HP (0.12 kW)

• Speed: 1100 RPM

• Voltage: 115 V

• Current: 2.2 A

• Phase: 1

• Frequency: 60 Hz

• Poles: 6

• Service Factor: 1.0

• Frame: 48YZ

• Enclosure: OAO (Open Air Over)

• Mounting: Round Body, Stud Mount

• Number of Speeds: 1

• Insulation Class: B

• Rotation: Reversible

• Shaft Diameter: 0.50 in

• Shaft Length: 1.50 in

• Bearings: Ball Bearing (Drive End)

• Ambient Temperature: 40 °C

• Certifications: CSA, UL & CE

• Warranty: 1 Year
