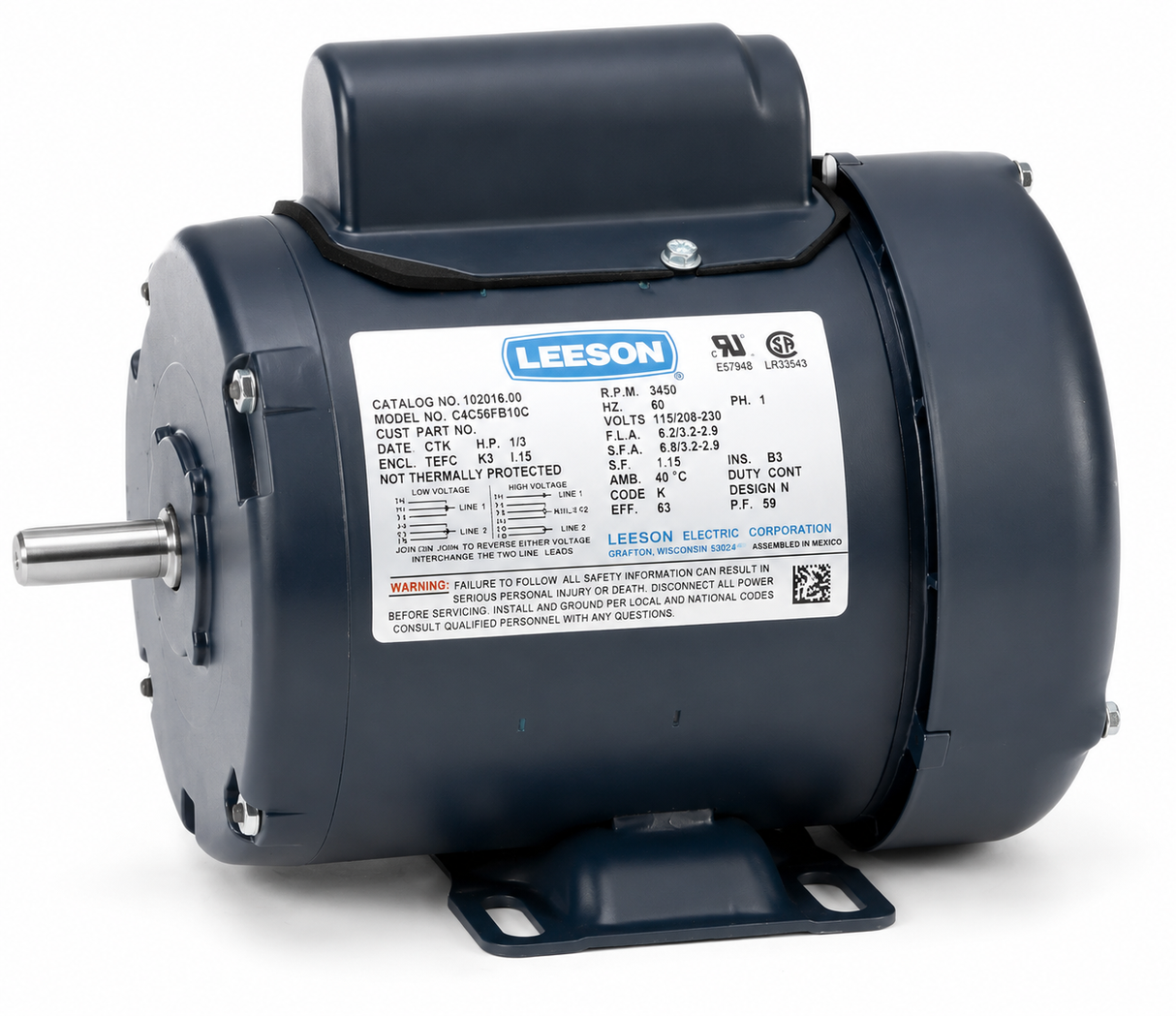

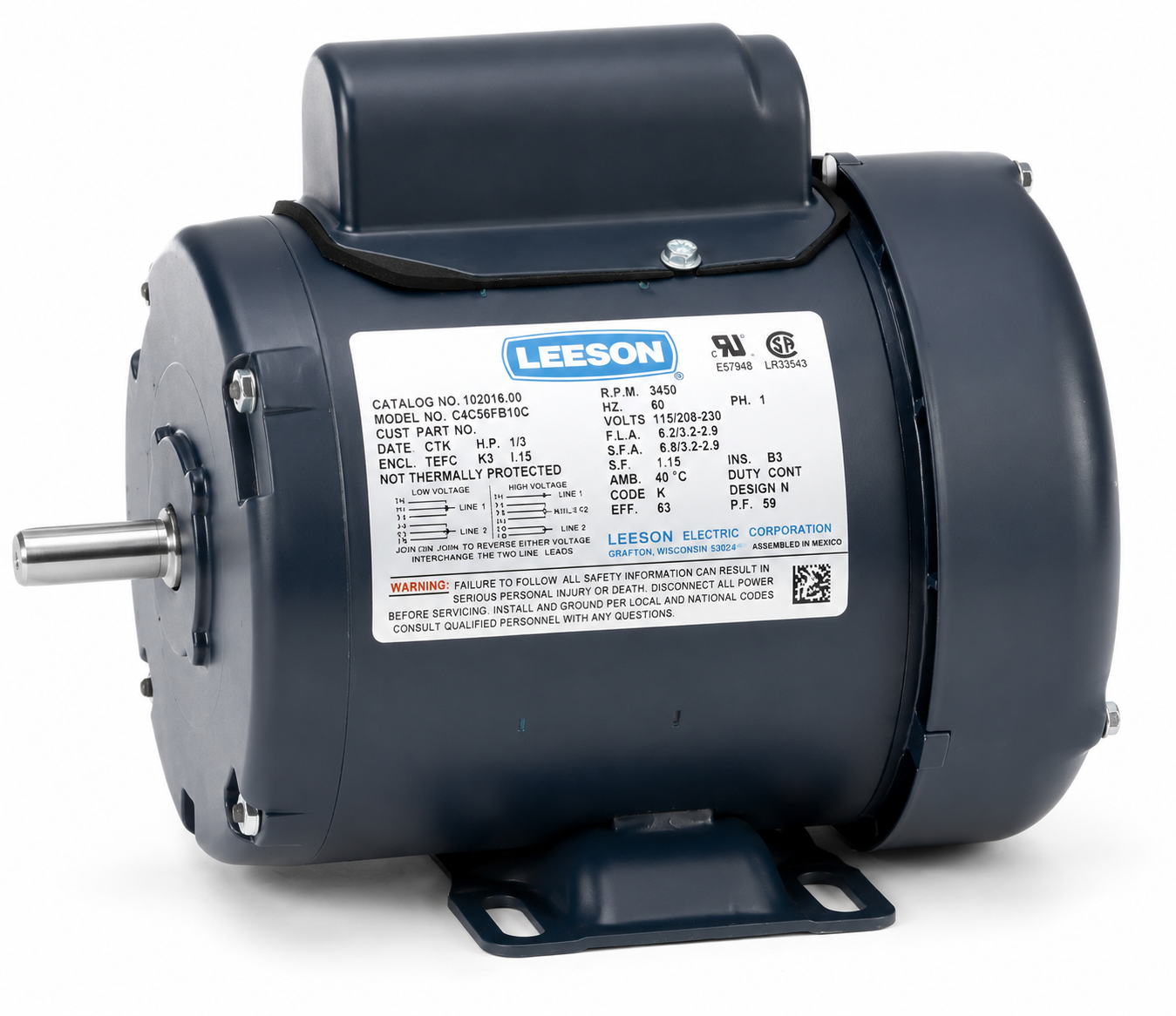

102016.00, 0.33Hp, 3600RPM, 115/230V, 1Ph, 60Hz, TEFC, Frame 48, C4C34FB10C

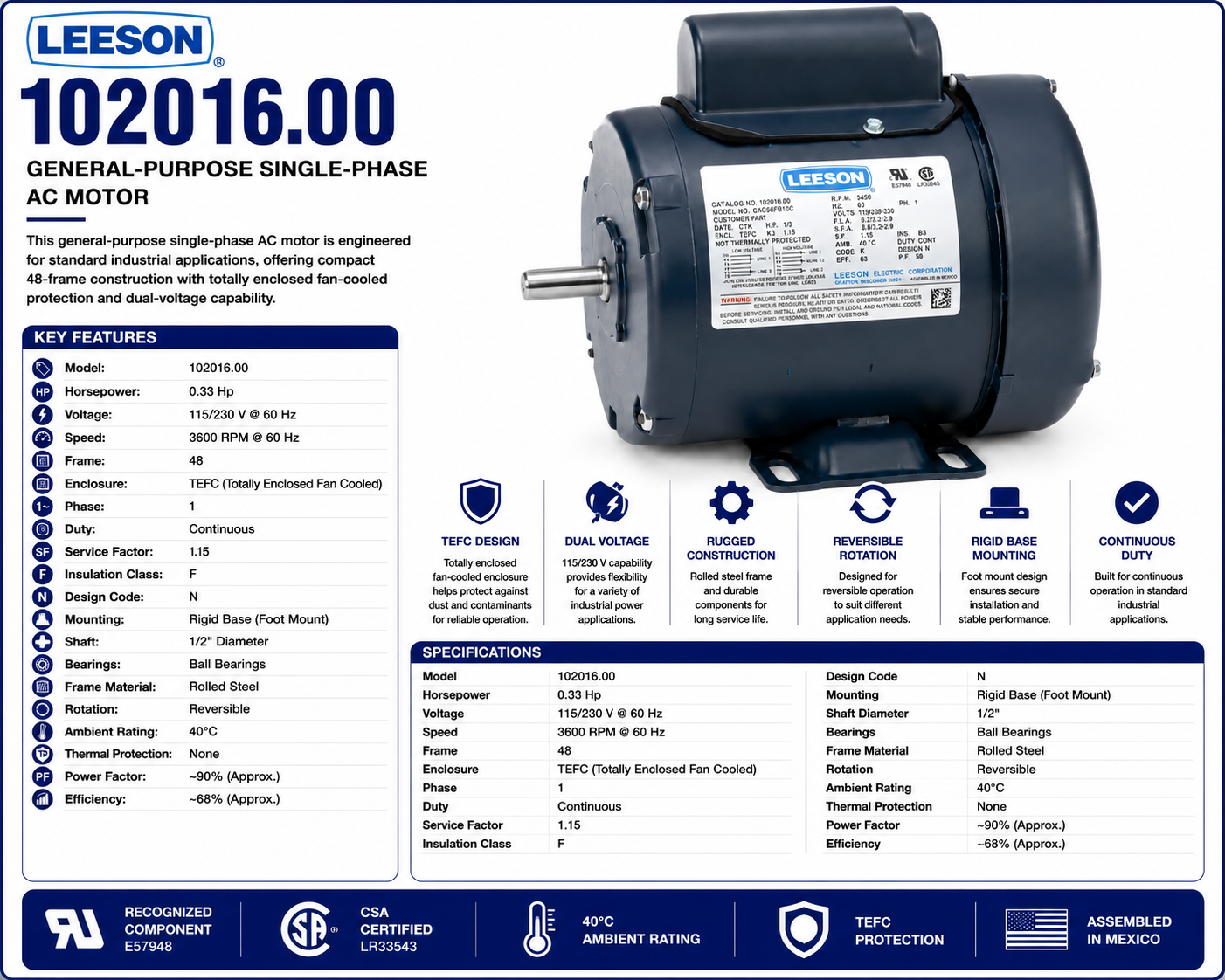

This general‑purpose single‑phase AC motor is engineered for standard industrial applications, offering compact 48‑frame construction with totally enclosed fan‑cooled protection and dual‑voltage capability.

KEY FEATURES

• Model: 102016.00

• Horsepower: 0.33 Hp

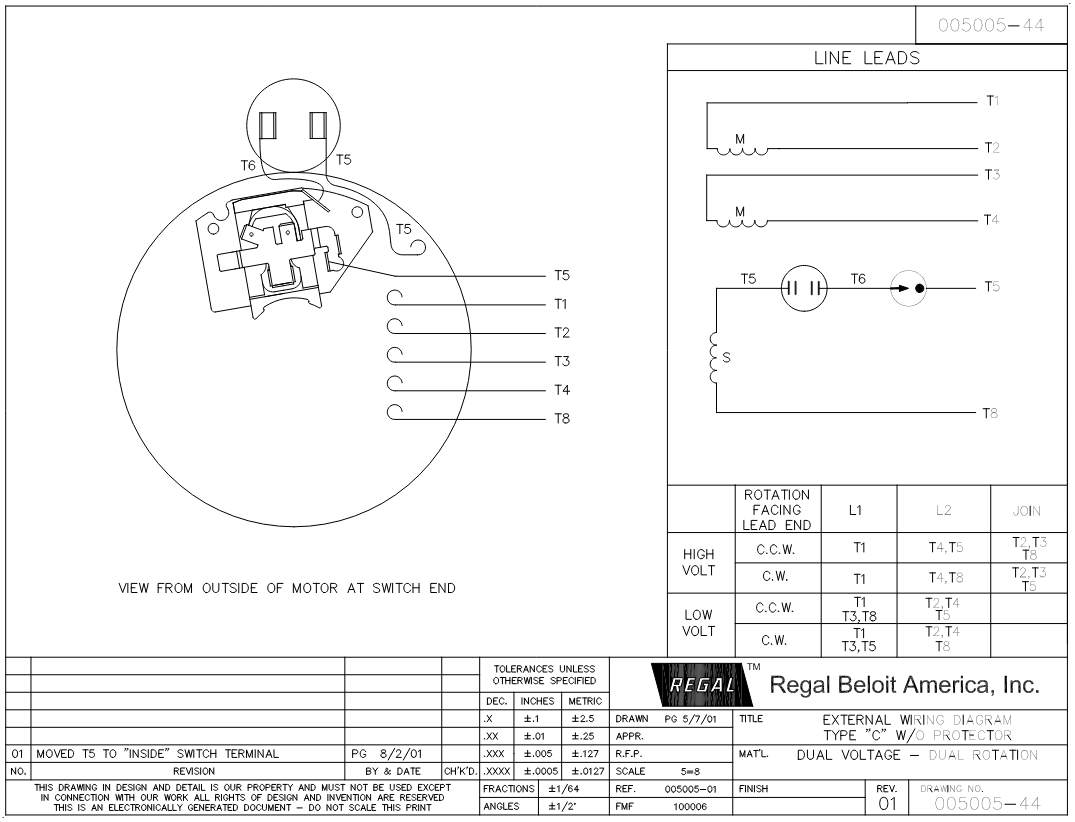

• Voltage: 115/230 V @ 60 Hz

• Speed: 3600 RPM @ 60 Hz

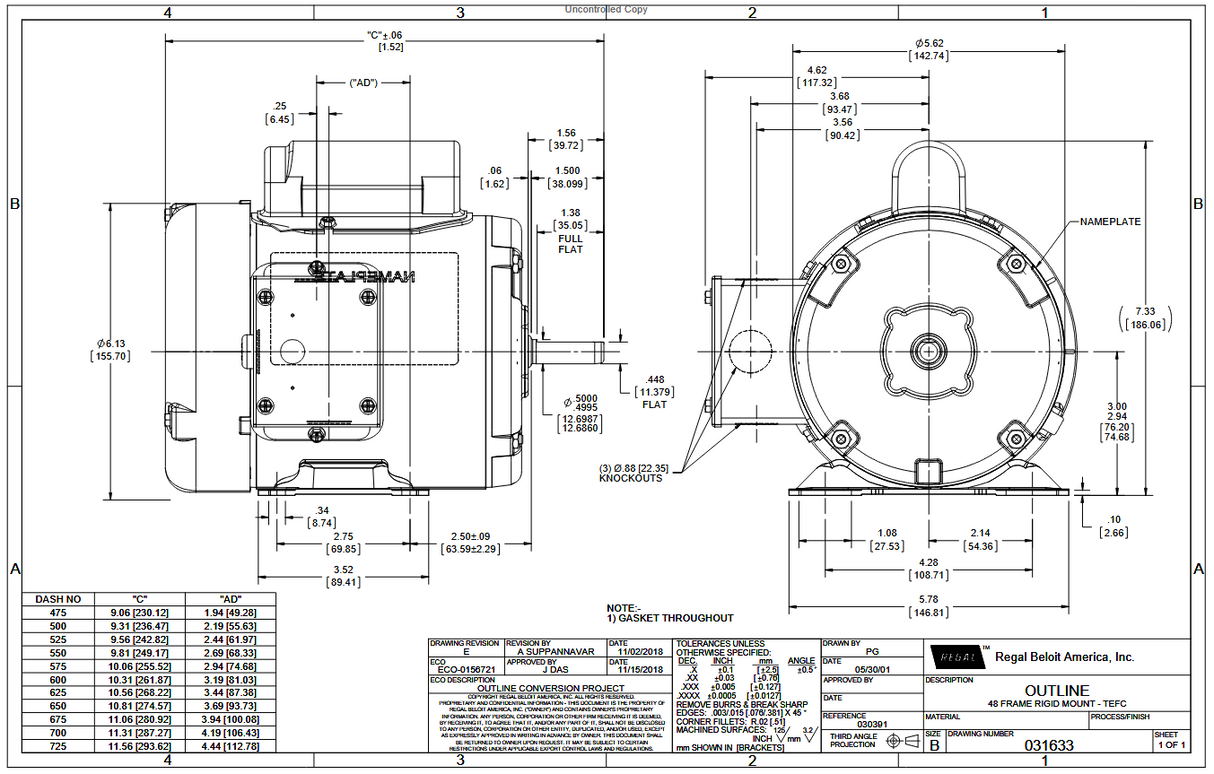

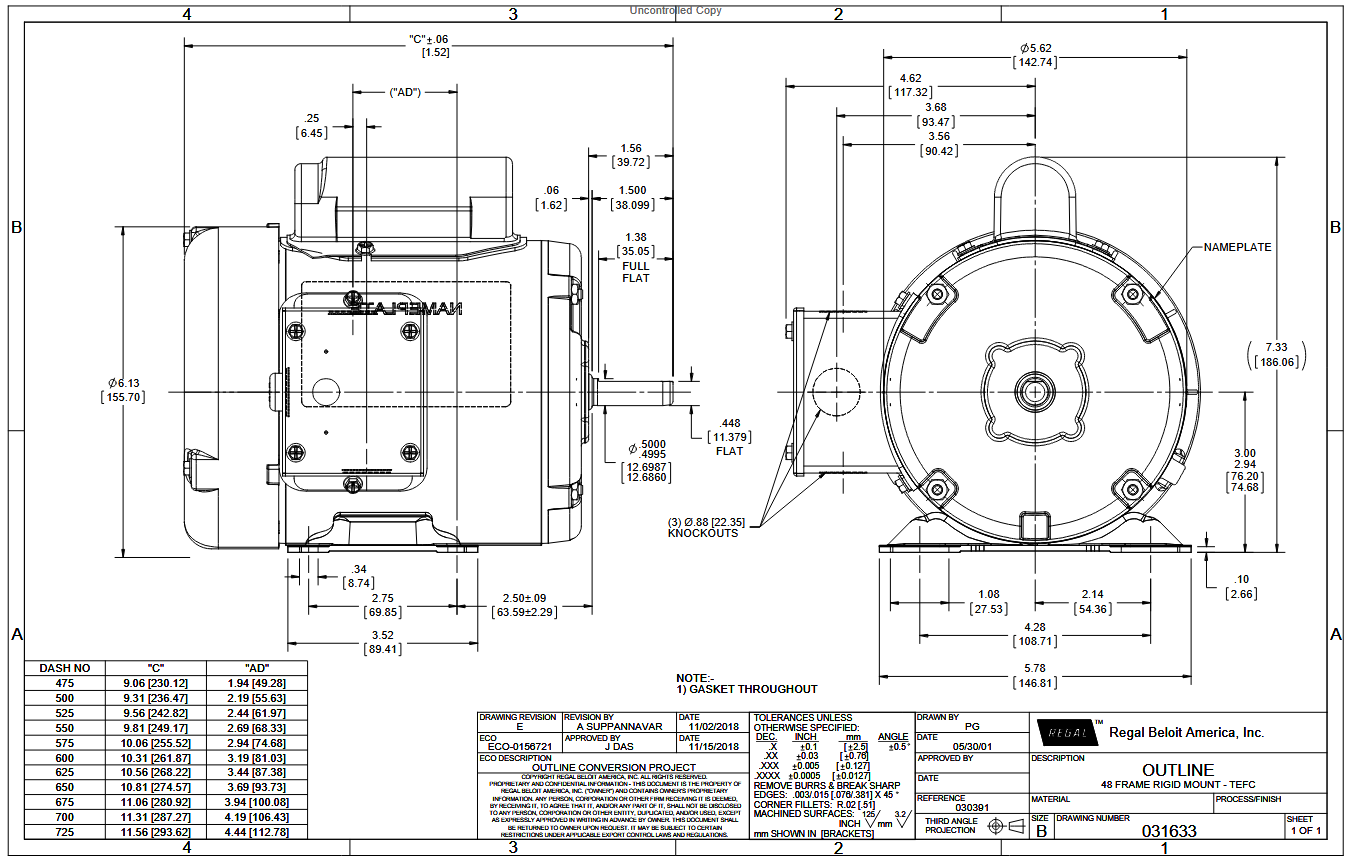

• Frame: 48

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Phase: 1

• Duty: Continuous

• Service Factor: 1.15

• Insulation Class: F

• Design Code: N

• Mounting: Rigid Base (Foot Mount)

• Shaft: 1/2" Diameter

• Bearings: Ball Bearings

• Frame Material: Rolled Steel

• Rotation: Reversible

• Ambient Rating: 40°C

• Thermal Protection: None

• Power Factor: ~90%

• Efficiency: ~68%

Note: Efficiency and power factor values are approximated based on comparable motors, as not explicitly provided.

CROSS REFERENCE

• L3405

• T13C1J4
