07K591X776G1, 10Hp, 1760 RPM, 230/460 V, 3 Ph, 60 Hz, TEAO, Frame 215TZ

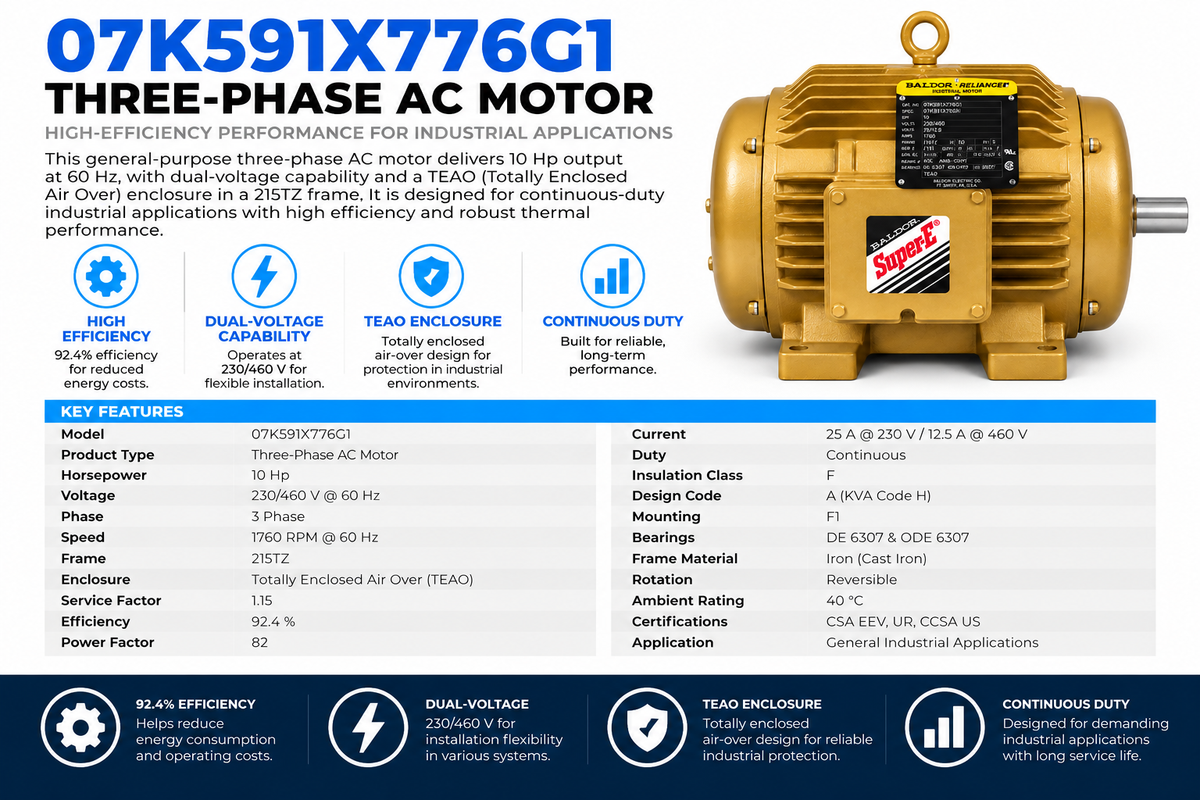

This general-purpose three-phase AC motor delivers 10 Hp output at 60 Hz, with dual-voltage capability and a TEAO (Totally Enclosed Air Over) enclosure in a 215TZ frame. It is designed for continuous-duty industrial applications with high efficiency and robust thermal performance.

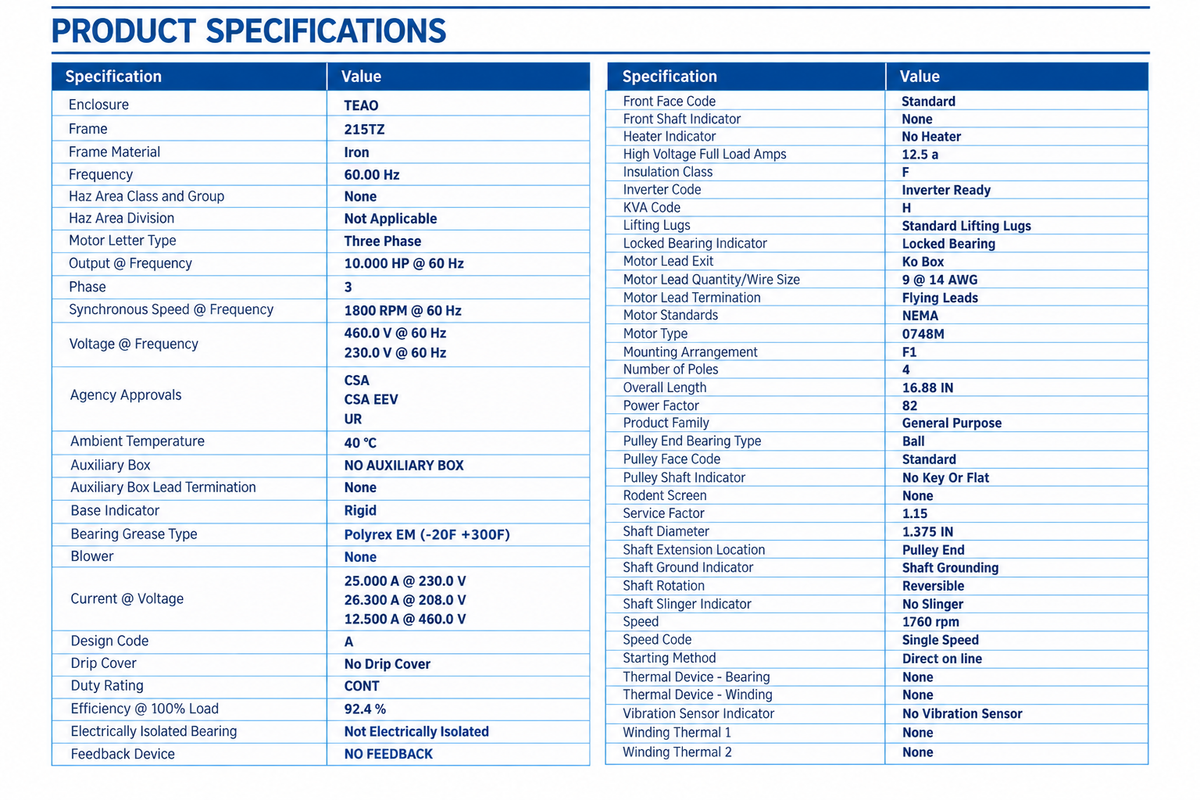

KEY FEATURES

• Model: 07K591X776G1

• Horsepower: 10 Hp

• Voltage: 230/460 V @ 60 Hz – 3 Phase

• Speed: 1760 RPM @ 60 Hz

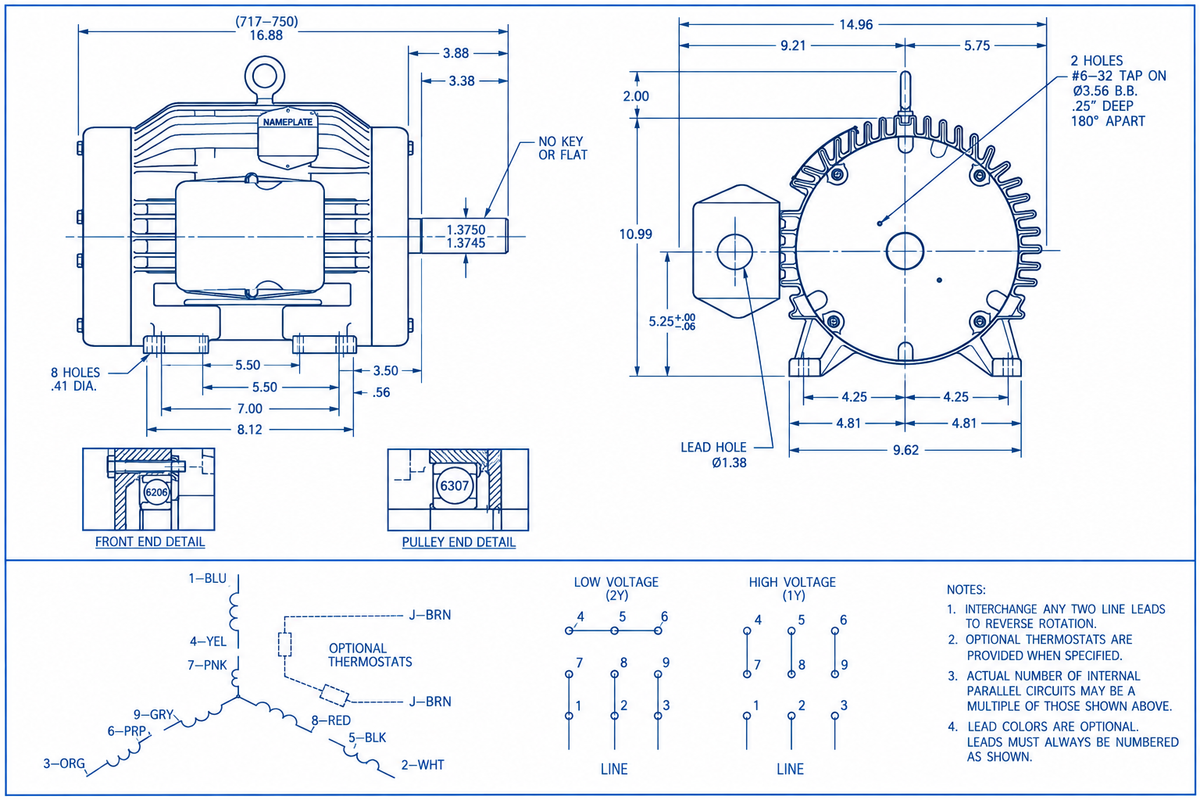

• Frame: 215TZ

• Enclosure: Totally Enclosed Air Over (TEAO)

• Service Factor: 1.15

• Efficiency: 92.4 %

• Power Factor: 82

• Current: 25 A @ 230 V / 12.5 A @ 460 V

• Duty: Continuous

• Insulation Class: F

• Design Code: A – KVA Code H

• Mounting: F1

• Bearings: DE 6307 & ODE 6307

• Frame Material: Iron

• Rotation: Reversible

• Ambient Rating: 40 °C

• Certifications: CSA EEV, UR, CCSA US
