G156 ,MARATHON, 3/4Hp,1725 Rpm, 115/230Volts,Frame:56,ODP,056B17D2012,

E-Motor Nations

$374.42

G156,Marathon, Part:056B17D2012, SVB56B17D2012G, B319,

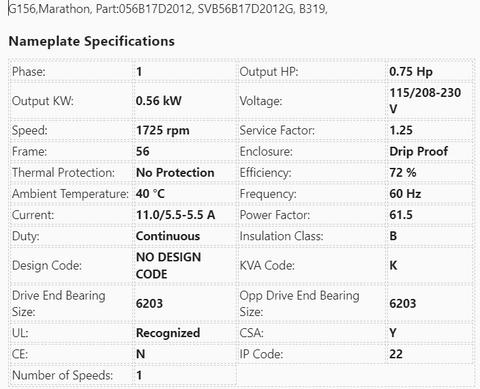

Nameplate Specifications

Phase:	1	Output HP:	0.75 Hp
Output KW:	0.56 kW	Voltage:	115/208-230 V
Speed:	1725 rpm	Service Factor:	1.25
Frame:	56	Enclosure:	Drip Proof
Thermal Protection:	No Protection	Efficiency:	72 %
Ambient Temperature:	40 °C	Frequency:	60 Hz
Current:	11.0/5.5-5.5 A	Power Factor:	61.5
Duty:	Continuous	Insulation Class:	B
Design Code:	NO DESIGN CODE	KVA Code:	K
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	N	IP Code:	22
Number of Speeds:	1

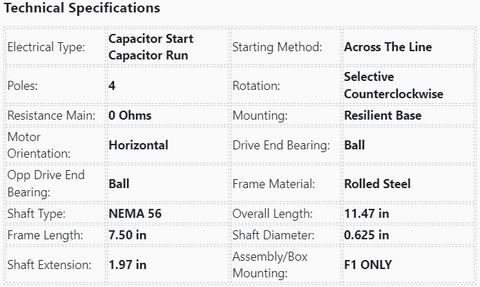

Technical Specifications

Electrical Type:	Capacitor Start Capacitor Run	Starting Method:	Across The Line
Poles:	4	Rotation:	Selective Counterclockwise
Resistance Main:	0 Ohms	Mounting:	Resilient Base
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	NEMA 56	Overall Length:	11.47 in
Frame Length:	7.50 in	Shaft Diameter:	0.625 in
Shaft Extension:	1.97 in	Assembly/Box Mounting:	F1 ONLY

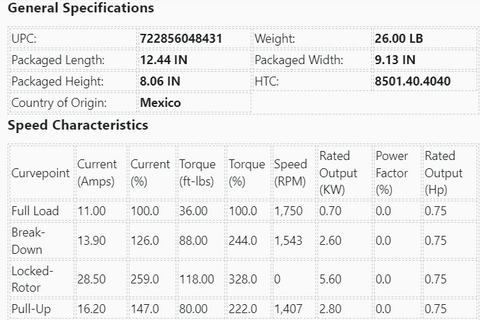

General Specifications

UPC:	722856048431	Weight:	26.00 LB
Packaged Length:	12.44 IN	Packaged Width:	9.13 IN
Packaged Height:	8.06 IN	HTC:	8501.40.4040
Country of Origin:	Mexico

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	Torque (%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Full Load	11.00	100.0	36.00	100.0	1,750	0.70	0.0	0.75
Break-Down	13.90	126.0	88.00	244.0	1,543	2.60	0.0	0.75
Locked-Rotor	28.50	259.0	118.00	328.0	0	5.60	0.0	0.75
Pull-Up	16.20	147.0	80.00	222.0	1,407	2.80	0.0	0.75

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	125 %	150 %	175 %	200 %
Current (Amps)	3.49	3.75	4.22	4.55	5.50	6.00	6.85	8.05	9.73
Rated Output (KW)	0.15	0.28	0.43	0.60	0.78	0.96	1.18	1.43	1.78
Efficiency (%)	0.0	45.2	62.2	68.3	72.0	71.8	70.8	68.2	62.1
Power Factor (%)	18.7	32.5	44.3	56.9	61.5	69.7	74.9	77.2	79.3
Speed (RPM)	1,800	1,782	1,771	1,760	1,740	1,730	1,711	1,690	1,635
Temp. Rise @ FL	0.0	0.0	0.0	0.0	55.0	75.0	0.0	0.0	0.0
Torque (ft-lbs)	0.00	8.00	17.00	26.00	36.00	45.00	55.00	65.00	76.00

KEY FEATURES

UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Premium efficiency promotes improved reliability.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
