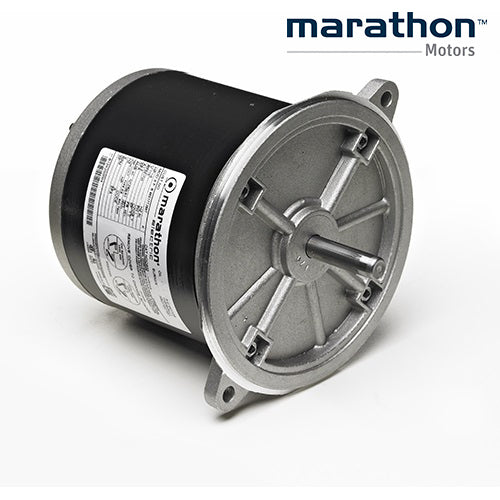

O002, Marathon, 1/4 Hp, 1725 RPM, 115V, FR: 48N, Replace 316P870, EL2024 - HVAC ELECTRIC MOTOR - MARATHON - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur - fan

O002, Marathon, 1/4 Hp, 1725 RPM, 115V, FR: 48N, Replace 316P870, EL2024

MARATHON

  • $348.98


O002, MARATHON 1/4 Hp, 1725 RPM, 115V, FR:48N, REPLACE OBSELETE 316P870, EL2024,CENTURY

Nameplate Specifications

Output HP: 0.25 Hp Output KW: 0.19 kW
Frequency: 60 Hz Voltage: 115 V
Current: 3.9 A Speed: 1725 rpm
Service Factor: 1 Phase: 1
Efficiency: 60.2 % Power Factor: 72.2
Duty: Continuous Insulation Class: B
Design Code: NO DESIGN CODE KVA Code: M
Frame: 48N Enclosure: Semi Enclosed
Thermal Protection: Manual Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 10

Technical Specifications

Electrical Type: Split Phase Starting Method: Across The Line
Poles: 4 Rotation: Selective Clockwise
Resistance Main: 0 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 48 Overall Length: 7.59 in
Frame Length: 4.25 in Shaft Diameter: 0.500 in
Shaft Extension: 1.97 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 4.50 25.60 1,493 0.80 0.25
Locked-Rotor 12.50 18.10 0 2.40 0.25
Pull-Up 12.40 16.60 21 2.30 0.25

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 % 175 %
Current (Amps) 2.82 2.92 3.12 3.46 3.90 4.48 5.28 6.70
Rated Output (KW) 0.07 0.12 0.17 0.23 0.30 0.37 0.47 0.61
Efficiency (%) 60.2
Power Factor (%) 0.0
Speed (RPM) 1,800 1,778 1,762 1,748 1,727 1,703 1,668 1,602
Temp. Rise @ FL 0.0
Torque (ft-lbs) 0.00 3.04 6.02 9.07 12.20 15.50 19.00 23.00
