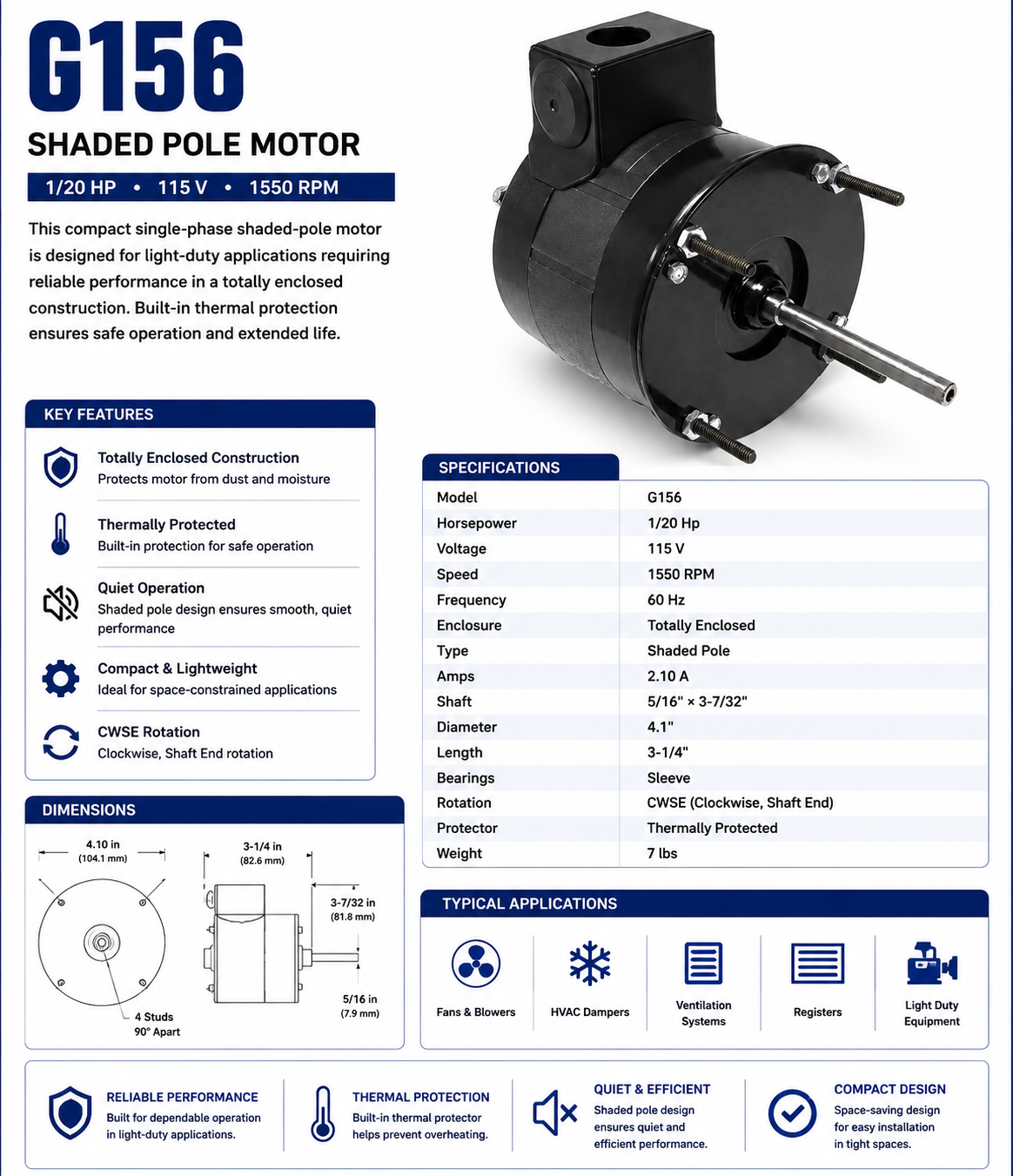

G156, 1/20Hp, 1550 RPM, 115 V, Single‑Phase, 60 Hz, Totally Enclosed, Shaded Pole

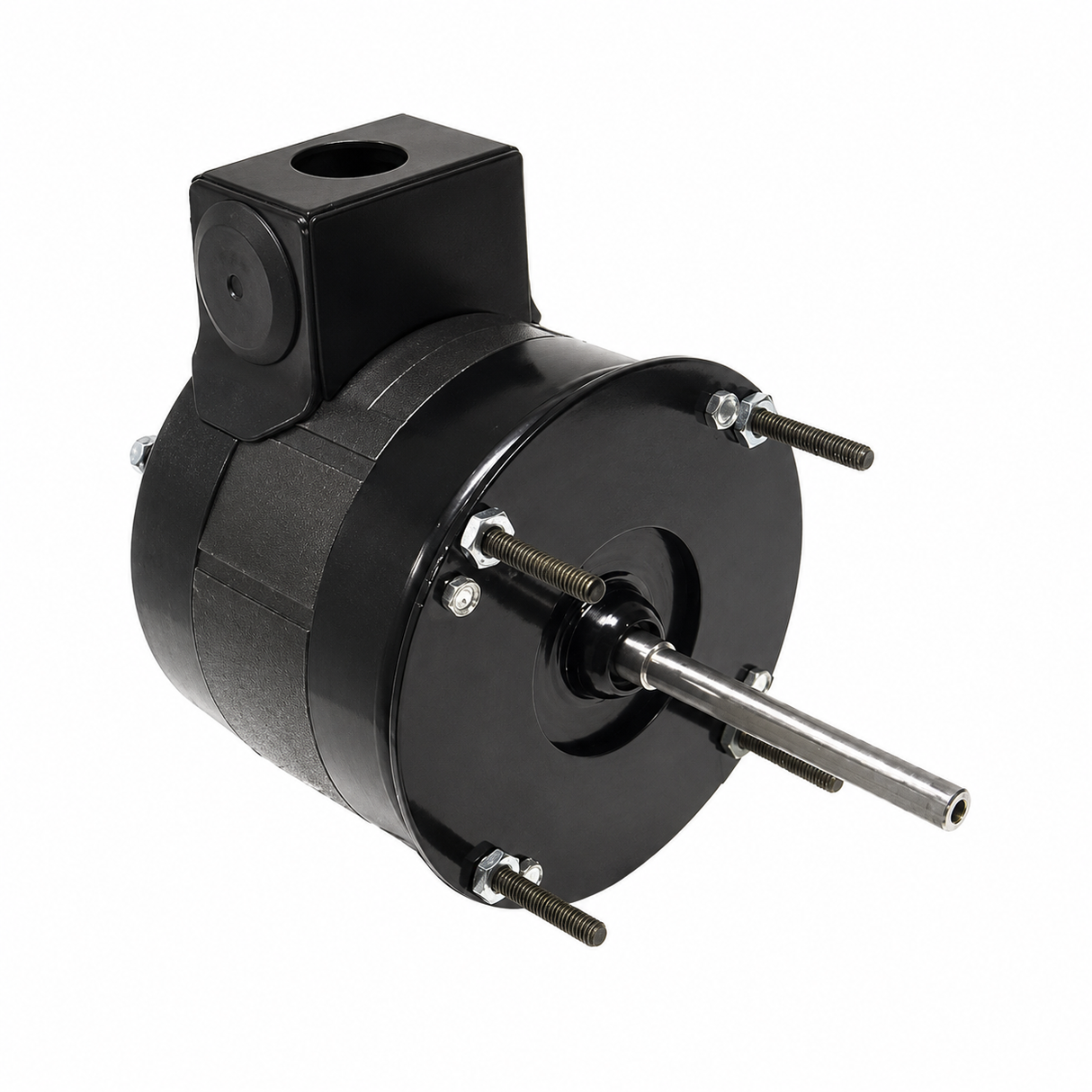

This compact single‑phase shaded‑pole motor delivers 1/20 Hp at 1550 RPM and 115 V, designed for light‑duty applications requiring reliable, thermally protected operation in a totally enclosed package.

KEY FEATURES

• Model: G156

• Horsepower: 1/20 Hp

• Voltage: 115 V

• Speed: 1550 RPM

• Frequency: 60 Hz

• Enclosure: Totally Enclosed

• Type: Shaded Pole

• Amps: 2.10 A

• Shaft: 5/16" × 3‑7/32"

• Diameter: 4.1"

• Length: 3‑1/4"

• Bearings: Sleeve

• Rotation: CWSE

• Protector: Thermally Protected

• Weight: 7 lbs

CROSS REFERENCE

• 3M568

• 8424015054

• CA2G144 / CA2G156
