MARATHON  |  SKU: EMN-007443

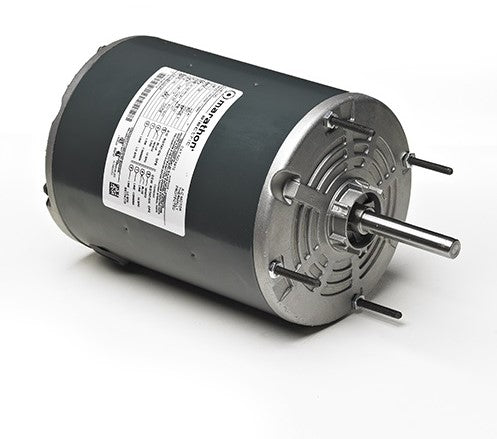

X910, Marathon, 1/4-1/12 Hp, 1800/1200 rpm. 115V, 48, 048S17T366, TEAO,

$342.15
shipping

Estimate shipping

Description

X910, Marathon, 048S17T366, Replace model 2WD48S17T366A,

0.25,0.08 Hp Output KW: 0.19 kW
Frequency: 60 Hz Voltage: 115 V
Current: 3.95,2.25 A Speed: 1725,1140 rpm
Service Factor: 1 Phase: 1
Efficiency: 62 % Power Factor: 68
Duty: Continuous Insulation Class: B
Design Code: 2VT KVA Code: R
Frame: 48 Enclosure: Totally Enclosed Air Over
Thermal Protection: Automatic Lock Rotor Only Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Split Phase Starting Method: Across The Line
Poles: 4//6 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Round - Extended Studs
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 48 Overall Length: 11.09 in
Frame Length: 6.50 in Shaft Diameter: 0.500 in
Shaft Extension: 2.59 in Assembly/Box Mounting: F1 Only

Speed Characteristics
