MARATHON | SKU:
EMN-007266

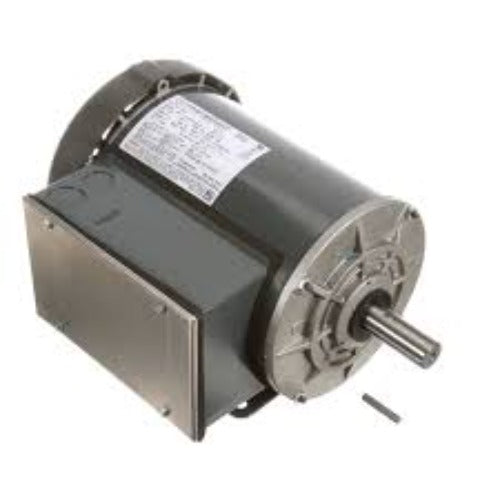

I220, Marathon, 1.5 Hp, 3485 Rpm, 115-208/230V, Fr:143T, 143TBFR5301, TEFC
Regular price
$809.89
Unit price
/
Unavailable
I220, Marathon, 1.5 Hp, 3485 Rpm, 115-208/230V, Fr:143T, 143TBFR5301, TEFC - Motor without c-flange is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
![I220, Marathon, 1.5 Hp, 3485 Rpm, 115-208/230V, Fr:143T, 143TBFR5301, TEFC - FARM DUTY - MARATHON - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur](http://www.emotornations.com/cdn/shop/products/I220_MARATHON.jpg?v=1756479552&width=112)
I220, Marathon, 1.5 Hp, 3485 Rpm, 115-208/230V, Fr:143T, 143TBFR530...
Regular price
From
$809.89
Unit price
/
Unavailable
Description
Description
I220, Marathon, 143TBFR5301, Maxmotion
Nameplate Specifications
| Output HP : | 1.50 HP | Output KW : | 1.1 kW |
| Frequency : | 60 Hz | Voltage : | 115/208-230 V |
| Current : | 14.2/7.7-7.1 A | Speed : | 3485 RPM |
| Service Factor : | 1.15 | Phase : | 1 |
| Efficiency : | 78.5 % | Duty : | Continous |
| Insulation Class : | B | Design Code : | L |
| KVA Code : | H | Frame : | 143T |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6205 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 43 |
Technical Specifications
| Electrical Type : | Capacitor Start Capacitor Run | Starting Method : | Across The Line |
| Poles : | 2 | Rotation : | Selective Counterclockwise |
| Mounting : | Rigid base | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | T |
| Overall Length : | 12.87 in | Frame Length : | 7.56 in |
| Shaft Diameter : | 0.875 in | Shaft Extension : | 2.28 in |
| Assembly/Box Mounting : | F1 Only | UPC : | 722856008886 |
| Weight : | 33.00 LB |
