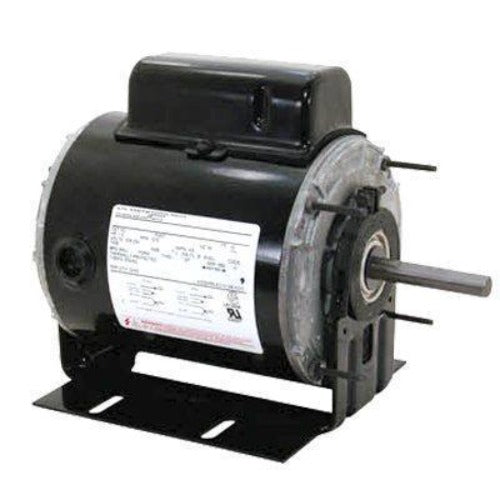

A.O SMITH  |  SKU: EMN-015802

CENTURY,731A,1/4Hp,1075RPM,115/208-230V,Tenv,FR:48,731,

$388.51
shipping

Estimate shipping

Description
CENTURY, AO SMITH, 731A,731,
REPLACE D734, 3208, EM3-208, 731, F48Y60A01, UH1026, US1026, US1026NB, 152663, C747, MOT 6196, HF3H048, HF3H088, HF3H7048,HF3HO48N
  • Horsepower :1/4
  • Voltage :115/208-230
  • Amps :3.8/1.9
  • RPM :1140
  • Frequency :60 Hz
  • Length :6-1/4"
  • "C" Dim. :11-11/32"
  • Enclosure :Totally Enclosed
  • Shaft Dim. :1/2” x 4-1/2”
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :60°C
  • Capacitor Rating :4MFD-370VAC
  • Feature(s) :Class 'B' Insulation, Resilient Base, Capacitor Mounted, Includes split bushing and key 5/8" shafts
  • Weight (lbs.) :17

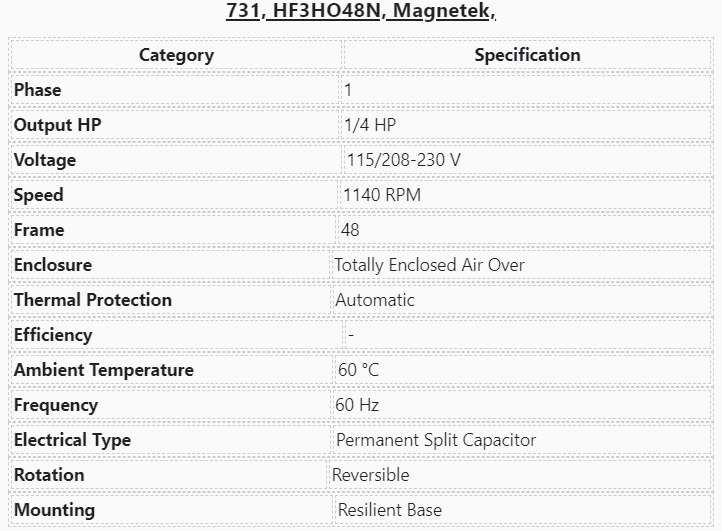

731, HF3HO48N, Magnetek,

Category Specification
Phase 1
Output HP 1/4 HP
Voltage 115/208-230 V
Speed 1140 RPM
Frame 48
Enclosure Totally Enclosed Air Over
Thermal Protection Automatic
Efficiency -
Ambient Temperature 60 °C
Frequency 60 Hz
Electrical Type Permanent Split Capacitor
Rotation Reversible
Mounting Resilient Base
