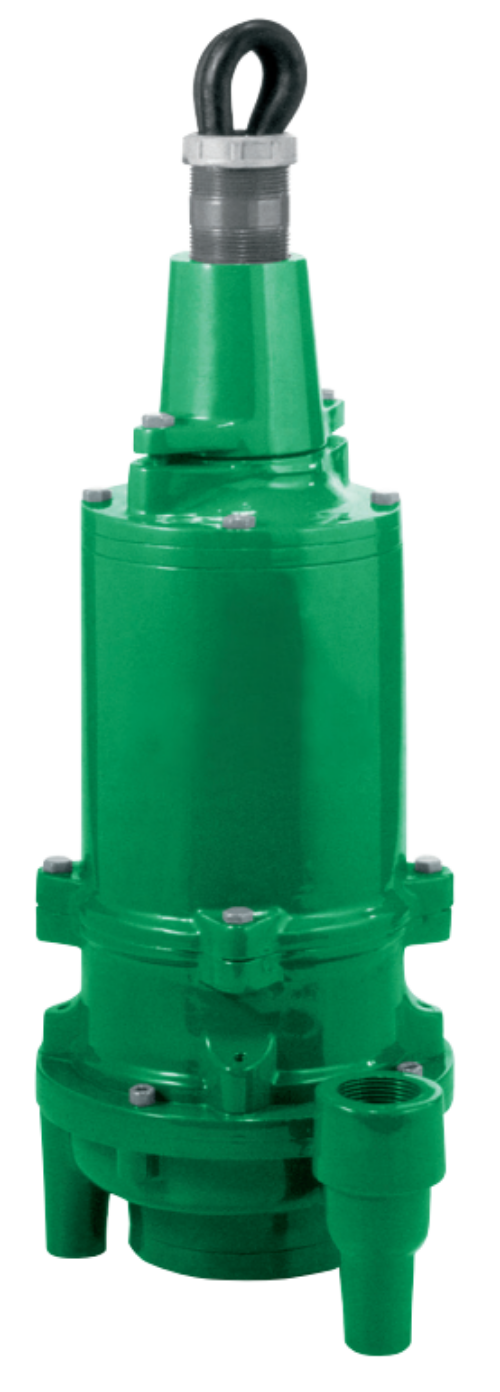

WGL20-53, Submersible Centrifugal Grinder Pump Myers, 2Hp , 575V , 3Ph , cord 20'

WGL20-53, Submersible Centrifugal Grinder Pump Myers, 2Hp , 575V , 3Ph , cord 20', PT9817954,

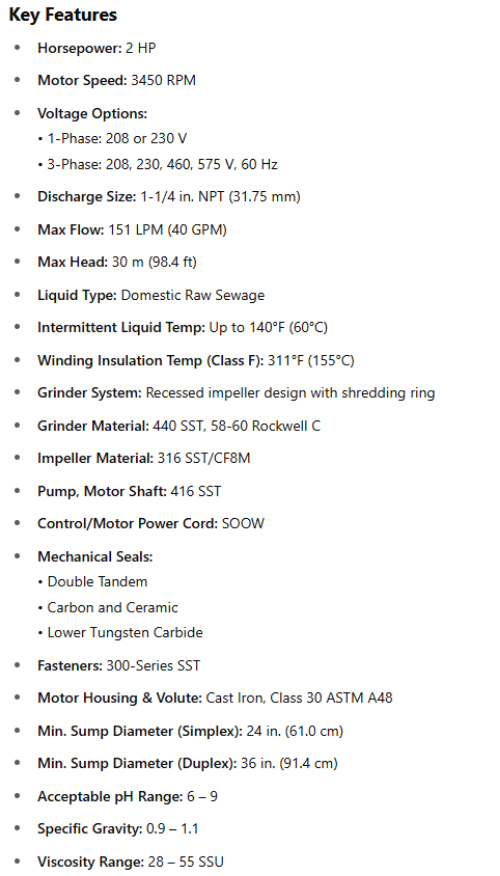

Key Features

• Horsepower: 2 HP

• Motor Speed: 3450 RPM

• Voltage Options:
  • 1-Phase: 208 or 230 V
  • 3-Phase: 208, 230, 460, 575 V, 60 Hz

• Discharge Size: 1-1/4 in. NPT (31.75 mm)

• Max Flow: 151 LPM (40 GPM)

• Max Head: 30 m (98.4 ft)

• Liquid Type: Domestic Raw Sewage

• Intermittent Liquid Temp: Up to 140°F (60°C)

• Winding Insulation Temp (Class F): 311°F (155°C)

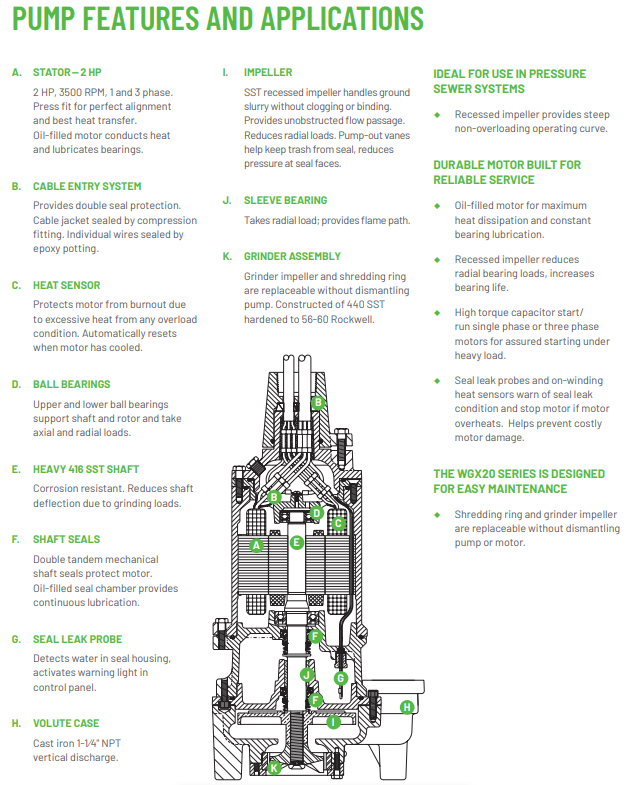

• Grinder System: Recessed impeller design with shredding ring

• Grinder Material: 440 SST, 58-60 Rockwell C

• Impeller Material: 316 SST/CF8M

• Pump, Motor Shaft: 416 SST

• Control/Motor Power Cord: SOOW

• Mechanical Seals:
  • Double Tandem
  • Carbon and Ceramic
  • Lower Tungsten Carbide

• Fasteners: 300-Series SST

• Motor Housing & Volute: Cast Iron, Class 30 ASTM A48

• Min. Sump Diameter (Simplex): 24 in. (61.0 cm)

• Min. Sump Diameter (Duplex): 36 in. (91.4 cm)

• Acceptable pH Range: 6 – 9

• Specific Gravity: 0.9 – 1.1

• Viscosity Range: 28 – 55 SSU
