CENTURY  |  SKU: EMN-015344

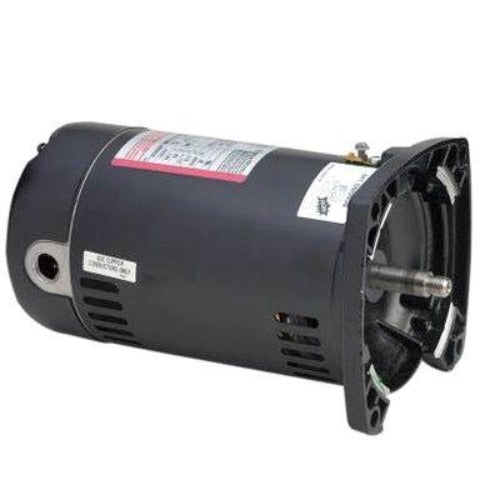

USQ1102 - 1 HP, 115/230 VOLT - Century Swimming Pool & Spa Pump Motors 48Y Square Flange

$694.97
shipping

Estimate shipping

Description
48Y Square Flange replacement pool motor. Motor is found on many in ground pool pumps such as Sta-Rite Max-E Glas, Dura Glas, Dyna Glas. Motor has a square type flange for mounting the pump. 4 non-threaded bolts holes in flange. 48Y motors do not have internal threaded hole in shaft. 1 year manufacture warranty. US Electric Equivalent EUSQ1102 -
  • Automatic Overload Protection - Service Factor 1.25
  • Non-Reversible - CCW Rotation facing the shaft
  • Open Drip Proof - Ball Bearings
  • 48Y Frame-Square Flange; 5/8" diameter threaded stainless steel shaft
  • Horsepower :1
  • Voltage :115/230
  • Amps :15.3/7.6 (Max)
  • RPM :3450
  • Frequency :60 Hz
  • Length :12-1/8"
  • Enclosure :Open Drip-Proof
  • Type :Capacitor Start
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Ball
  • Rotation :CCWPE
  • Protector :Automatic
  • Service Factor :1.25
  • Phase :1
  • Ambient Temp. :50°C
  • Feature(s) :Class 'B' Insulation, 303 Stainless Steel Shaft
  • Weight (lbs.) :22

    •

      REFERENCE: SQ1102, SQ 1102, USQ 1102
