MPW40-3-C016, Manual Motor Protector, 40A, 0.10-0.16A Overload Setting Range, 3-Pole, Screw Terminal, Rotary Handle, IP20

MPW40-3-C016, Manual Motor Protector, 40A, 0.10-0.16A Overload Setting Range, 3-Pole, Screw Terminal, Rotary Handle, IP20

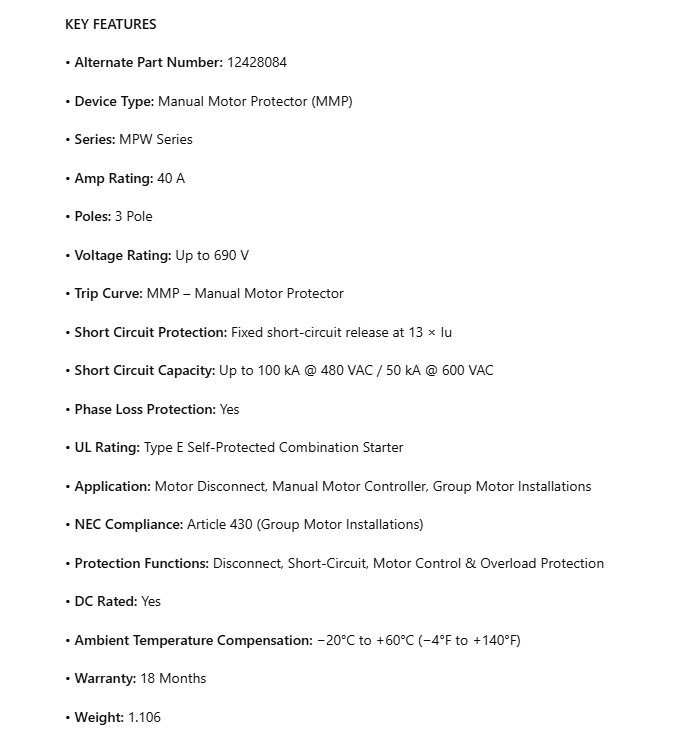

KEY FEATURES

• Alternate Part Number: 12428084

• Device Type: Manual Motor Protector (MMP)

• Series: MPW Series

• Amp Rating: 40 A

• Poles: 3 Pole

• Voltage Rating: Up to 690 V

• Trip Curve: MMP – Manual Motor Protector

• Short Circuit Protection: Fixed short-circuit release at 13 × Iu

• Short Circuit Capacity: Up to 100 kA @ 480 VAC / 50 kA @ 600 VAC

• Phase Loss Protection: Yes

• UL Rating: Type E Self-Protected Combination Starter

• Application: Motor Disconnect, Manual Motor Controller, Group Motor Installations

• NEC Compliance: Article 430 (Group Motor Installations)

• Protection Functions: Disconnect, Short-Circuit, Motor Control & Overload Protection

• DC Rated: Yes

• Ambient Temperature Compensation: −20°C to +60°C (−4°F to +140°F)

• Warranty: 18 Months

• Weight: 1.106
