E-Motor Nations  |  SKU: EMN-018750

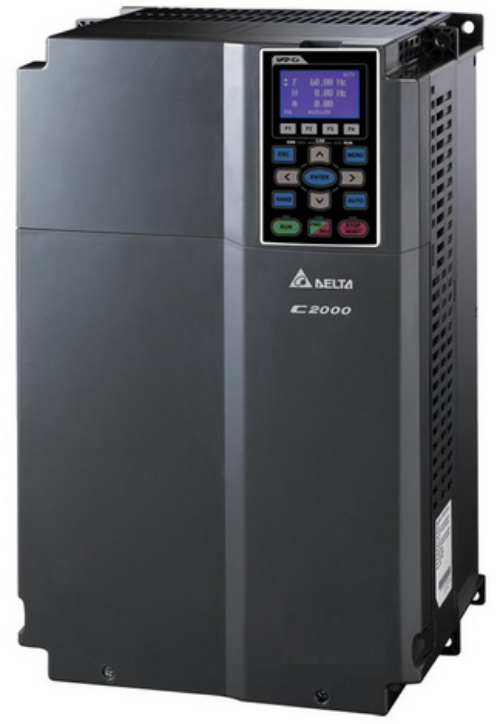

C-VFD150C23A-21, (C2000+) 15Hp (SHD 49.0A)/ 20Hp (HD 65.0A), 3 Ø 230VAC, 0-599.00Hz (o/p), (V/HZ, VC+PG, SVC, FOC, TQC & PM), c/w PLC, NEMA 1, Fr. C

$3,224.21
shipping

Estimate shipping

Description

C-VFD150C23A-21, (C2000+) 15Hp (SHD 49.0A)/ 20Hp (HD 65.0A), 3 Ø 230VAC, 0-599.00Hz (o/p), (V/HZ, VC+PG, SVC, FOC, TQC & PM), c/w PLC, NEMA 1, Fr. C

Equivalent : Delta MS-VFD65AMS23ANSAA, MS-VFD65AMS23ANSHA & CP-VFD150CP23A-21

Table 1: General Specifications Details
Control Methods - Volt/Hertz
- Position, Torque
- Sensorless Vector, FOC
- Closed Loop Vector Control
Motor Compatibility - Induction Motors (IM)
- Interior Permanent Magnet Motors (IPM)
- Surface Permanent Magnet Motors (SPM)
Torque Rating Constant and Variable Torque rated
Voltage Ratings - 230/460VAC: Normal & Heavy Duty
- 575/690VAC: Light, Normal & Heavy Duty
Available Voltages - 230Vac 3-phase input/output (HD 1 ~ 125HP)
- 460Vac 3-phase input/output (HD 1 ~ 600HP)
- 575/690Vac 3-phase input, 460Vac 3-phase output (HD 1/4 ~ 500HP)
Speed Range - 0.01 ~ 599 Hz (Light & Normal Duty)
- 0.00 ~ 300 Hz (Heavy Duty)
Torque Control - 150% starting torque at low speeds
- 4-quadrant torque control & limit
Environment Adaptability - Conformal coated circuit boards (IEC60721-3-3, class 3C2)
- Adaptable to 50°C environment
- RFI switch for IT mains



Table 2: Features and Connectivity Details
Built-in Functions - Realtime clock & calendar
- Built-in 10K step capacity PLC
- Built-in dynamic braking transistors (Frames A, B & C)
Inputs - 12 Digital (4 dedicated, 8 programmable)
- 3 Analog Inputs
- Optional Digital I/Os: Up to 6 DI & 6 relays (Total: 10 DI / 6 DO)
- Optional Analog I/Os: +2 Analog In / 2 Analog Out (Total: 4 AI / 3 AO)
Outputs - 2 Dry Contact Relays (1 NO, 1 NC)
- 2 Open Collector Transistors
- 1 Digital Frequency Output
- 1 Analog Output (0 ~ 10V, 0 ~ 20mA, 4 ~ 20mA)
Communication - 2 RS-485 Serial Ports (2 RJ-45)
- Resident Protocols: CANopen, Modbus RTU & ASCII
- Optional Protocols: Profibus DP, DeviceNet, Modbus TCP, Ethernet/IP, CANopen
Option Card Slots - 3 Slots: 1 for I/O cards, 1 for PG Feedback, 1 for Communication cards
Keypad - Removable IP66-rated Keypad
