E-Motor Nations | SKU:
EMN-018193

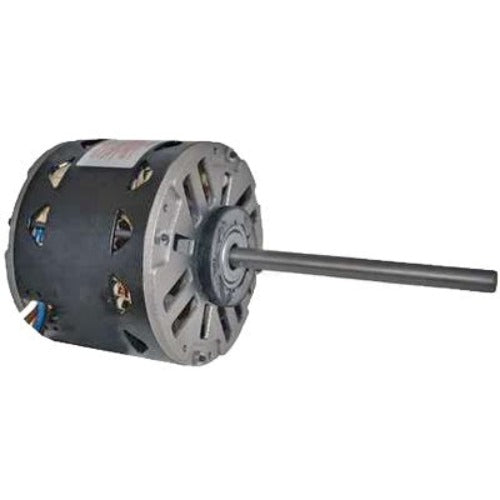

144A, Century, 1/4Hp, 1050 Rpm, Phase: 1 , 115 Volts, Frame: 48, OAO,
Regular price
$424.99
Unit price
/
Unavailable
144A, Century, 1/4Hp, 1050 Rpm, Phase: 1 , 115 Volts, Frame: 48, OAO, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
144A, Century, 1/4Hp, 1050 Rpm, Phase: 1 , 115 Volts, Frame: 48, OAO,
Regular price
$424.99
Unit price
/
Unavailable
Description
Description

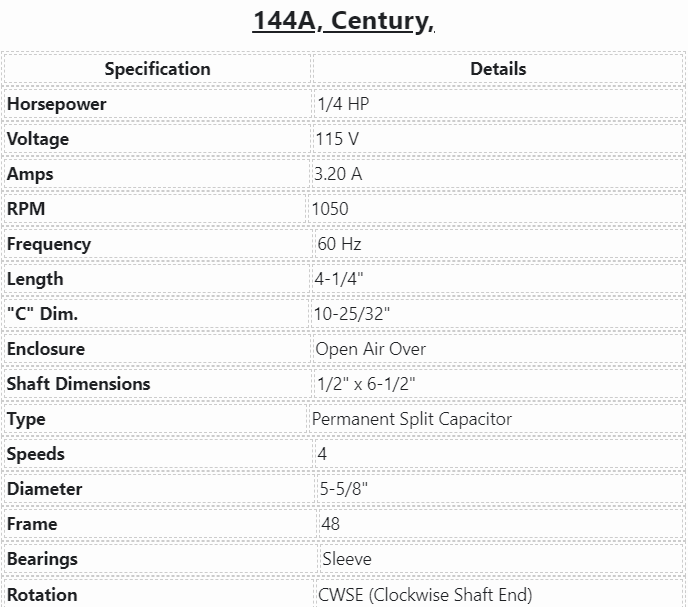

144A, Century,
| Specification | Details |
|---|
| Horsepower | 1/4 HP |
| Voltage | 115 V |
| Amps | 3.20 A |
| RPM | 1050 |
| Frequency | 60 Hz |
| Length | 4-1/4" |
| "C" Dim. | 10-25/32" |
| Enclosure | Open Air Over |
| Shaft Dimensions | 1/2" x 6-1/2" |
| Type | Permanent Split Capacitor |
| Speeds | 4 |
| Diameter | 5-5/8" |
| Frame | 48 |
| Bearings | Sleeve |
| Rotation | CWSE (Clockwise Shaft End) |

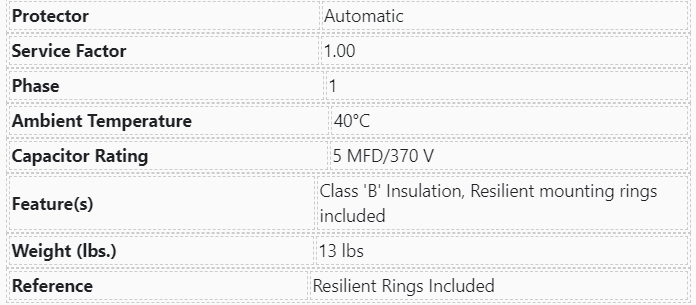

| Protector | Automatic |
| Service Factor | 1.00 |
| Phase | 1 |
| Ambient Temperature | 40°C |
| Capacitor Rating | 5 MFD/370 V |
| Feature(s) | Class 'B' Insulation, Resilient mounting rings included |
| Weight (lbs.) | 13 lbs |
| Reference | Resilient Rings Included |
