E-Motor Nations | SKU :
EMN-018323
BSM100C-4150BA,Resolver,S4P160W110,Baldor,Brake,AC Brushless Servo,C-Series,
Prix habituel
$6,871.91
Prix unitaire
/
Indisponible
BSM100C-4150BA,Resolver,S4P160W110,Baldor,Brake,AC Brushless Servo,C-Series, est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
shipping
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
BSM100C-4150BA,Resolver,S4P160W110,Baldor,Brake,AC Brushless Servo,...
Prix habituel
$6,871.91
Prix unitaire
/
Indisponible
Description
Description

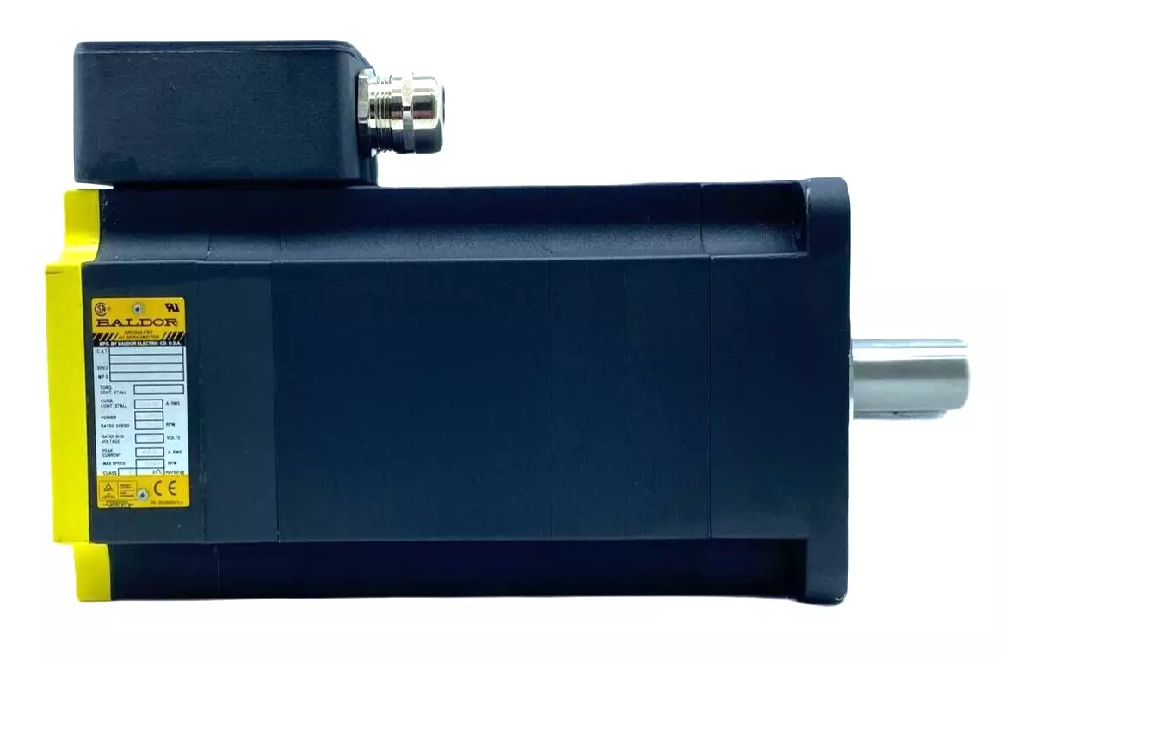

BSM100C-4150BA, Baldor, ABB, Spec S4P160W110, Brake Resolver T'STAT,
Note: Built-to-order (Delivery to be confirmed by ABB Baldor 12-14 week)
| CAT.NO. | BSM100C-4150BA | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPEC. | S4P160W110 | ||||||||||||||||
| MFG.NO. | Brake Motor | ||||||||||||||||
| TORQ CONT STALL | 20 NM | ||||||||||||||||
| CUR CONT STALL/A RMS | 16.9 | ||||||||||||||||
| POWER | 5.03KW | ||||||||||||||||
| RATED SPEED/RPM(1/MIN) | 2400 | ||||||||||||||||
| RATED BUS VOLTS | 320 | ||||||||||||||||
| PEAK CUR/A RMS | 50.8 | ||||||||||||||||
| MAX SPEED/RPM(1/MIN) | 6000 | ||||||||||||||||
| IP | 54 | IC | 410 | WT. | 29.5 | ||||||||||||
| CLASS | F | 25C RATED | |||||||||||||||
| Caractéristique | Détail |
|---|
| Enclosure | TENV |
| Motor Type | S448B |
| Nameplate Speed | 2400 |
| Agency Approvals | CE, CSA, TUV, UR, WEEE |
| Base Indicator | Bracket Mounted |
| Dimensional Drawing Numbers | S4LYP124 |
| Frame | D165D |
| Frame Material | Exposed Laminations |
| Motor Lead Quantity/Wire Size | 3 @ 14 AWG |
| Motor Standards | IEC |
| Mounting Arrangement | F1 |
| Nameplate Output | 4.48KW |
| Shaft Rotation | Reversible |
