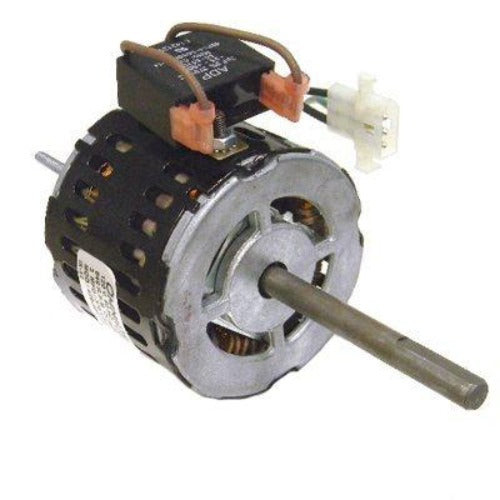

99080485, L300, 1/20 HP, 945 RPM, 120V, HLB3, L300EX,

99080485, BROAN,

Replaces Old Numbers:   026715133369, 99080485

• Horsepower :1/20
• Voltage :120
• Amps :1.20
• RPM :945
• Frequency :60 Hz
• Length :3.00"
• Enclosure :Open
• Shaft Dim. :3/8” x 2-7/8"”
• Type :Permanent Split Capacitor
• Diameter :3.3”
• Bearings :Ball
• Rotation :CCWSE
• Protector :Thermally Protected
• Service Factor :1.00
• Phase :1
• Ambient Temp. :40°C
• Capacitor Rating :5.0MFD-370V
• Feature(s) :Class 'B' Insulation, 4 Mtg. Studs O.S.E, Capacitor Included
• Weight (lbs.) :3.6
