TECHTOP  |  SKU : EMN-020452

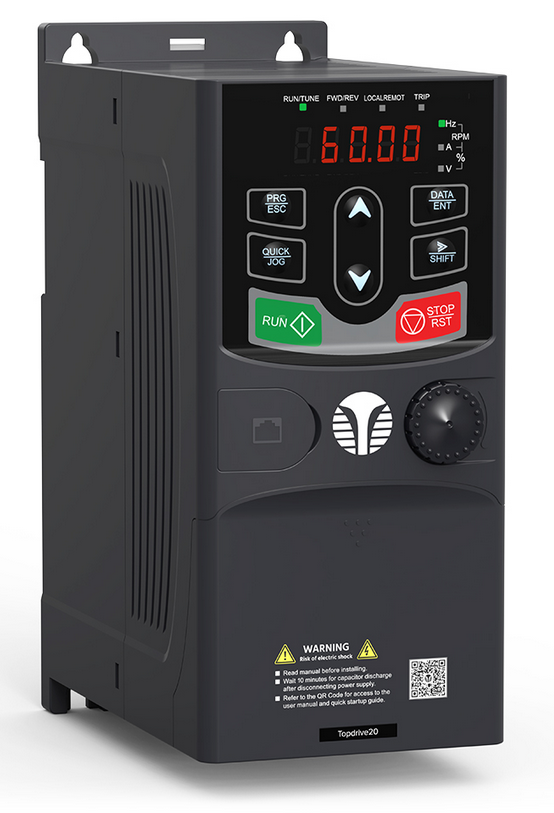

TD20-1R5G-4, AC Drives 2Hp, 4.2A, 460V 3AC INPUT/460V 3AC OUTPUT, FRAME 2, IP20

$516.23
shipping

Estimation des frais de livraison

Description

TD20-1R5G-4, AC Drives 2Hp, 4.2A, 460V 3AC INPUT/460V 3AC OUTPUT, FRAME 2, IP20

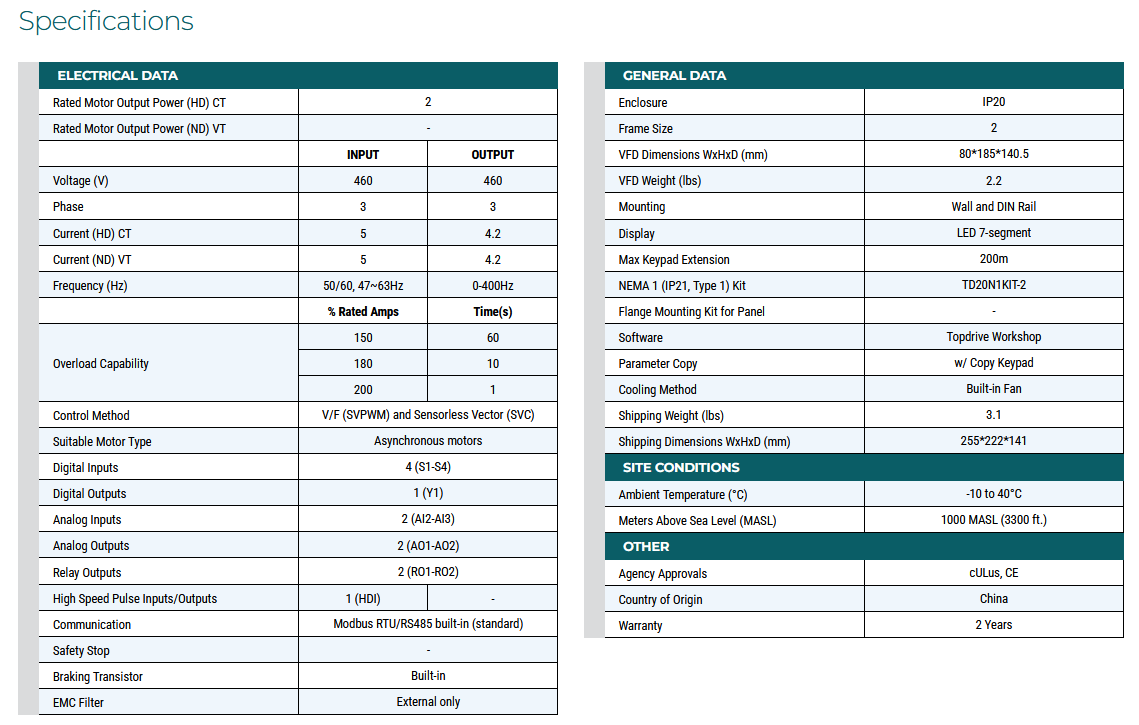

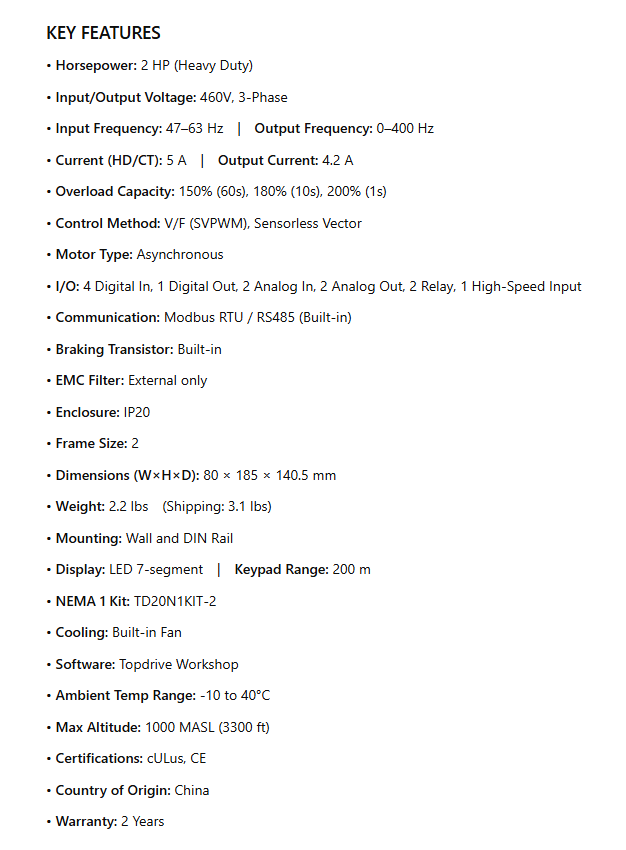

KEY FEATURES

• Horsepower: 2 HP (Heavy Duty)

• Input/Output Voltage: 460V, 3-Phase

• Input Frequency: 47–63 Hz | Output Frequency: 0–400 Hz

• Current (HD/CT): 5 A | Output Current: 4.2 A

• Overload Capacity: 150% (60s), 180% (10s), 200% (1s)

• Control Method: V/F (SVPWM), Sensorless Vector

• Motor Type: Asynchronous

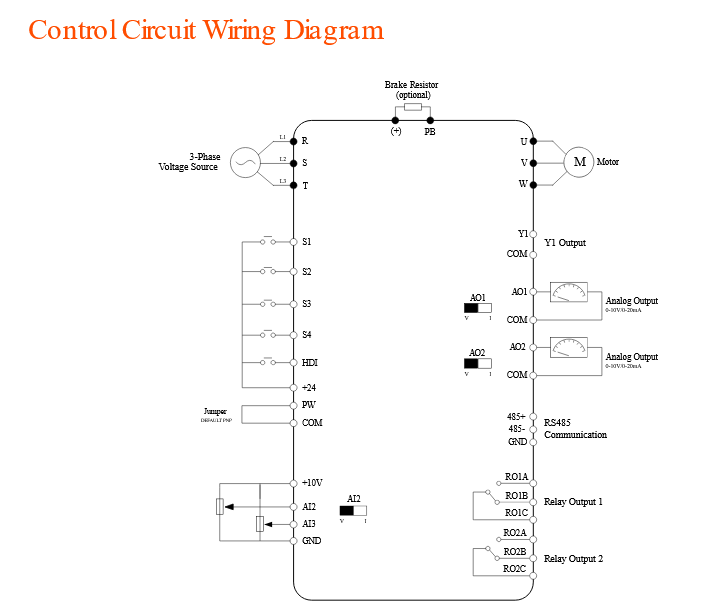

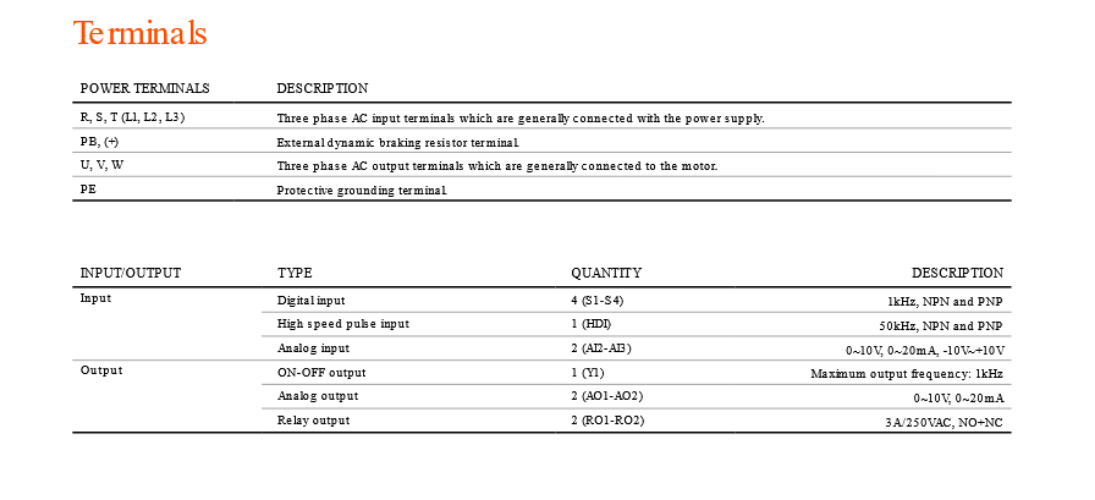

• I/O: 4 Digital In, 1 Digital Out, 2 Analog In, 2 Analog Out, 2 Relay, 1 High-Speed Input

• Communication: Modbus RTU / RS485 (Built-in)

• Braking Transistor: Built-in

• EMC Filter: External only

• Enclosure: IP20

• Frame Size: 2

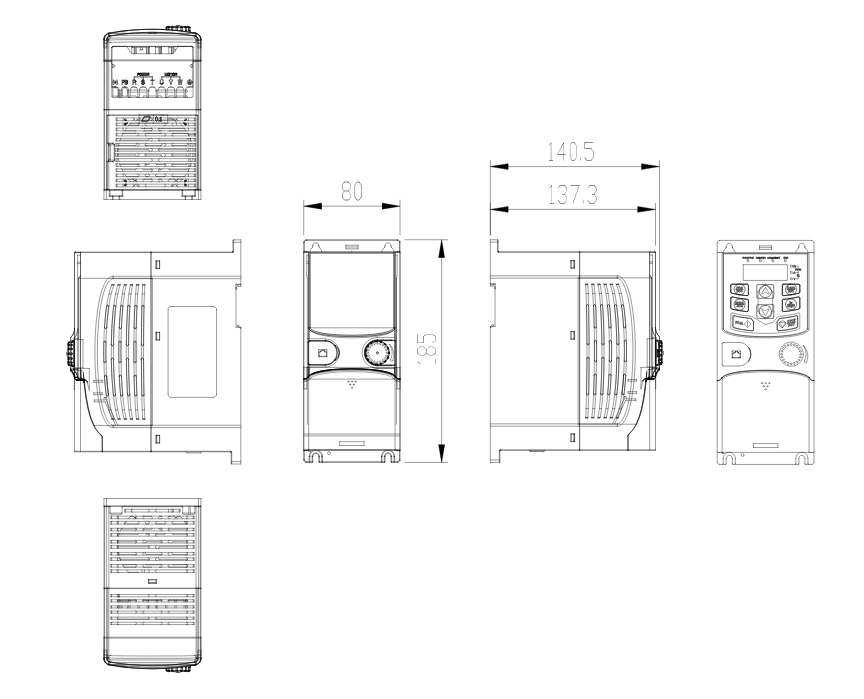

• Dimensions (W×H×D): 80 × 185 × 140.5 mm

• Weight: 2.2 lbs (Shipping: 3.1 lbs)

• Mounting: Wall and DIN Rail

• Display: LED 7-segment | Keypad Range: 200 m

• NEMA 1 Kit: TD20N1KIT-2

• Cooling: Built-in Fan

• Software: Topdrive Workshop

• Ambient Temp Range: -10 to 40°C

• Max Altitude: 1000 MASL (3300 ft)

• Certifications: cULus, CE

• Country of Origin: China

• Warranty: 2 Years

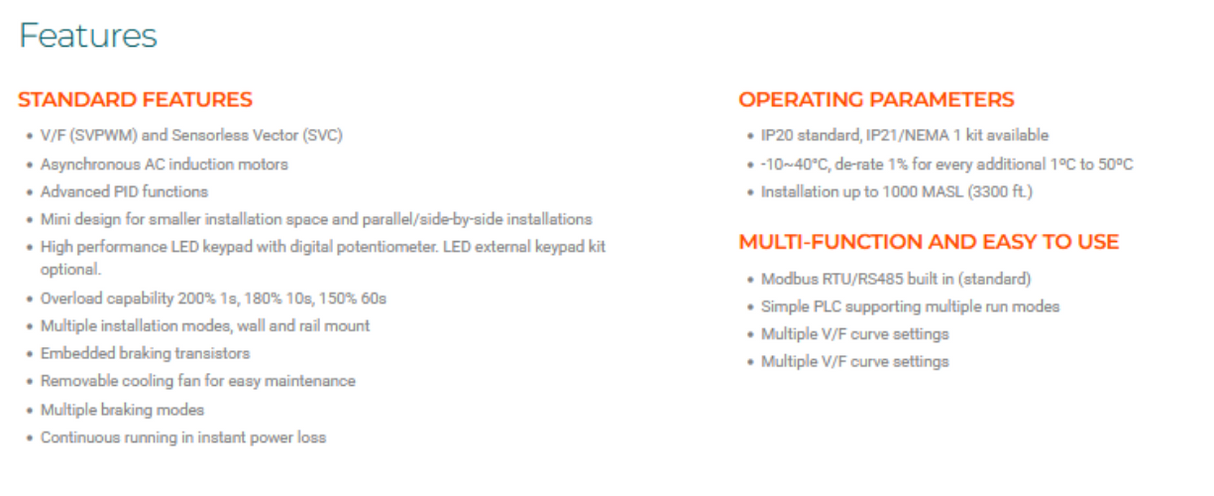

Features

STANDARD FEATURES
  • V/F (SVPWM) and Sensorless Vector (SVC)
  • Asynchronous AC induction motors
  • Advanced PID functions
  • Mini design for smaller installation space and parallel/side-by-side installations
  • High performance LED keypad with digital potentiometer. LED external keypad kit optional.
  • Overload capability 200% 1s, 180% 10s, 150% 60s
  • Multiple installation modes, wall and rail mount
  • Embedded braking transistors
  • Removable cooling fan for easy maintenance
  • Multiple braking modes
  • Continuous running in instant power loss
OPERATING PARAMETERS
  • IP20 standard, IP21/NEMA 1 kit available
  • -10~40°C, de-rate 1% for every additional 1ºC to 50ºC
  • Installation up to 1000 MASL (3300 ft.)

MULTI-FUNCTION AND EASY TO USE
  • Modbus RTU/RS485 built in (standard)
  • Simple PLC supporting multiple run modes
  • Multiple V/F curve settings
  • Multiple V/F curve settings
