MARATHON | SKU :
EMN-017389
X003,1/3Hp,1075 Rpm, 208-230 Volts,Fr:48,ODP,048A11O2042,EM3586,
Prix habituel
$295.74
Prix unitaire
/
Indisponible
X003,1/3Hp,1075 Rpm, 208-230 Volts,Fr:48,ODP,048A11O2042,EM3586, est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
shipping
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
X003,1/3Hp,1075 Rpm, 208-230 Volts,Fr:48,ODP,048A11O2042,EM3586,
Prix habituel
$295.74
Prix unitaire
/
Indisponible
Description
Description

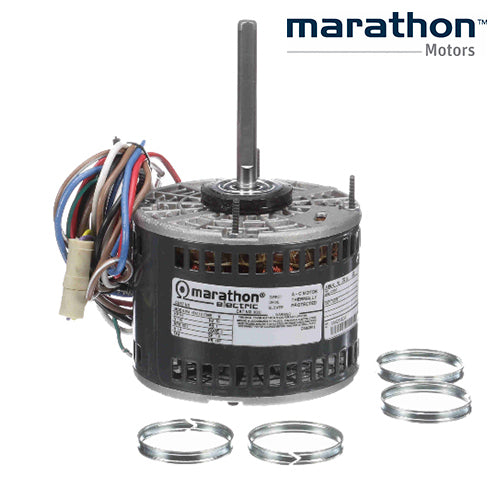

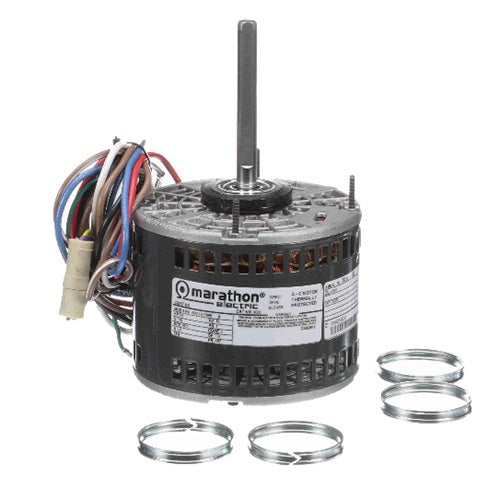

X003,Marathon,Model 048A11O2042,Century, EM3586, Rotom DD-3586,
Nameplate Specifications
| Phase: | 1 | Output HP: | 0.33 Hp |
| Output KW: | 0.25 kW | Voltage: | 208-230 V |
| Speed: | 1075 rpm | Service Factor: | 1 |
| Frame: | 48Z | Enclosure: | Open Air Over |
| Thermal Protection: | Automatic | Efficiency: | 59.5 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | 3.3-3.3 A | Power Factor: | 78.5 |
| Duty: | Continuous | Insulation Class: | B |
| Design Code: | NO DESIGN CODE | KVA Code: | E |
| Drive End Bearing Size: | 6203 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 10 |
| Number of Speeds: | 3 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Selective Counterclockwise |
| Resistance Main: | 0 Ohms | Mounting: | Resilient Ring - Extended Studs |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Single Special Extension | Overall Length: | 9.75 in |
| Frame Length: | 4.25 in | Shaft Diameter: | 0.500 in |
| Shaft Extension: | 4.06 in | Assembly/Box Mounting: | F1 ONLY |
General Specifications
| UPC: | 722856038555 | Weight: | 14.00 LB |
| Packaged Length: | 11.06 IN | Packaged Width: | 6.75 IN |
| Packaged Height: | 6.62 IN | HTC: | 8501.40.4040 |
| Country of Origin: | Mexico |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 4.70 | 51.60 | 971 | 1.00 | 0.33 | |||
| Locked-Rotor | 7.30 | 8.53 | 0 | 1.30 | 0.33 | |||
| Pull-Up | 7.30 | 6.56 | 25 | 1.30 | 0.33 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 125 % | 150 % |
| Current (Amps) | 1.88 | 1.91 | 1.98 | 2.11 | 2.31 | 2.56 | 2.96 |
| Rated Output (KW) | 0.18 | 0.23 | 0.29 | 0.35 | 0.42 | 0.50 | 0.59 |
| Efficiency (%) | 0.0 | 27.1 | 43.4 | 53.7 | 59.5 | 62.8 | 63.0 |
| Power Factor (%) | 40.9 | 52.6 | 63.2 | 71.9 | 78.5 | 84.1 | 87.3 |
| Speed (RPM) | 1,200 | 1,185 | 1,173 | 1,161 | 1,146 | 1,129 | 1,104 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 5.95 | 12.00 | 18.20 | 24.50 | 31.00 | 38.20 |
KEY FEATURES
- Automatic reset thermal(as noted) protector prevents overheating.
- Shielded ball bearings extend the service life of the motor.
- Class B insulation protects motor for a maximum temperature rating.
- Suitable for indoor or outdoor applications(as noted).
