TECHTOP  |  SKU : EMN-018687

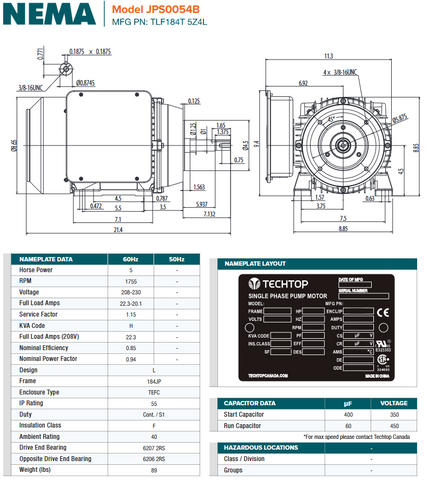

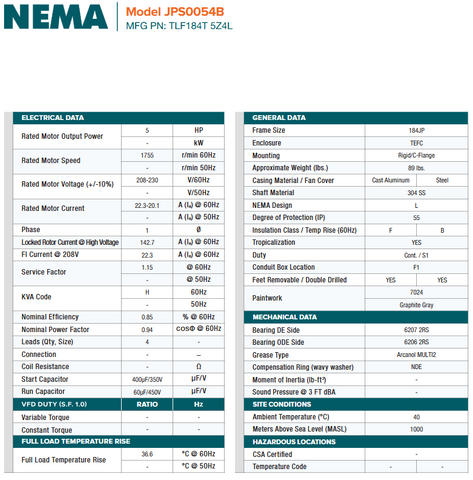

JPS0054B, 5Hp 1800RPM 208-230V 60HZ 184JP TEFC 1PH Alum Close Coupled Pump Motor

$1,635.17
shipping

Estimation des frais de livraison

Description

JPS0054B, 5Hp 1800RPM 208-230V 60HZ 184JP TEFC 1PH Alum Close Coupled Pump Motor

Category Details
ARD Features - Removable feet F1, F2, F0 field convertible
- 1.15 Service Factor (1 HP and larger)
- 18 Month warranty
- Cast aluminum construction with cast aluminum c-flanges
- Anti-microbial (tropicalization) on stator winding
- Compact lightweight design
- Dual oversized rubber sealed bearings
- AISI 304 grade stainless steel shaft
- Surface finish: Powder coated RAL7024 - Graphite Gray
- Stainless steel nameplate
- Corrosion resistant hardware
- Solid-state electronic switch, located inside motor terminal box
Operating Parameters - Continuous (S1) duty
- Ambient temperatures up to 40ºC
- Installation up to 1000 MASL (3300 ft.)
Ingress Protection - Standard enclosure protection: IP55
- Double lip oil seals on both drive and non-drive end bells
- Rubber shaft slinger on the drive end
- Terminal box with double gaskets
- DE/NDE end bell fitted with sintered brass one-way drain
Insulation - Class F Insulation
- Designed to Class B temperature rise
- Vacuum Impregnated
