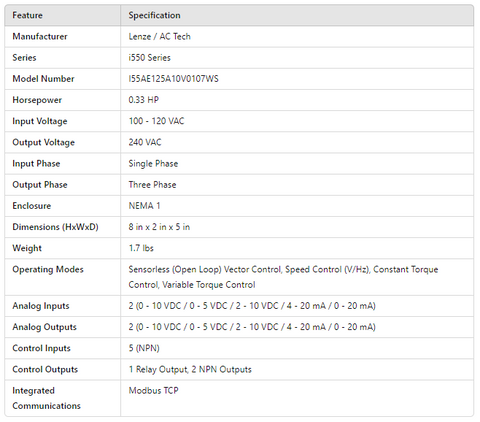

I55AE125A10V0107WS, i550-C INVERTER 0.33Hp 1PH(i/p) 120V / 230V 3PH(o/p) / 1.7A (o/p) / 0-599HZ(o/p) / STANDARD IO / MODBUS TCP/IP / IP20

Series Features Include:

• Slimline design from 2.36 x 5.12 in (60 mm x 130 mm): fits into every control cabinet
• Scalable functionality
• Ideal for simple speed/torque applications up to 3hp (see i550 for higher hp)
• Keypad module sold separately (I5MADK0000000S)
• Protection Rating: IP20
• Zero-clearance mounting (bookshelfing the drive/mounting side by side) with no derating!
• Modular system allows for various product configurations
• Ideal for pumps and fans, conveyors, formers, winders, tool and hoist drives
• 3 set up methods; keypad, smart keypad-app, EASY starter
• i510 available with no fieldbus (0S) or with integrated CANopen/Modbus-RTU (1S)
• 200% overload current for short term transient loads, 150% for 60 seconds
• DC-injection braking
• V/f controls (linear, quadratic, VFCeco)
• Sensorless vector control
• Digital inputs/outputs (5/1), analog inputs/outputs (2/1)
• This drive does not do positioning
• i510 supports PNP/Active High logic only (i550 supports both PNP/Active High and NPN/Active Low logic)
