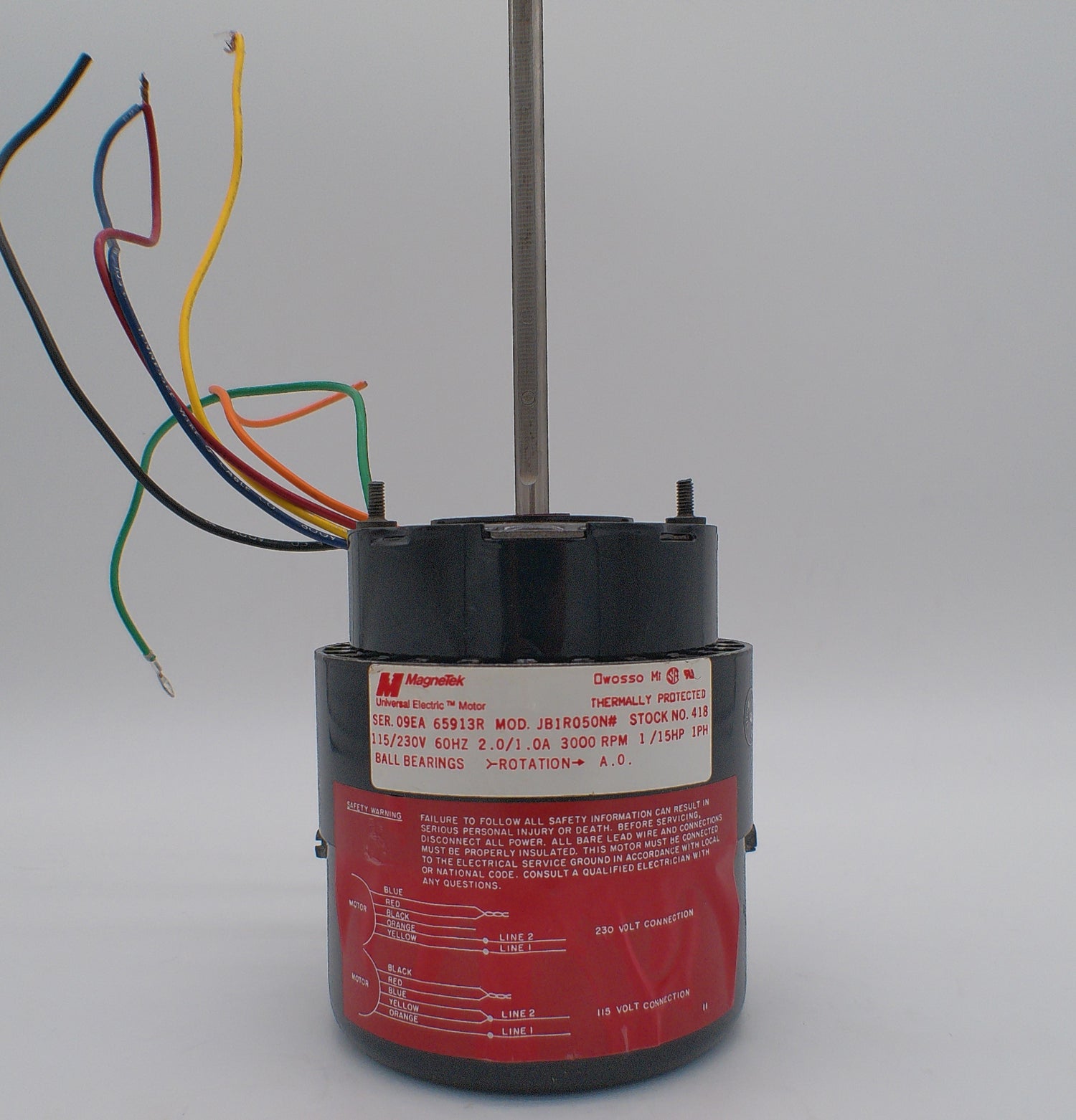

JB1R050N, Magnetek, 1/15Hp, 3000 Rpm, 115-230V, Frame:3.3, Tefc,

JB1R050N, Magnetek

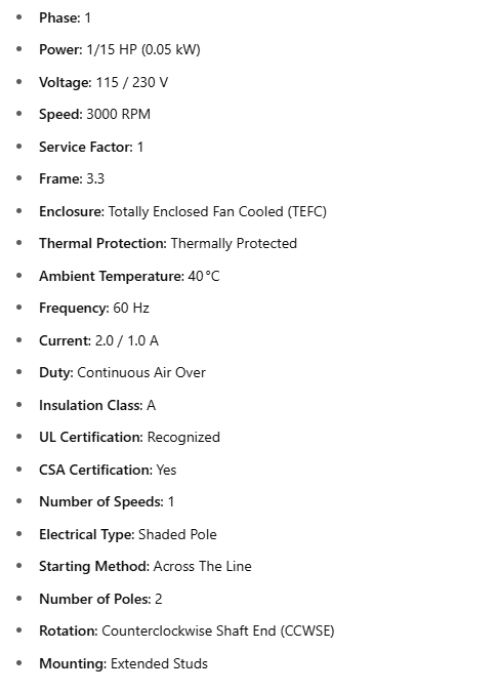

• Phase: 1

• Power: 1/15 HP (0.05 kW)

• Voltage: 115 / 230 V

• Speed: 3000 RPM

• Service Factor: 1

• Frame: 3.3

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Thermal Protection: Thermally Protected

• Ambient Temperature: 40 °C

• Frequency: 60 Hz

• Current: 2.0 / 1.0 A

• Duty: Continuous Air Over

• Insulation Class: A

• UL Certification: Recognized

• CSA Certification: Yes

• Number of Speeds: 1

• Electrical Type: Shaded Pole

• Starting Method: Across The Line

• Number of Poles: 2

• Rotation: Counterclockwise Shaft End (CCWSE)

• Mounting: Extended Studs
