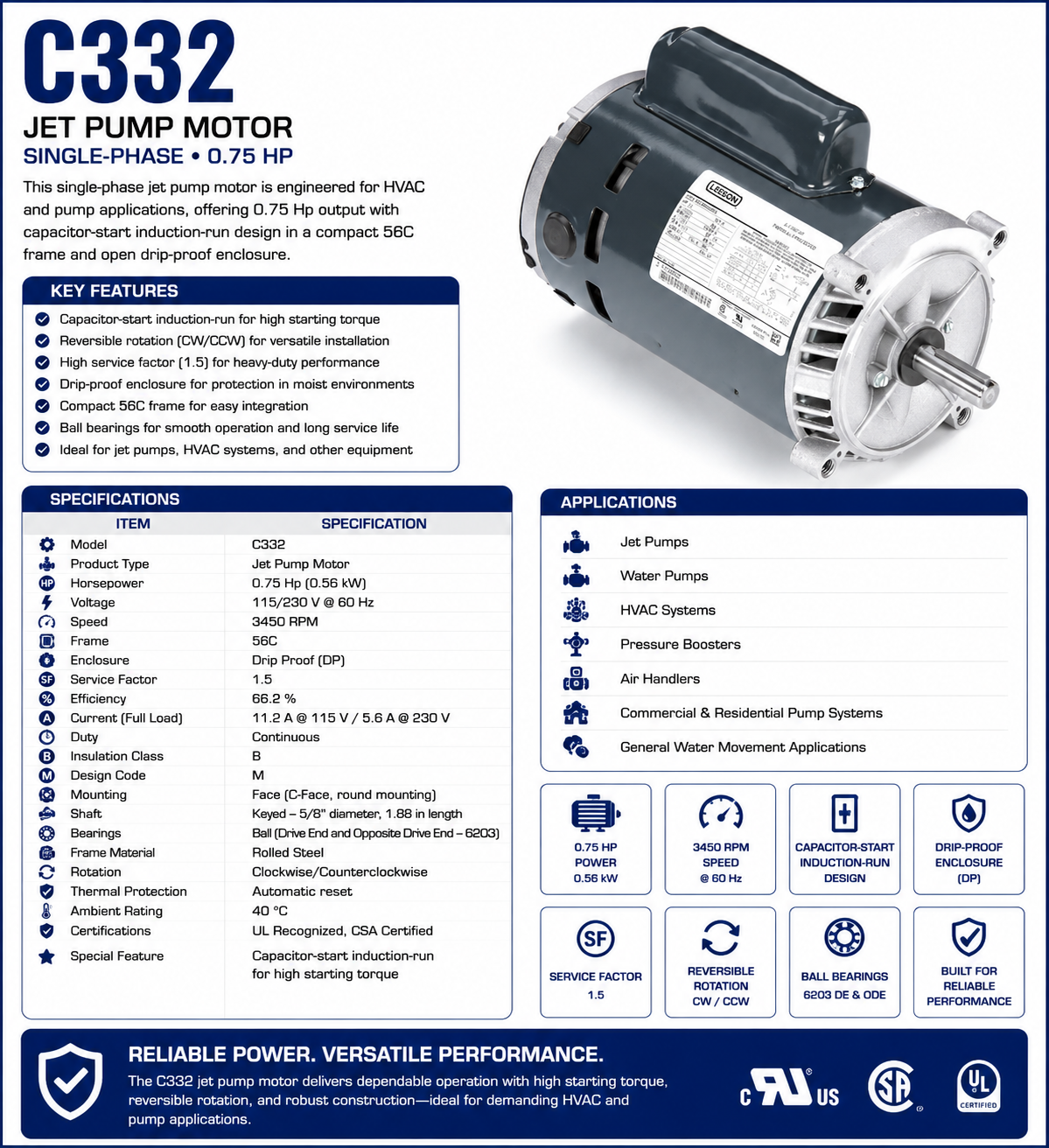

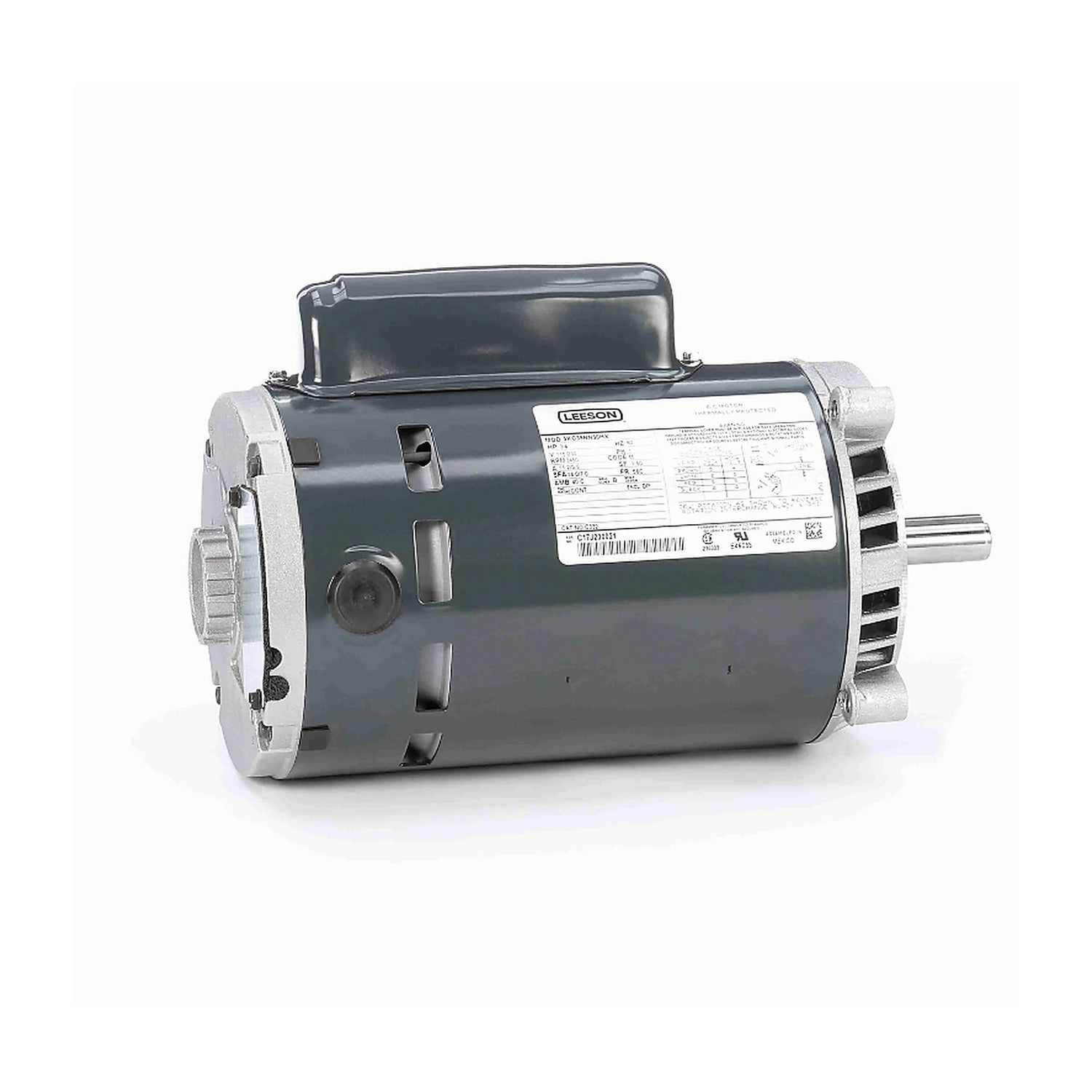

C332, 0.75 Hp, 3450 RPM, 115/230 V, 1 Ph, 60 Hz, DP, Frame 56C, 5KC39NN50X

This single-phase jet pump motor is engineered for HVAC and pump applications, offering 0.75 Hp output with capacitor-start induction-run design in a compact 56C frame and open drip-proof enclosure.

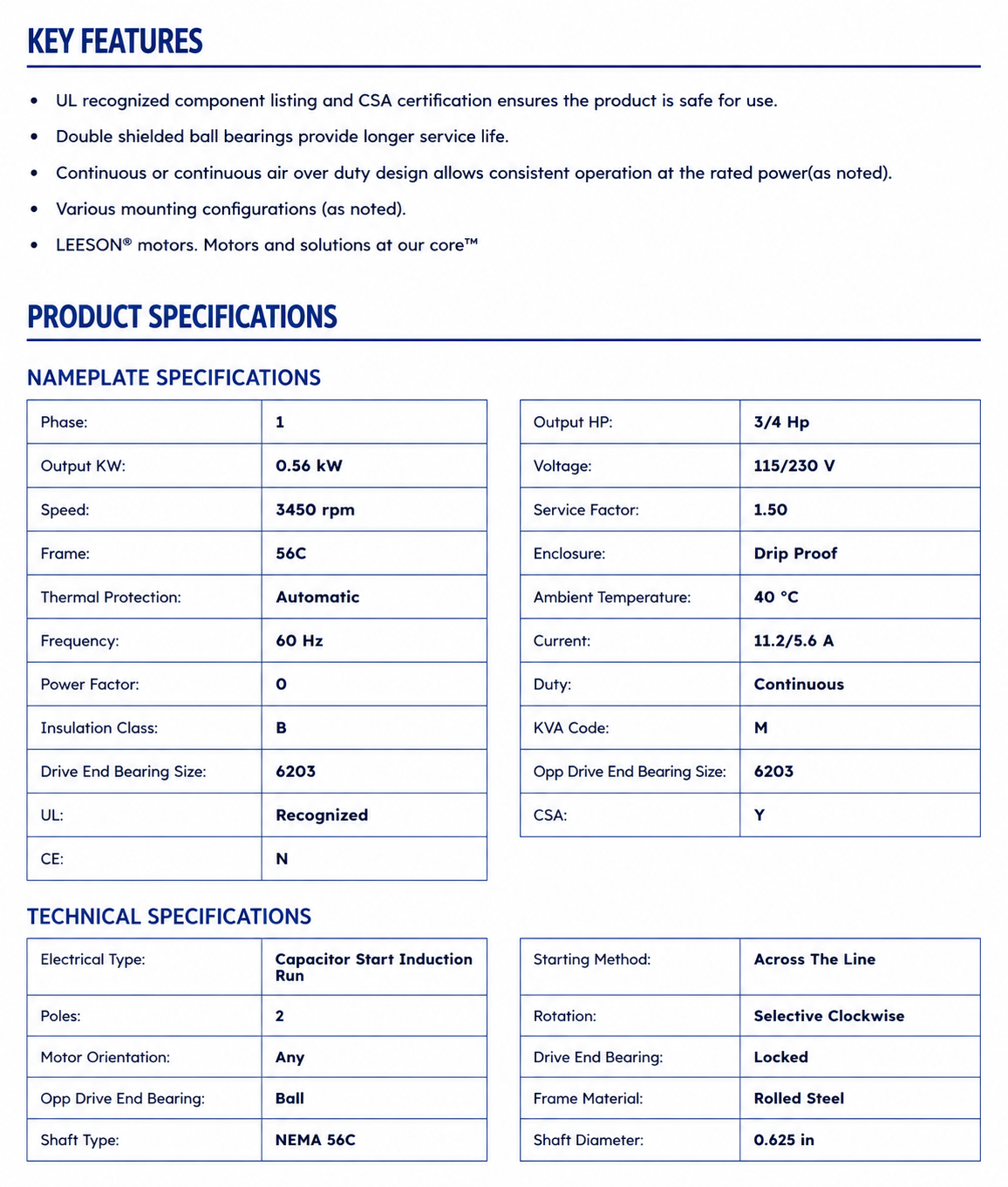

KEY FEATURES

• Model: C332

• Product Type: Jet Pump Motor

• Horsepower: 0.75 Hp (0.56 kW)

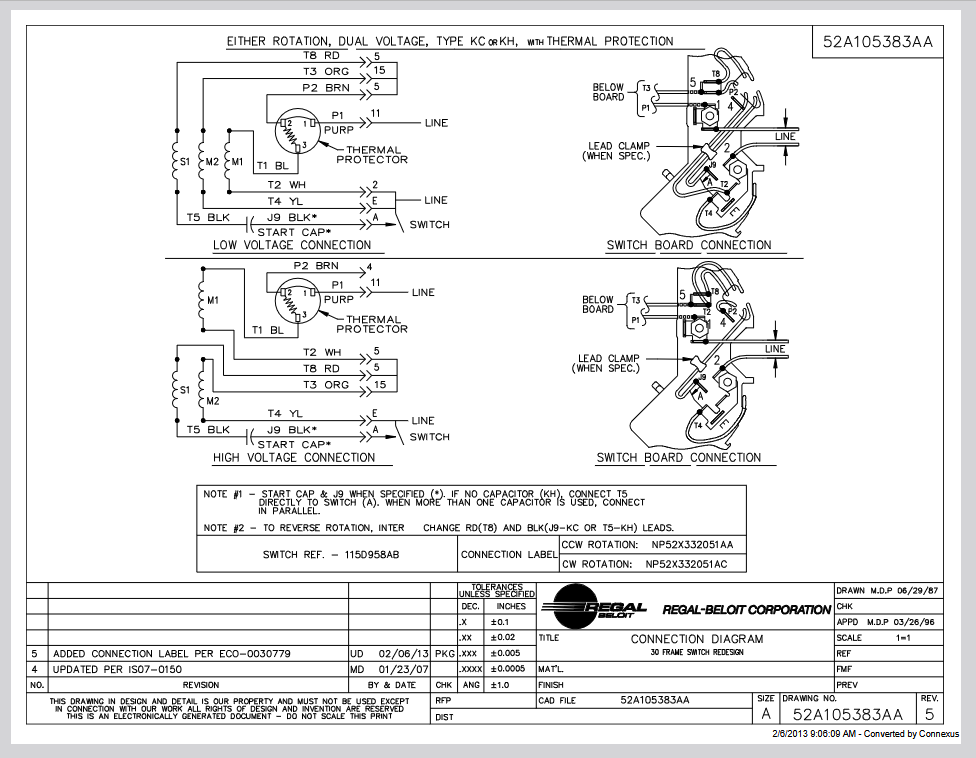

• Voltage: 115/230 V @ 60 Hz

• Speed: 3450 RPM

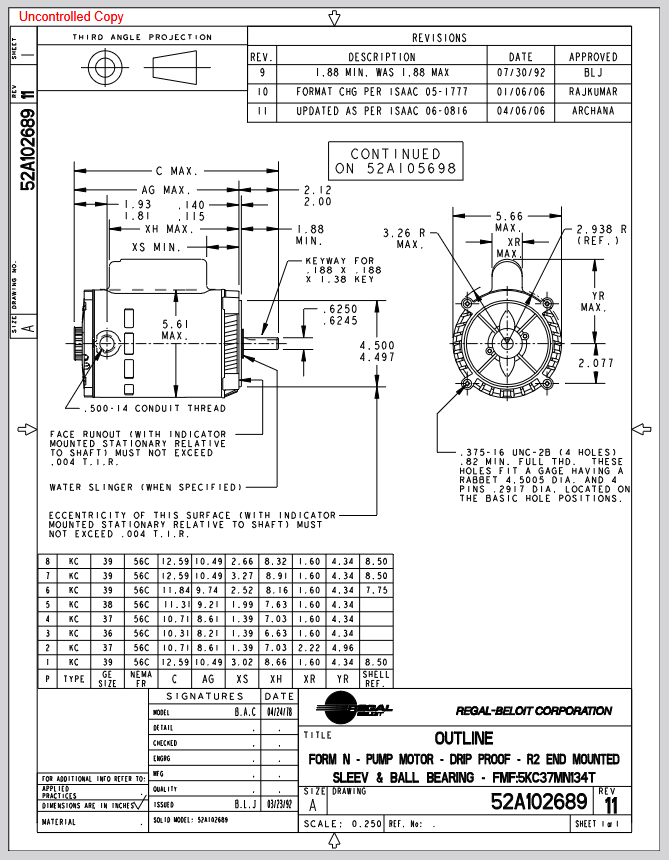

• Frame: 56C

• Enclosure: Drip Proof (DP)

• Service Factor: 1.5

• Efficiency: 66.2 %

• Current: 11.2 A @ 115 V / 5.6 A @ 230 V

• Duty: Continuous

• Insulation Class: B

• Design Code: M

• Mounting: Face (C‑Face, round mounting)

• Shaft: Keyed – 5/8" diameter, 1.88 in length

• Bearings: Ball (Drive End and Opposite Drive End – 6203)

• Frame Material: Rolled Steel

• Rotation: Clockwise/Counterclockwise

• Thermal Protection: Automatic reset

• Ambient Rating: 40 °C

• Certifications: UL Recognized, CSA Certified

• Special Feature: Capacitor‑start induction‑run for high starting torque

This motor's high service factor and reversible rotation capability make it versatile for demanding pump and HVAC applications, while its compact 56C frame and drip-proof enclosure support easy integration and reliable operation.
